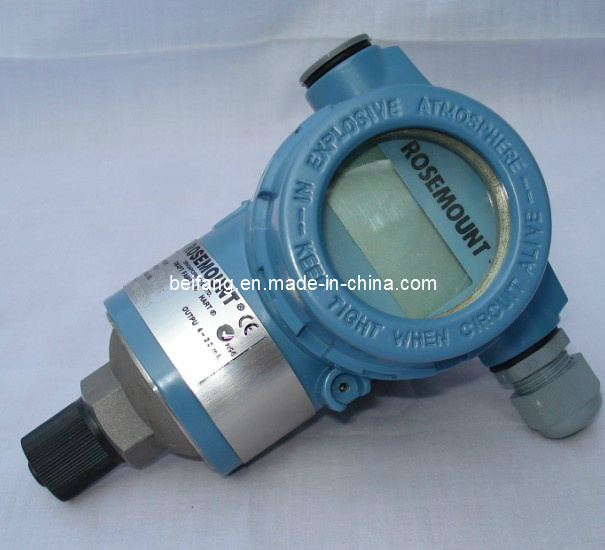

Pressure Transmitter

Output: 4-20mA / Hart
Range: -100PA to 40Mpa
Protection class: IP67, IP68

3051 series is a digital pressure transmitter designed for industrial pressure measurement applications. The 3051 offer Configurations for Differential, absolute pressure and vacuum liquid-Level measurements including integrated solutions for pressure, level and flow.

Features
1. Improved performance, increased accuracy, greater stability, Intelligent
2. Direct frequency signal output
3. Small stainless steel flange is optional, easy to be mounted
4. Process connection compatible with other products
5. Improved cold and hot stability by H alloy sheathe
6. Standard 4-20mA output, no need manipulator

Item	Pressure transmitter
Process Fluid	Liquid, gas, vapor
Measuring Range	-100Pa to 40Mpa
Measuring Accuracy	± 0.1% to± 0.25% FS
Linear	± 0.05%
Ambient temperature	-40C---90C
Humidity limits	0-95%RH relative humidity
Power Supply	12V to 45VDC, 24VDC as standard
Output Signal	4-20mA
Communication protocol	Hart
Display	LCD
Process Connections	1/2NPT, 1/4NPT, M20*1.5
Protection Class	IP67
Intrinsically Safe	EEx ia IIC T5
Explosion proof	Ex D IIC T5
Housing material	Alumunium alloy

Prod Model:	3351
Measuring Range:	-100PA to 40MPa
Power Supply:	24VDC
Temperature:	-30c~+90c
Accuracy:	0.05%
