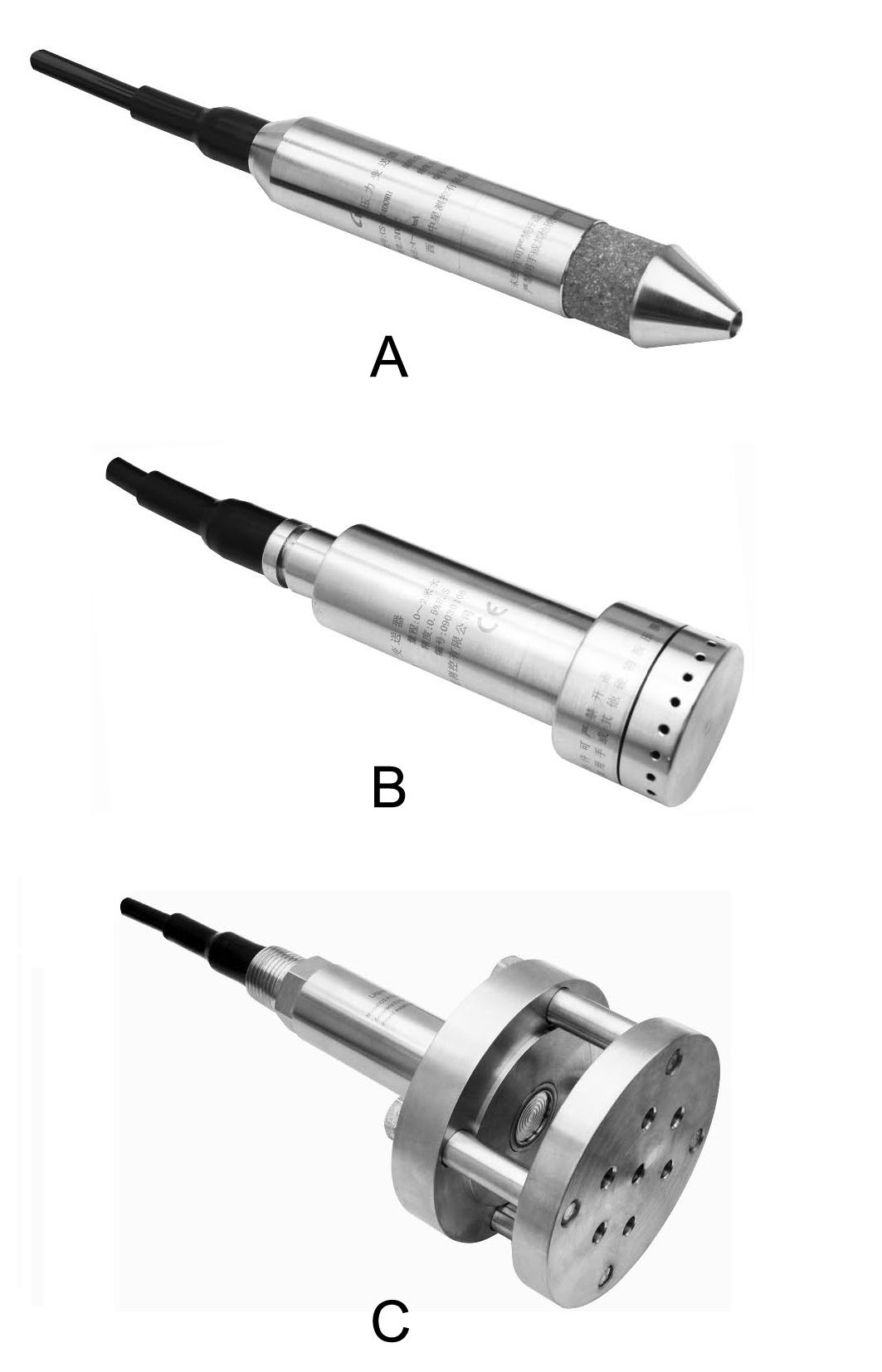

Pressure Transmitters Pressure Transducer Deep Well Level Measurement

Name: Pressure Transmitters Pressure Transducer Deep Well Level Measurement
Brand: all-electronics-online.com
SKU: 681075382
Availability: InStock
Rating: 4.4 (73 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

The level transmitters are approved with intrinsic safety certificate, explosion proof certificate and CE certificate.

Applications:
Deep well level measurement
Hydraulic monitoring in rivers and sea
Sewage treatment
Muddy liquid level measurement
Reservoir level measurement

Specifications:
Service: Compatible liquids.
Wetted Materials: 316L SS, Buna-N, cable: ETFE or polyurethane.
Accuracy: ± 0.25% full scale (includes linearity, hysteresis, and repeatability).
Temperature Limit: - 40'C to 85'C
Compensated Temperature Range: - 10'Cto 70'C
Thermal Effect: +-0.02% FS/'F.
Pressure Limit: 2X full scale.
Power Requirement: 10 to 36 VDC
Output Signal: 4 to 20 mA DC, two wire.
Response Time: 10 msec.

Prod Model:	level transmitters
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Service:	Compatible Liquids
Temperature Limit:	- 40'c to 85'c
Compensated Temperature Range:	- 10'c to 70'c
Pressure Limit:	2X Full Scale

Hunan Leading Science & Technology Development Co., Ltd is the professional manufacturer of intelligent pump control system applied for monitoring and protecting of pumps in home and industry use;

Leading Science & Technology has always been a leader in the production, research & development of intelligent pump control system and relative pump control products. Million of our prime products have been sold on the market for stable quality and reasonable price.

Leading Science & Technology has established stable relations with many pump producers and distributors from China and overseas.

Till now, Leading Science & Technology we have passed CE, ISO9001: 2008 certificate.
