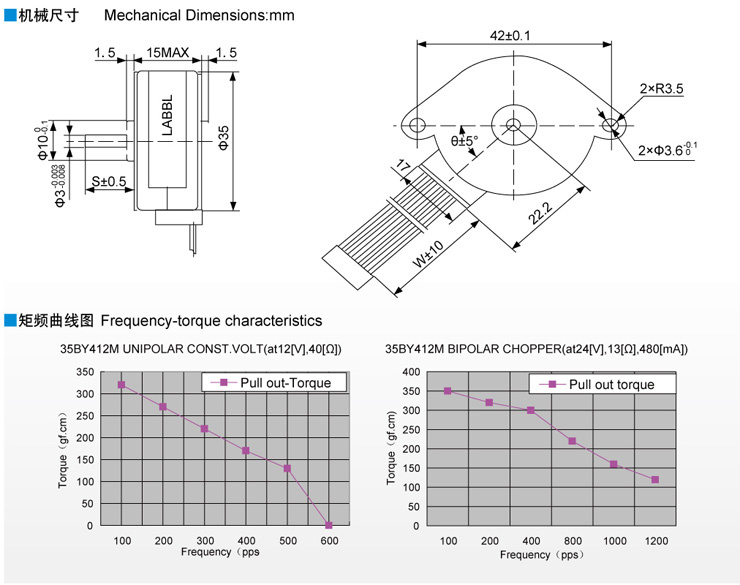

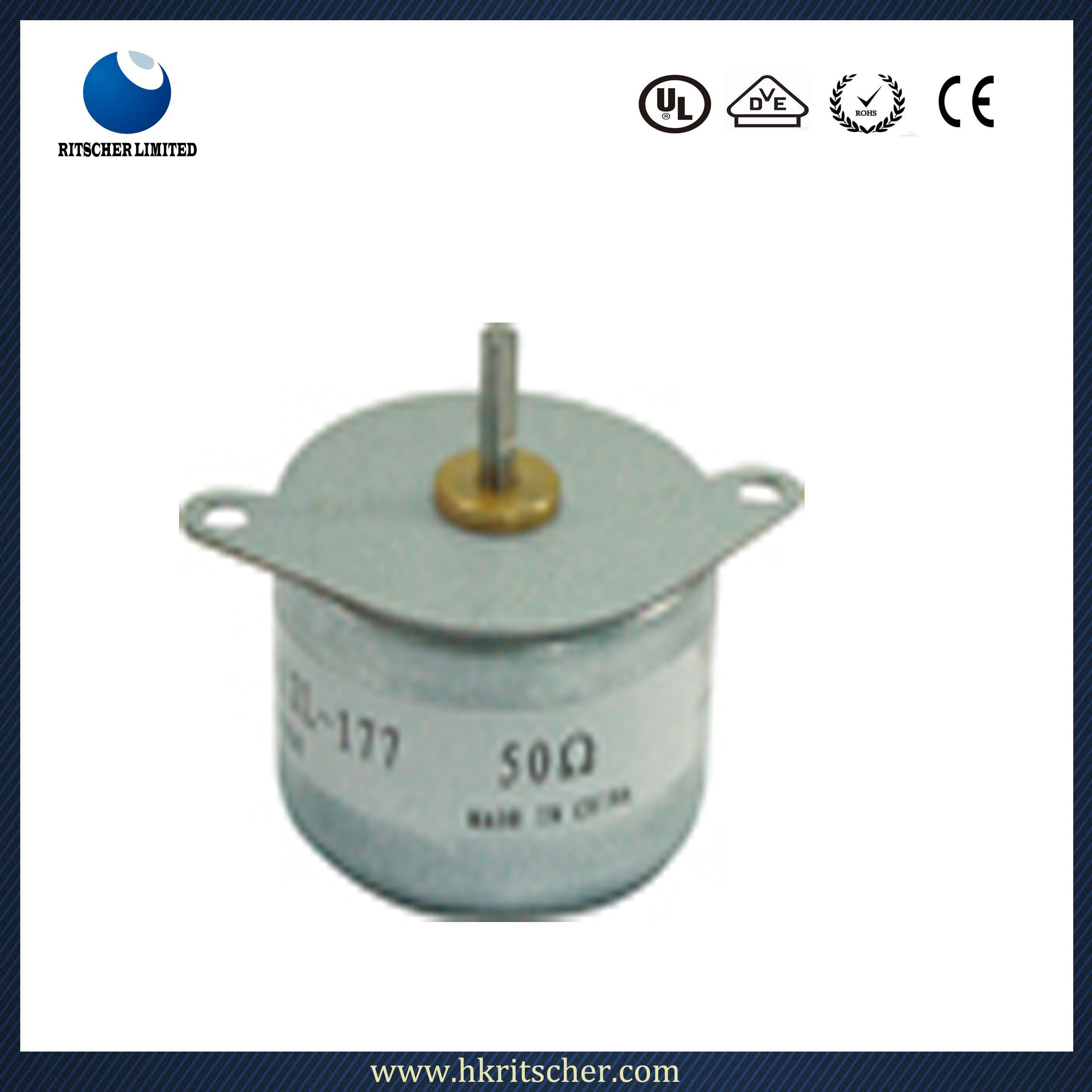

Printer 35mm Permanent Magnet Customized Stepping Motor for Scanner
| Price: |
US $ 0.25-8.6/Piece |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
35BYJ |
| Step Angle Accuracy: |
5% (Full Step, No Load) |
| Resistance Accuracy: |
Industrial, Universal |
| Temperature Rise: |
80 C |
| Ambient Temperature: |
-40 C~+50 C |
| Insulation Resistance: |
100m Min., 500VDC |
| Dielectric Strength: |
600VAC, 1s, 1mA |
| Shaft Radial 2100rpmplay: |
0.06mmmax (300g-Load) |
| Input Power: |
2W |
| Shaft Axial Play: |
0.08mmmax (300g-Load) |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Operate Mode: |
Three Phase Double Beat |
| Type: |
Magnetic-Electric |
| Brand: |
Ritscher |
Product Description
Product Features
Imported parts, longer life;
Low vibration, small noise;
The same volume, greater output torque;
Higher speed, lower temperature;
Item Parameter Remarks
Precision step angle 1.8 ° / Step
Can be customized according to customer requirements 0.9 °, 3 °, 3.6 °, 0.045 °,
0.15 °, 0.18 ° step angle
Step angle accuracy ± 0.09 ° (no load step)
Resistance accuracy ± 10% according to customer requirements agreed smaller tolerance range
Inductance Accuracy ± 20%
Allowable temperature rise <80 ºC (rated current, two-phase power) can be customized according to customer requirements more low temperature or higher temperature
Ambient temperature -20 ºC ~ +50 ºC (no freezing)
Protection class IP43 IP54 or IP65 can be customized according to customer requirements
Medium Environment No corrosive gas or dust. Not directly in contact with water, oil and other liquid requirements can be customized higher
Environmental humidity below 85% below 40 ºC; 57% below below 50 ºC (no condensation)
Insulation Class B (+ 130 ºC)
Insulation withstand voltage 100MΩ Min. DC 500V
Insulation resistance DC 500V Measured with a megger more than 100Ω
Radial runout 0.02 Max. (450 gf)
Axial Clearance 0.08 Max. (450gf)
Axial displacement of 0.075mm.Max 10N load in the shaft end
Radial displacement of 0.025mm.Max in the axial application of 5N load | Model NO. | Holding Torque | Current | Resistance | Inductance | Rotor Inertia | Length | Weight | Driver |
| Single out shaft | Double out shaft | N·m | A | Ω | mH | g/cm2 | mm | Kg | Model |
| 08HD3005D4 | 08HD3005D4-2 | 0.021 | 0.5 | 8 | 3.8 | 1.6 | 30 | 0.05 | ASD422R-plus |
| 08HD4006D4 | 08HD4006D4-2 | 0.036 | 0.6 | 6.5 | 3.2 | 2.9 | 40 | 0.07 | ASD422R-plus |
ABOUT US

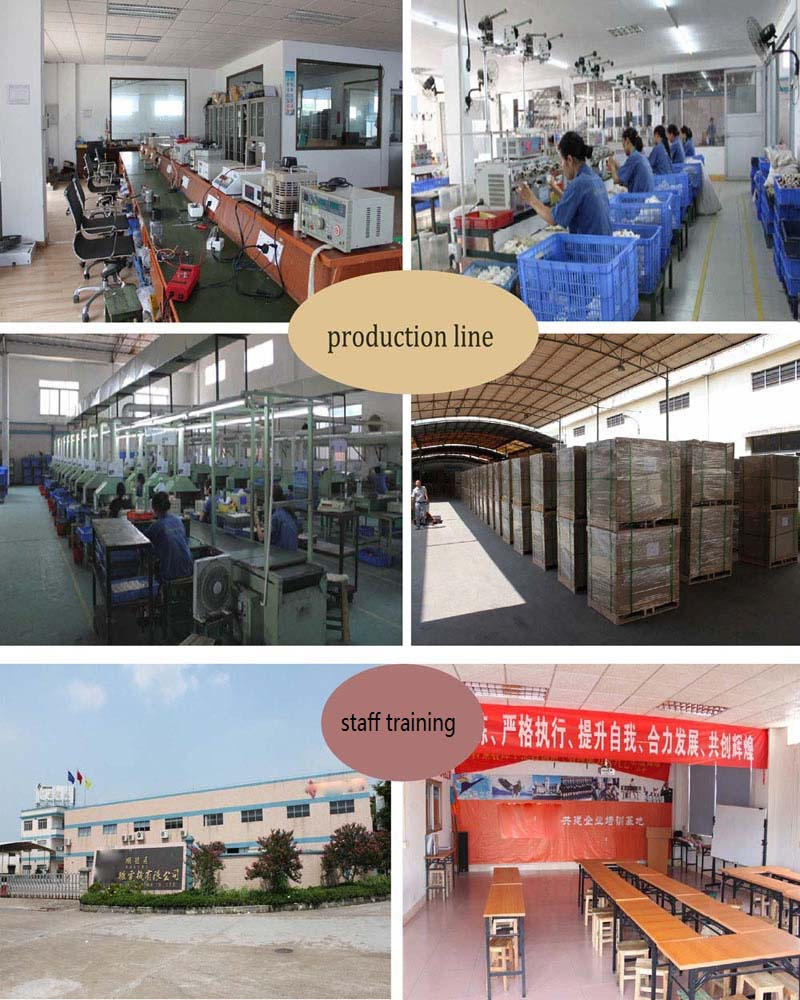

Ritscher group was established in 2006.we always focus on micro-motors for household and industrial electrical appliance.Currently, we have professional micro-motor factories separatlly located in Guangdong & Zhejiang province.It has 50,000 square meters plants and more than 500 employees, annual output is 5 million pcs and has 10 million pcs annual producing capacity.After years development,we built a great reputation in the domestic and oversea market and have the trust from our global customers.
We started our business from shaded pole motors, after 10 years development,our products is enlarged to BLDC motors ,capacitor motors ,synchronous motors,stepping motors,servo motors, and PMDC motors.Our products are widely used for making refrigerators, freezers, micro-wave ovens, air warmers, air exhausters, ventilators,ovens, air filter, massage machines and many other equipments.
To design the lastest technology motors and meet our customers requirments,we have the very capable R&D team,to ensure our products quality ,we have very strict manage system for our production department & QC department,to make our cost lower,we have the very professional purchase department, We dedicate to make every details better than we could do.
To offer quick and better service to our customers in Australia and New Zeland,we set up branch office in Australia since 2017 with exprienced consultant to support the business ,which will bring more customers to get know of us.
We will keep doing our job,move forward step by step to make our business area wider and brighter.
Our company FAQ for you
(1) Q: What kind motors you can provide?
A:For now,we mainly provide Kitchen Hood Motor,DC Motor,Gear Motor,Fan Motor Refrigerator Motor,Hair Dryer Motor Blender Motor Mixer Motor,
Shade Pole Motor,Capacitor Motor,BLDC Motor PMDC Motor,Synchronous Motor,Stepping Motor etc.
(2) Q: Is it possible to visit your factory
A: Sure. But please kindly keep us posted a few days in advance. We need to check our
schedule to see if we are available then.
(3) Q: Can I get some samples
A: It depends. If only a few samples for personal use or replacement, I am afraid it will
be difficult for us to provide, because all of our motors are custom made and no stock
available if there is no further needs. If just sample testing before the official order and
our MOQ, price and other terms are acceptable, we'd love to provide samples.
(4) Q: Is there a MOQ for your motors?
A: Yes. The MOQ is between 1000~10,000pcs for different models after sample approval.
But it's also okay for us to accept smaller lots like a few dozens, hundreds or thousands
For the initial 3 orders after sample approval.For samples, there is no MOQ requirement. But the less the better (like no more than 5pcs) on condition that the quantity is enough in case any changes needed after initial testing.
Ritscher group was established in 2006. We always focus on micro-motors for household and industrial electrical appliance. Currently, we have professional micro-motor factories separatlly located in Guangdong & Zhejiang province. It has 50, 000 square meters plants and more than 500 employees, annual output is 5 million PCS and has 10 million PCS annual producing capacity. After years development, we built a great reputation in the domestic and oversea market and have the trust from our global customers.
We started our business from shaded pole motors, after 10 years development, our products is enlarged to BLDC motors, capacitor motors, synchronous motors, stepping motors, servo motors, and PMDC motors. Our products are widely used for making refrigerators, freezers, micro-wave ovens, air warmers, air exhausters, ventilators, ovens, air filter, massage machines and many other equipments.
To design the latest technology motors and meet our customers requirments, we have the very capable R&D team, to ensure our products quality, we have very strict manage system for our production department & QC department, to make our cost lower, we have the very professional purchase department, We dedicate to make every details better than we could do.
To offer quick and better service to our customers in Australia and New Zeland, we set up branch office in Australia since 2017 with exprienced consultant to support the business, which will bring more customers to get know of us.
We will keep doing our job, move forward step by step to make our business area wider and brighter.
