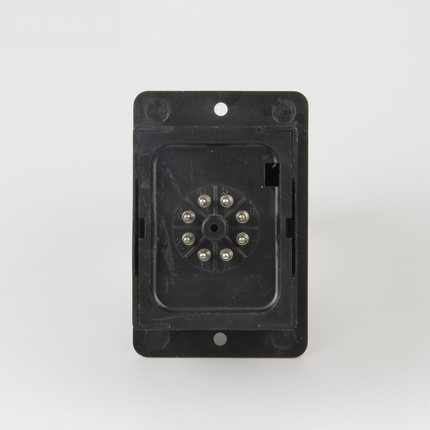

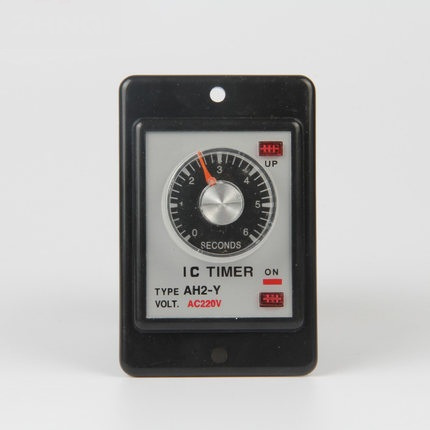

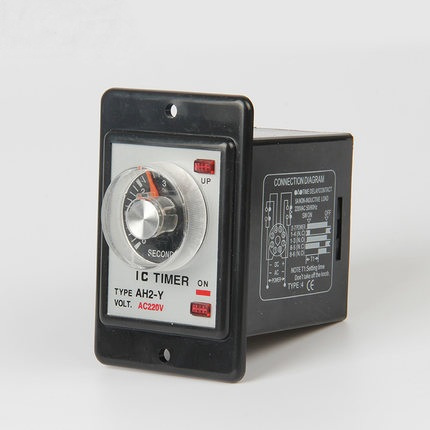

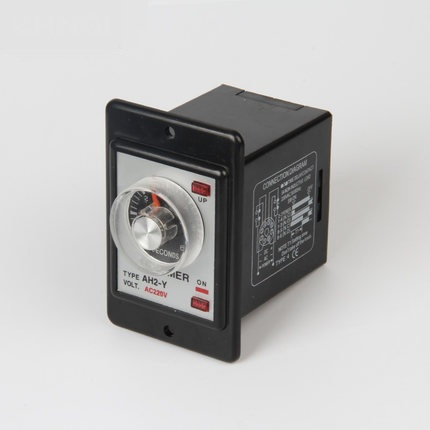

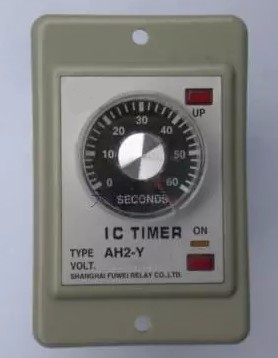

Professional Factory Ah2-Y 220V Multi Range Performance Adjustable Electric Timer Delay Relay

Name: Professional Factory Ah2-Y 220V Multi Range Performance Adjustable Electric Timer Delay Relay
Brand: all-electronics-online.com
SKU: 834101555
Availability: InStock
Rating: 5 (104 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Ah2-Y

Product Description

Specifications

Time relay ASTP AH2 timer
best replacement for Omron Finder time delay relay

Classification			Timer	Timer		Timer	Timer
Specification Model			ASTP-N	ASTP-Y		AH2-N	AH2-Y
Dimension			61H × 49W × 70D	88H × 58W × 68D		61H × 49W × 70D	88H × 58W × 68D
Mounting & Socket		Surface(-N)	PF083A PS-08	PF083A		PF083A PS-08	PF083A
		Flush(-Y)	P2CF-08	US-08 P3G-08		P2CF-08	US-08 P3G-08
Full Timing Range			SEC: 1,3,6,10,12,30,60 MIN: 3,6,10,12,30,60 HR: 3,6,10,12,24			SEC: 1,3,6,12,30,60 MIN: 3,6,12,30,60 HR: 3,6,12,24
Rated Voltage (V)			AC: 12,24,110,220,240 50/60Hz DC: 12,24			AC: 12,24,110,220,240 50/60Hz DC: 12,24
Indicator Operating			Time Operating			ON-UP Two Indicator Lamp
O/P Contact	Model		ASTP-N1/ ASTP-Y1	ASTP-N2/ ASTP-Y2	ASTP-N/ ASTP-Y	AH2-N1/ AH2-Y1		AH2-N2/ AH2-Y2	AH2-N/ AH2-Y
	Time Limit 1C		5A		5A	5A			5A
	Time Limit 2C			5A				5A
	Instantaneous 1C				5A				5A
Life	Mechanical		5 × 106 Times			5 × 106 Times
	Electrical		105 Times			105 Times
Accuracy	Repeat Error		±1% max			±1% max
	Setting Error		±10% max			±10% max
	Voltage Error		±1% max			±1% max
	Temp Error		±2% max			±2% max
Reset Time			0.1 sec max			0.1 sec max
Consumed Power			3VA			3VA
Ambient temperature			-10oC~+55oC			-10oC~+55oC
Ambient Huminity			48~85% RH			48~85% RH
Weight			220g			220g

ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
