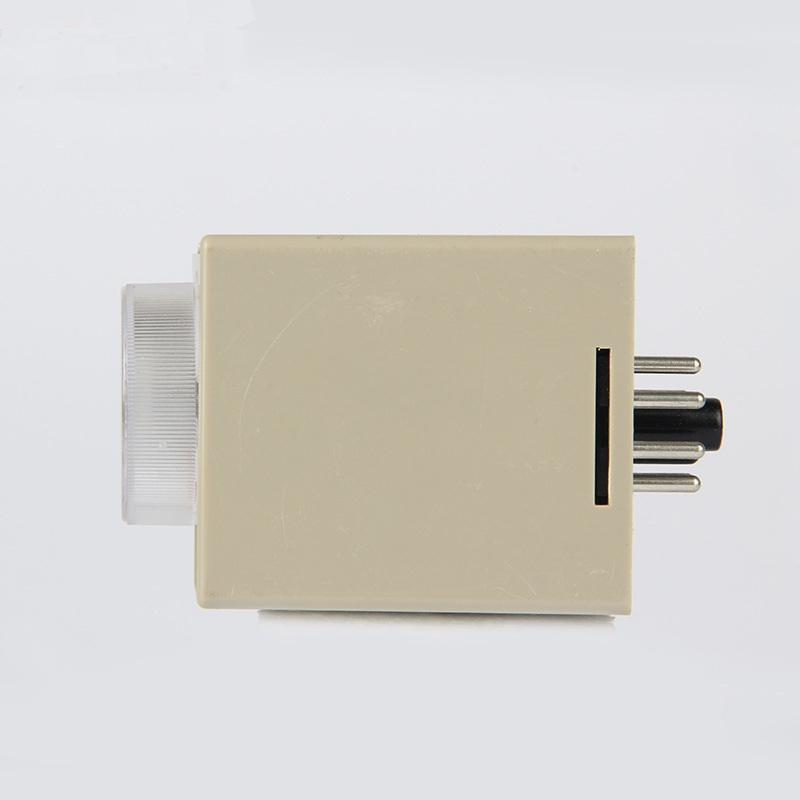

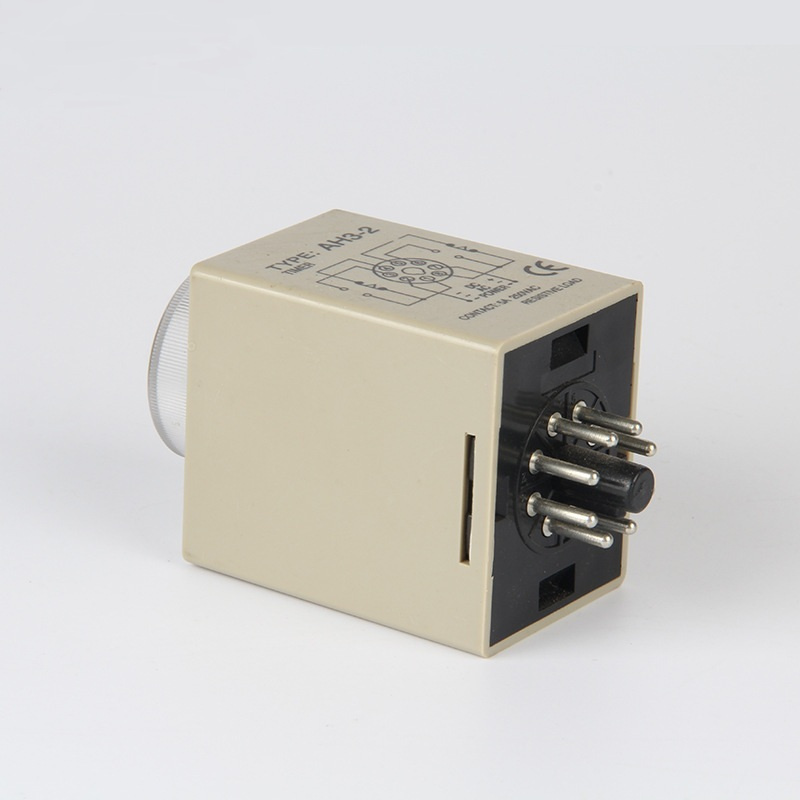

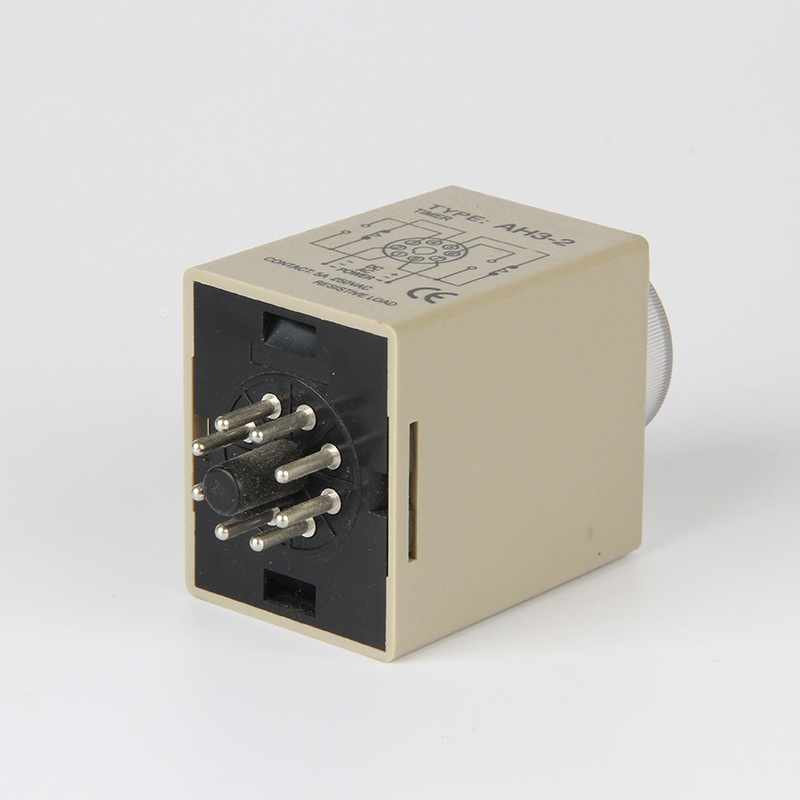

Professional Factory Ah3-2 Multi Range Time Delay Relay, Power Failure Relay

Name: Professional Factory Ah3-2 Multi Range Time Delay Relay, Power Failure Relay
Brand: all-electronics-online.com
SKU: 833668185
Availability: InStock
Rating: 5 (60 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Description:
- Using CMOS IC lower power consumption high reliability and stability
- 5(A, B, C, D, E)timing series available (Each timing series the product is individually customized)
(AH3-2-A,AH3-2-B,AH3-2-C,AH3-2-D,AH3-2-E)
- 20 different time ranges from 0.1 sec to 30 hrs available (Each time period specifications have 4 different time ranges )
- Power Supply
Non universal voltage: AC(V) 12 ,24, 110, 220 ,240, 380 50/60Hz,DC(V) 12, 24 .
- Output Contacts rated 5A at 120/240 VAC and 30 VDC, resistive load.

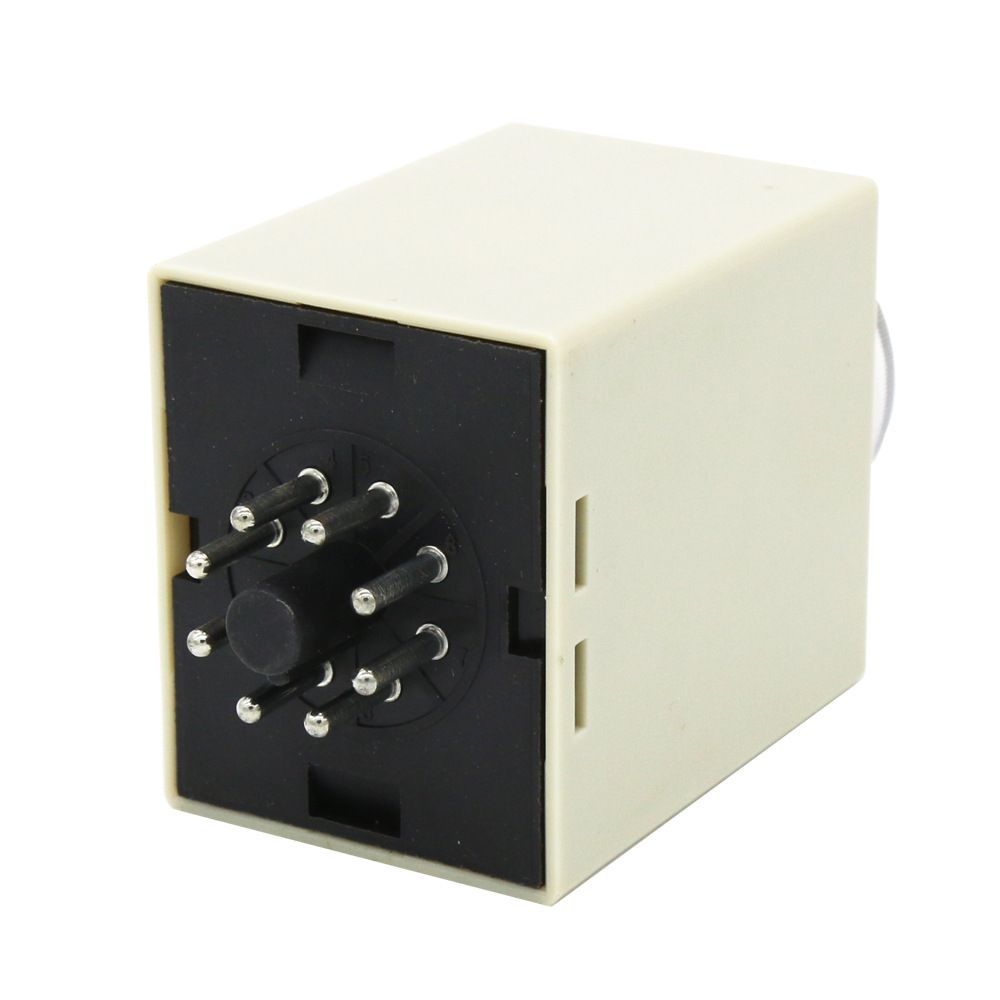

- Socket mounted with a PF083A Socket
- On-Delay version
- Two delayed contact (DPDT Relay) Output

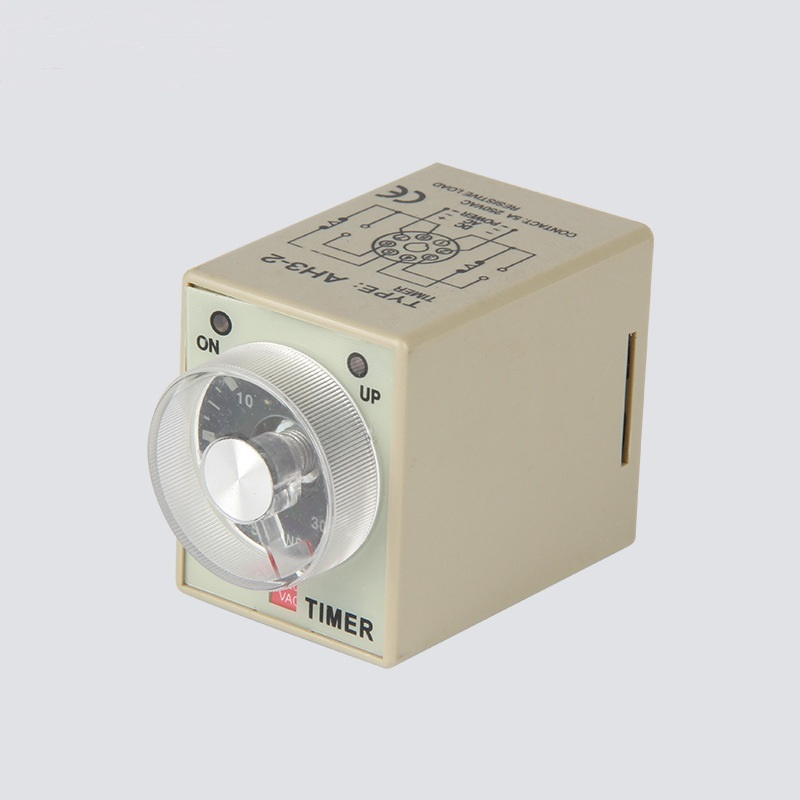

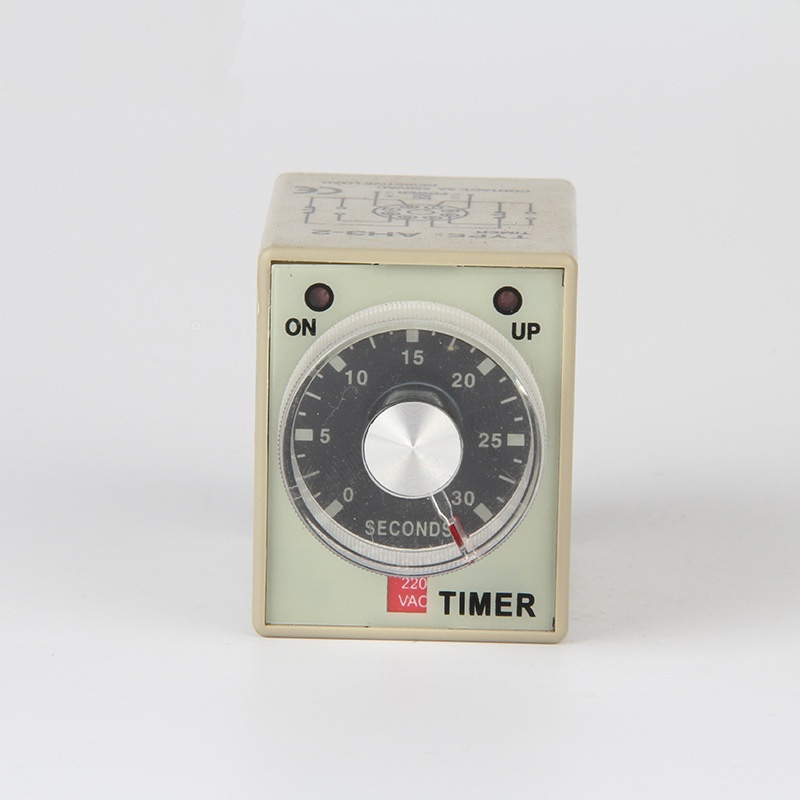

- Large and easy to read dial shows decimal points
- Two Leds provide status indication for ON-OFF operations

Technical Data:

Dimensions	50H×40W×57.5D
Mounting & Socket	Surface(-N) PF083A(E) Flush(-Y) US-08 P3G-08
Full timing range	A:1S,10S,1M,10M B:3S,30S,3M,30M C:6S,60S,6M,60M D:1M,10M,1H,10H E:3M,30M,3H,30H
Rated voltage	DC(V):12 24 AC(V):12 24 110 220 240 380 50/60Hz
Indicator operating	ON-UP Operating
Contact O/P	Time limit 2C 5A Resistive load.
Life	Mechanical 5×10⁶times Electrical 1×10⁵times
Accuracy	Repeat error ±1%max Setting error ±10%max Voltage error ±1%max Temp.error ±2%max
Reset time	0.1sec max
Insulation resistance	100MΩ(DC 500V)min
Dielectric strength	1500VAC
Consrmed power	2VA
Ambient temperature	-10ºC~+55ºC
Ambient humidity	48~85%RH
Weight	160g

Prod Model:	AH3-2
