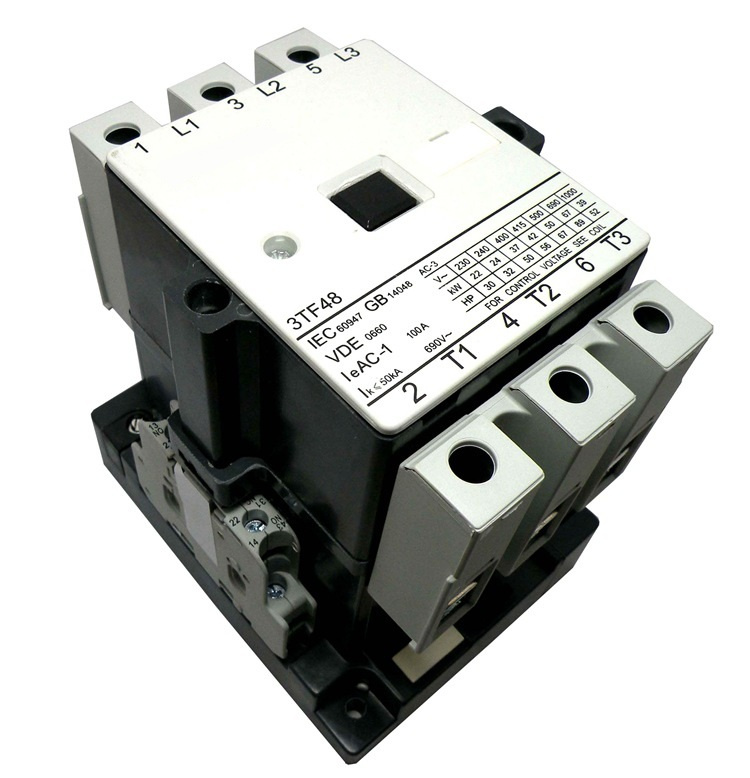

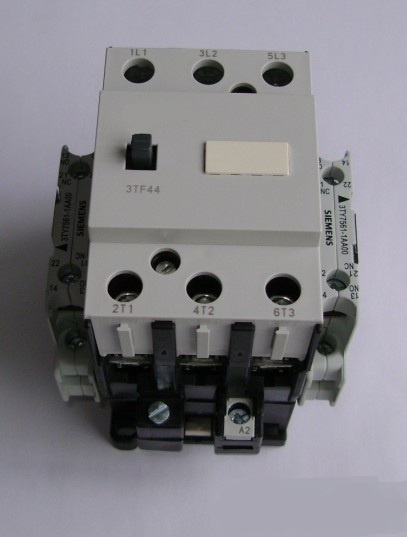

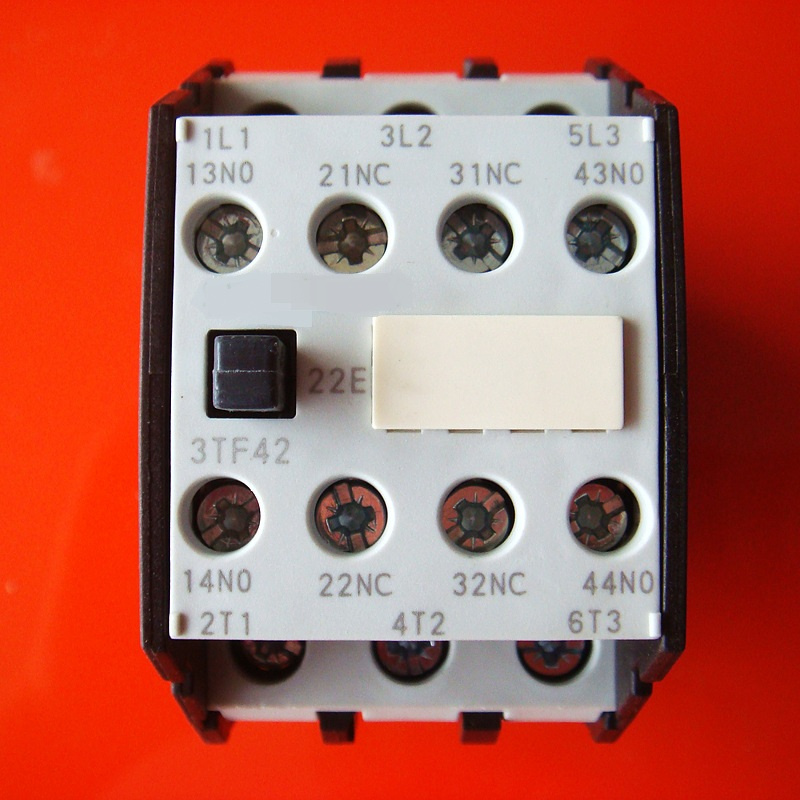

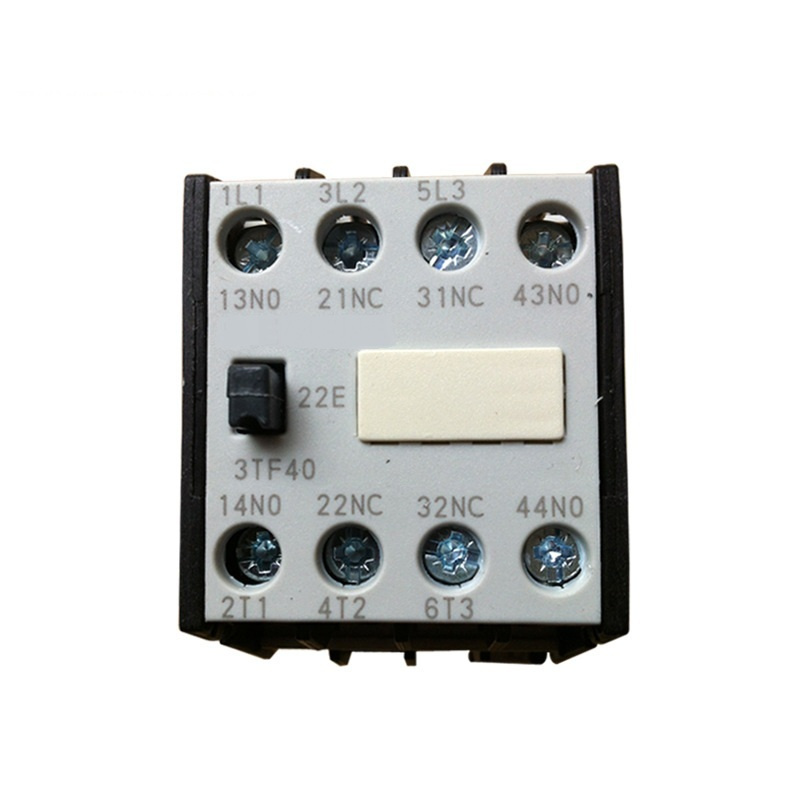

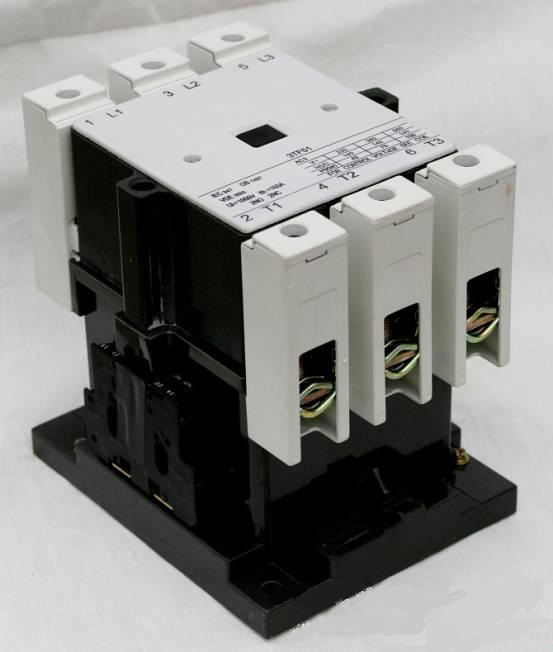

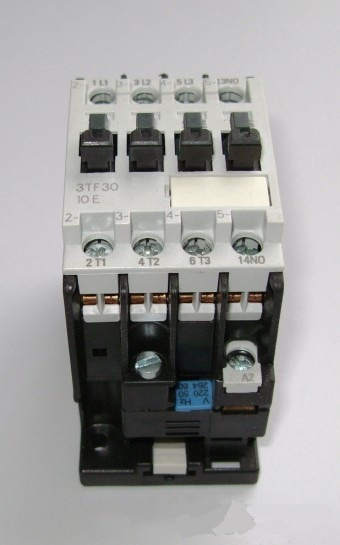

Professional Factory Cjx1 3TF-4822 3tb 32A Silver Electrical Contact AC Contactor

Name: Professional Factory Cjx1 3TF-4822 3tb 32A Silver Electrical Contact AC Contactor
Brand: all-electronics-online.com
SKU: 835865165
Availability: InStock
Rating: 4.3 (38 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Application

3TF series AC Contactors are suitable in electrical system with AC 50/60Hz, rated operational
voltage up to 660V, In AC-3 usage, rated operational voltage up to 380V, rated operational current up to 630A to make or break remote motors or system. They can form electromagnetic starters with suitable thermal overload relays 3UA series to protect system and motors against overload or phase-failure. They are made according to IEC60947-4.
The contactor is a straight motion mechanism having double-breaking contacts. The auxiliary contacts are arranged 2NO, 2NC at most. It is employed the flexible locking connection between the contact support and core. There are no arc-isolated panel in the le22A contactors. In the In32A contactors, there are moulded arc-chute with arcisolated panel. Because all contacts are made of high non-fusibility and against corrosion silver alloy. All series products can be mounted by screws, le32A contactor also by installation rail.

Specifications

Type	Rated thermal current(A)	Type of auxiliary contact	Rated operation current(A)		Controollable power of motor(KW)
			Rated operation current(A)		AC3		AC4
			380V	660V	380V	660V	380V	660V
3TF30	20	NO NC 1NO+1NC 2NO+2NC	9	3.33	4	5.5	1.4	2.4
3TF31	20		12	4.33	5.5	7.5	1.9	3.3
3TF32	30		18	7.77	7.5	11	3.5	6
3TF33	30		22	8.5	11	11	4	6.6
3TF34	45		32	15.6	15	23	7.5	13
3TF35	45		38	18.5	18.5	23	9	15.5
3TF40	20		9	3.3	4	5.5	1.4	2.4
3TF41	20	2NC+2NO 4NC+4NO	12	4.3	5.5	7.5	1.9	3.3
3TF42	30		16	7.7	7.5	11	3.5	6
3TF43	30		22	8.5	11	11	4	6.6
3TF44	45		32	15.6	15	23	7.5	13
3TF45	45		38	18.5	18.5	23	9	15.5
3TF46	70		45	24	22	39	12	20.8
3TF47	70		63	28	30	55	14	24.3
3TF48	90		75	34	37	67	17	29.5
3TF49	90		85	42	45	67	21	36
3TF50	150		110	54	55	100	27	46.9
3TF51	150		140	68	75	100	35	60
3TF52	180		170	75	90	156	38	66
3TF53	220		205	96	110	156	50	86
3TF54	300		250	110	132	235	58	100
3TF55	300		300	125	160	235	66	114
3TF56	400		400	150	200	375	81	140
3TF57	550		475	150	250	375	81	140
3TF68	630		630	600	335	560	160	278

Prod Model:	3TF-4822
