Zhejiang Shuntong Electric Co., Ltd. >> Professional Factory for Kg316t 12V 25A Programmable Digital Timer Control Switch

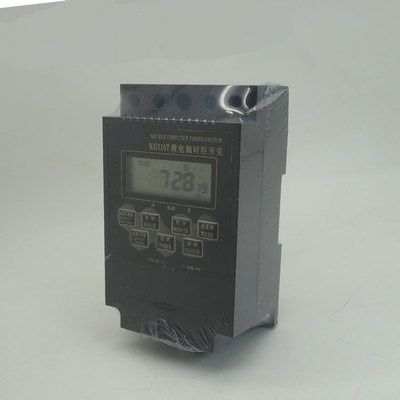

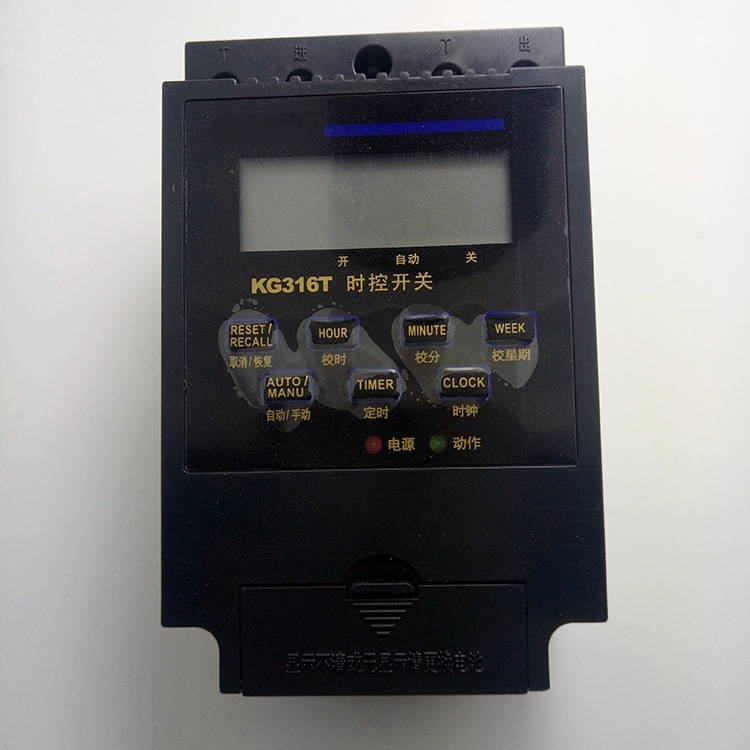

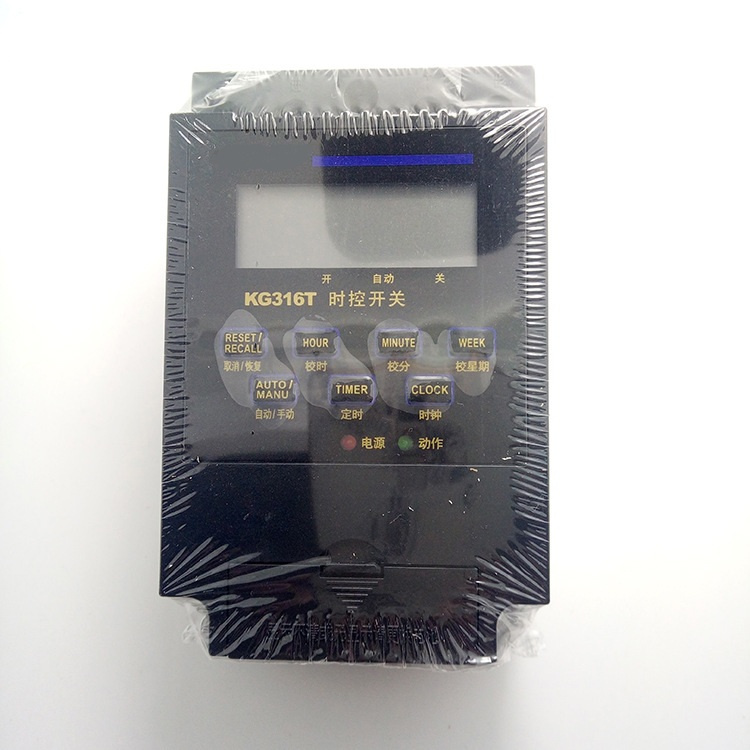

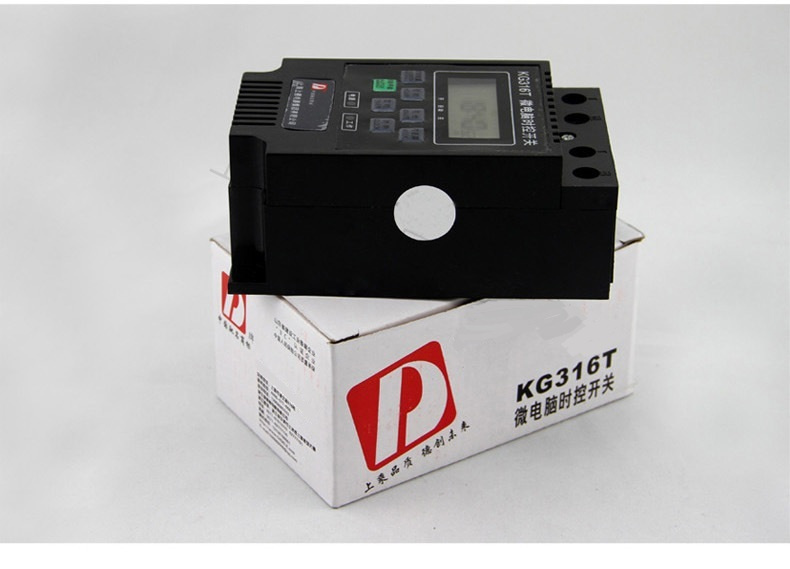

Professional Factory for Kg316t 12V 25A Programmable Digital Timer Control Switch

Professional Factory for Kg316t 12V 25A Programmable Digital Timer Control Switch
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram

This Timer Switch can automatically switch on and switch off various kinds of electric equipment

according to fixed time, the control objects can be road lamp, neon light, billboard lamp,

product equipment, broadcast TV, and all that the circuit fixtures and home appliances need

setting time to open and close.10 times a day can be set up to open 10 off action.Suitable for

control circuit in below voltage 380V 50Hz.

Setting time by day or week circularly.



Specification

Type

KG316T

Outlione dimension

75×120×58

Contact

Changing contact:1A

Contact capacity

AC250V 15A (Resistance)

Contact electrical life

10×10000 Times

Controlled power

3kw

Ambient temp

5~40

Operating voltage

AC220V/380V 50HZ

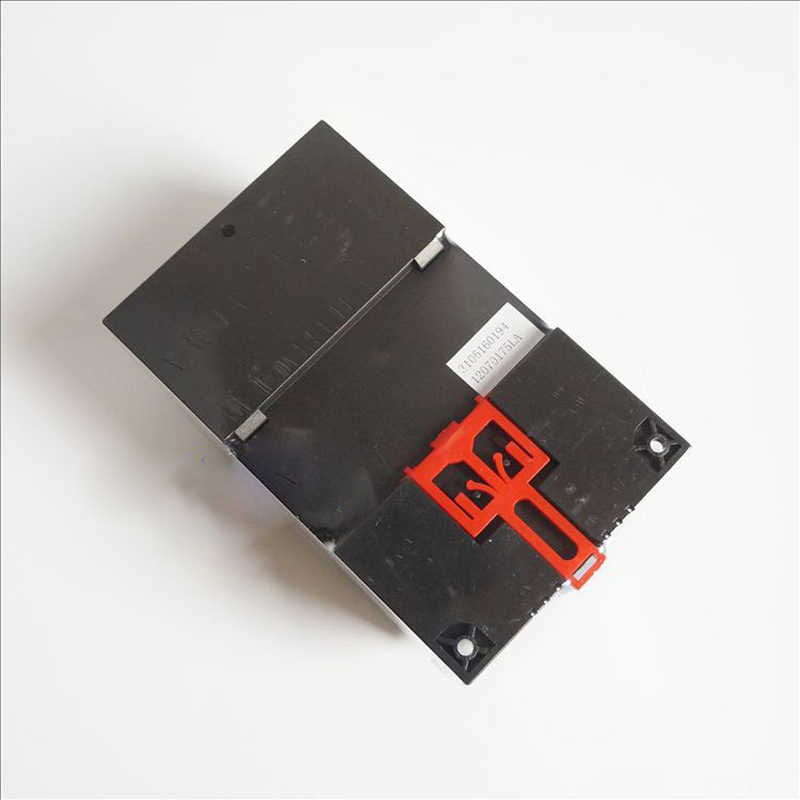

Fixing mode

Inside fixing









Prod Model: KG316T
