Professional Factory High Quality 3TF-49 Auxiliray Contactor 3TF49

Name: Professional Factory High Quality 3TF-49 Auxiliray Contactor 3TF49
Brand: all-electronics-online.com
SKU: 835934495
Availability: InStock
Rating: 4.7 (129 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

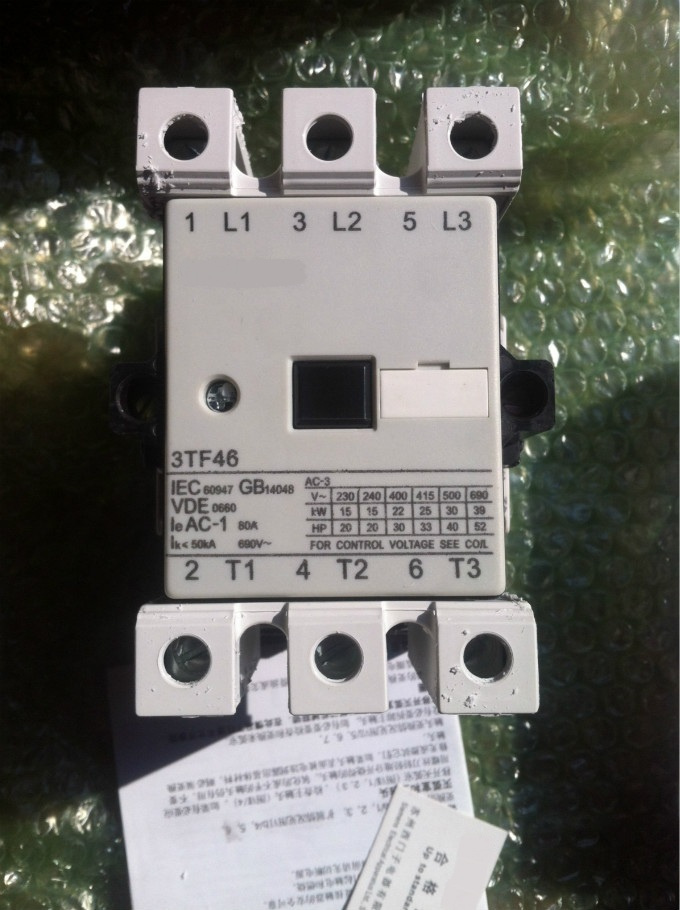

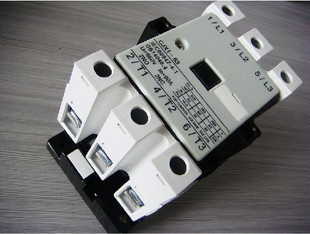

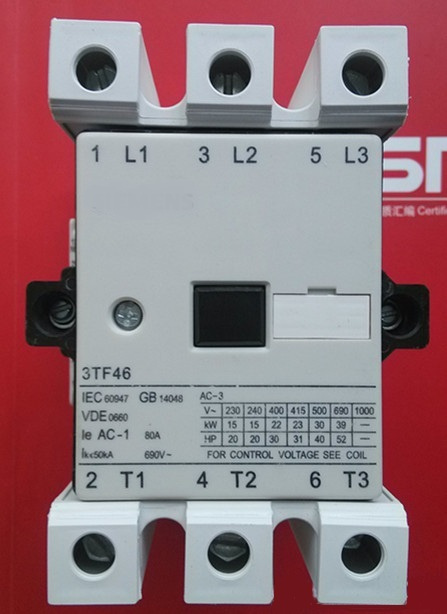

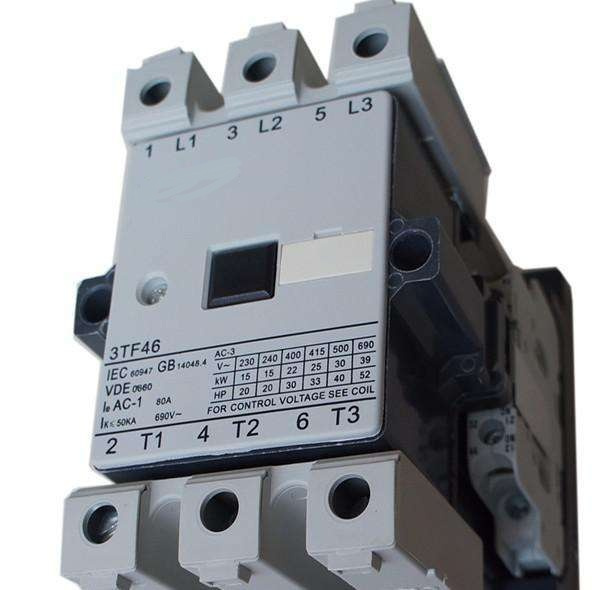

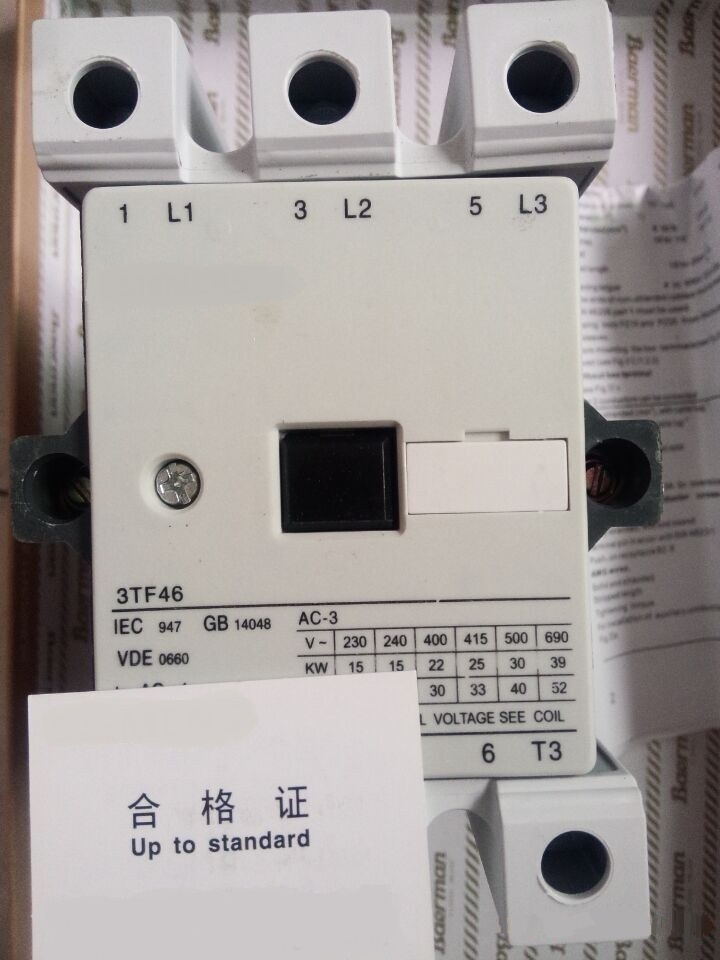

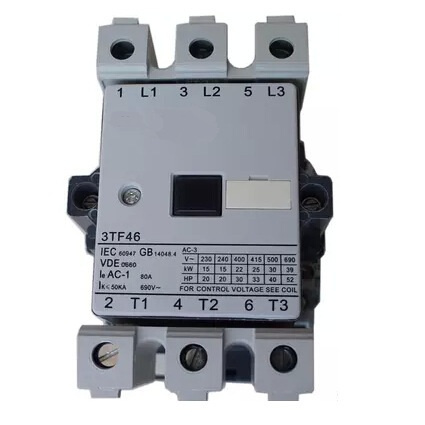

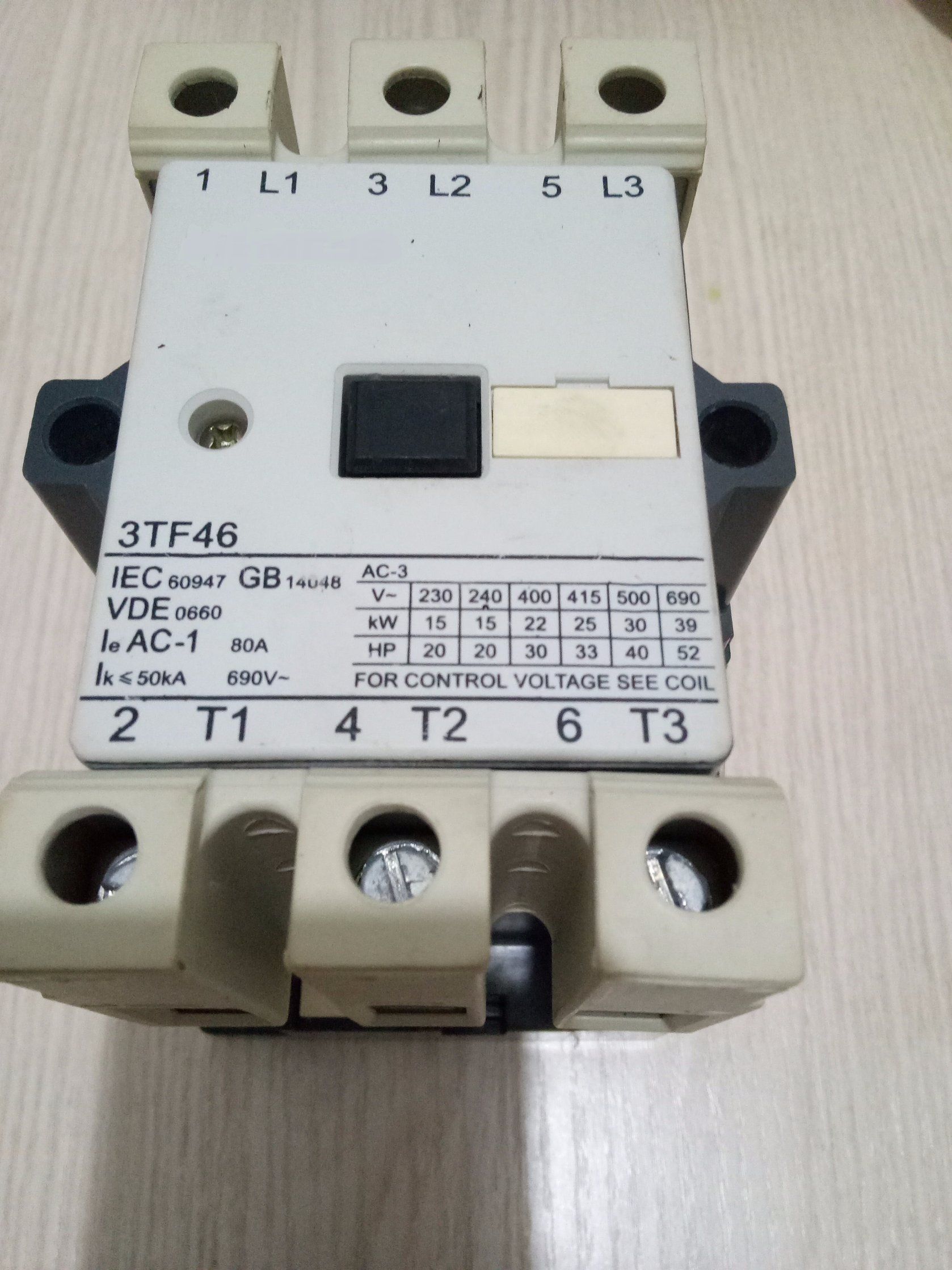

3TF46 ac magnetic contactor 220v 380v 440v

3TF series AC contactor is used for making and breaking, and for frequent starting and controlling the motor.3TF series AC contactor mainly used for making/breaking electric.CJX1/3TF series AC contactors are suitable for frequency 50/60Hz,rated insulation voltage up to1000V,rated operation current 9~475A under AC-3 duty.It is mainly used for making/breakingelectric circuit at a long distance & for frequent starting/stopping & with thermal relay to com-pose a magnetic motor starter.The product conforms to IEC60947-4-1 stardand.The contactor is a straight motion mechanism having double breaking contacts. The auxiliary contacts are arranged 2NO.2NC at most, it is employed the flexible locking connection between the contact support and core, three are no arcisolated panel in the Ie≤22A contactor. In the In≥32A contactors. Three are moulded arc-chute with arc-isolated panel, because all contacts are made of high cnonfusibility and against corrosion silver alloy. All series products can be mounted by screw, Ie≤32A contactor also by installation rail.

Type	Rated	Rated		Controllable power				Type of
	thermal	operation		of motor (KW)				auxiliary
	current	current (A)		AC-3		AC-4		contact
	(A)	380V	660V	380V	660V	380V	660V	NO NC
3TF30	20	9	7	4	5.5	1.4	2.4
3TF31	20	12	8.5	5.5	7.5	1.9	3.3
3TF32	30	16	12.5	7.5	11	3.5	6
3TF33	30	22	16.5	10	15	4	6.6
3TF34	55	32	24	15	22	7.5	13
3TF35	55	38	30	18.5	22	9	15.5
3TF40	20	9	7	4	5.5	1.4	2.4
3TF41	20	12	8.5	5.5	7.5	1.9	3.3	1NO+1NC 2NO+2NC
3TF42	30	16	12.5	7.5	11	3.5	6
3TF43	30	22	16.5	10	15	4	6.6
3TF44	55	32	24	15	22	7.5	13
3TF45	55	38	30	18.5	22	9	15.5
3TF46	80	45	40	22	37	12	20.8	2NO+2NC 4NO+4NC
3TF47	80	63	60	30	55	14	24.3
3TF48	100	75	60	37	55	17	29.5
3TF49	100	85	80	45	75	21	36
3TF50	160	110	95	55	90	27	46.9
3TF51	160	140	120	75	110	35	60
3TF52	200	170	160	90	150	38	66
3TF53	200	205	165	110	160	50	86
3TF54	300	250	230	132	220	58	100
3TF55	300	300	260	160	250	66	114
3TF56	400	400	380	200	355	81	140
3TF58	630	630	600	335	560	160	278

Prod Model:	3TF-49

ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
