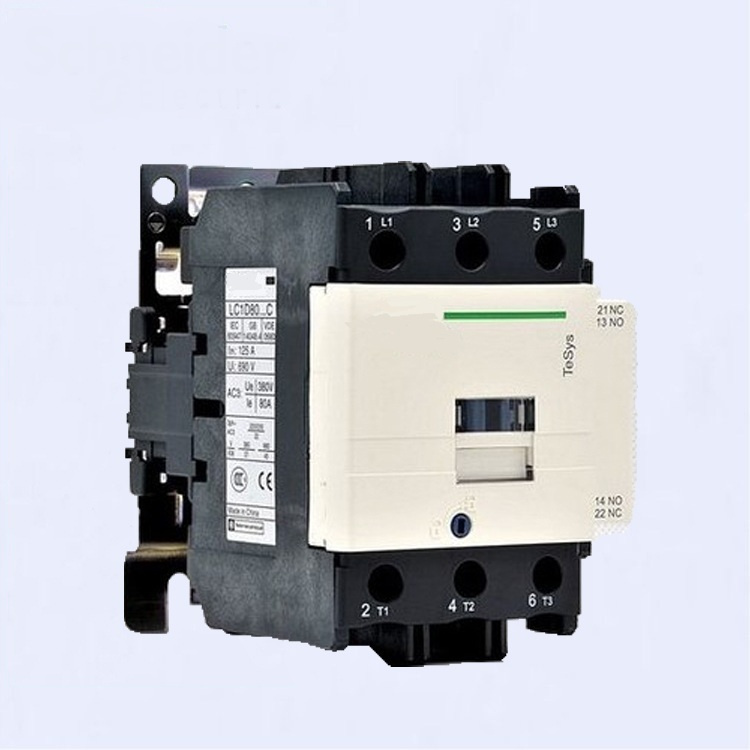

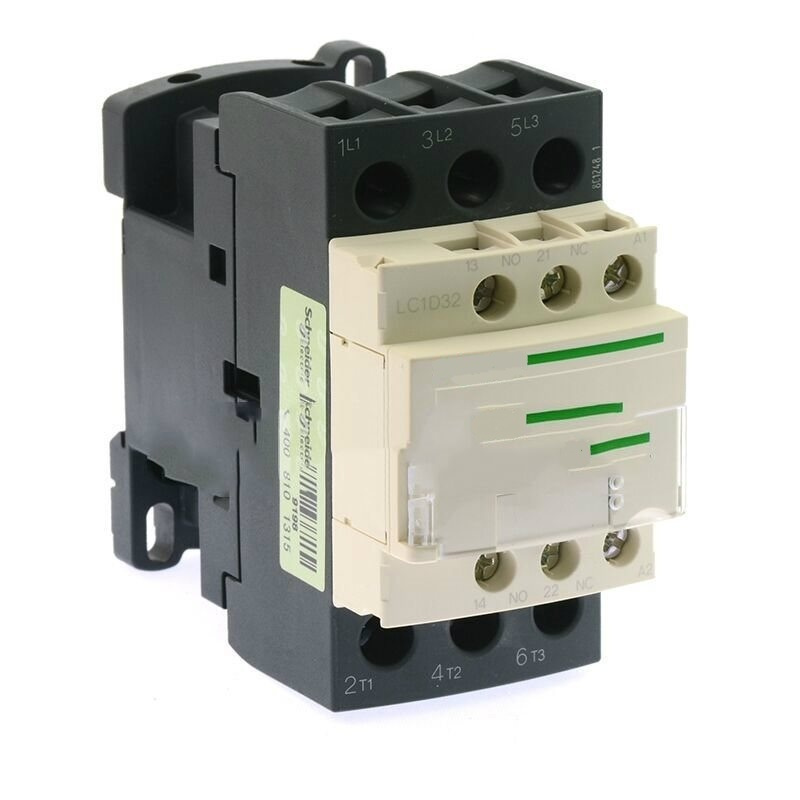

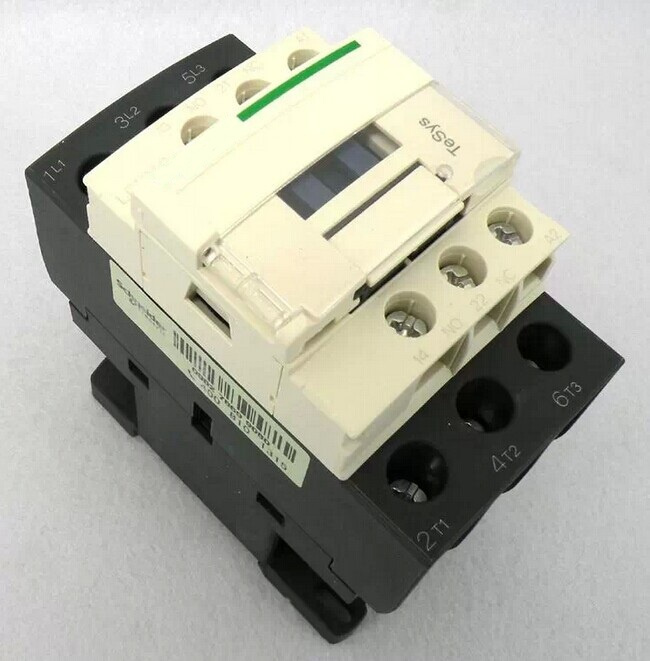

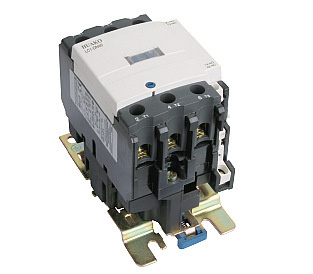

Professional Factory LC1-D12n/ Cjx2-D12n AC Contactor

Name: Professional Factory LC1-D12n/ Cjx2-D12n AC Contactor
Brand: all-electronics-online.com
SKU: 731691312
Availability: InStock
Rating: 4.8 (120 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Description:

CJX2-N series AC contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz
or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor.
Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes
the delay contactor, mechanical-interlocking contactor, star-delta starter. With the thermal relay, it is
combined into the electromagnetic starter. The contactor is produced according to IEC 947-2, VDE 0660
& BS5452.

Specification:

Rated operation current
Ie max AC-3 (Ue≤440V)		9A	12A		18A	25A		32A	38A
Ie AC-1 (0≤60°C)		25A			32A	40A		50A
Rated operational voltage		690V
Poles (P)		3	3	4	3	3	4	3
Rated operational power in AC-3	220/240V	2.2kW	3kW		4kW	5.5kW		7.5kW	9kW
	380/400V	4kW	5.5kW		7.5kW	11kW		15kW	18.5kW
	415/440V	4kW	5.5kW		9kW	11kW		15kW	18.5kW
	500V	5.5kW	7.5kW		10kW	15kW		18.5kW	18.5kW
	660/690V	5.5kW	7.5kW		10kW	15kW		18.5kW	18.5kW
	1000V	-	-		-	-		-	-
Auxiliary contacts	1 N/C and 1 N/O instantaneous incorporated in the contactors, with addon blocks common to the whole range comprising up to 4 N/C or N/ O instantaneous, up to 1 N/O+1 N/C time delay and up to 2 N/O or N/C protected contacts and 2 screen continuity terminals
Compatible manualauto thermal overload relays	Class 10A	0.10-10A	0.10-13A		0.10-18A	0.10-32A		0.10-38A	0.10-38A
Compatible manualauto thermal overload relays	Class 20A	2.5-10	2.5-13A		2.5-18A	2.5-32A		-	-
Suppressor modules
(d.c. and low consumption contactors have built-in suppression as standard)	Varistor	Y	Y	Y	Y	Y	Y	Y	Y
	Diode	-	-	Y	-	-	Y	-	-
	RC circuit	Y	Y	Y	Y	Y	Y	Y	Y
	Bridirectional peak limiting diode	Y	Y	Y	Y	Y	Y	Y	Y
Interfaces	Relay	Y	Y	Y	Y	Y	Y	Y	Y
	Relay+override function	Y	Y	Y	Y	Y	Y	Y	Y
	Solid state	Y	Y	Y	Y	Y	Y	Y	Y
Contactor type references	~ or… 3P	CJX2N-09	CJX2N-12		CJX2N-18	CJX2N-25		CJX2N-32	CJX2N-38
	~ 4-P	-	CJX2N-12		-	CJX2N-25		-	-
	-4P	-	CJX2N-12		-	CJX2N-25		-	-
Reversing contactor type references	~ 3P	CJX2N-DN09	CJX2N-DN09		CJX2N-D18	CJX2N-D25		CJX2N-D32	CJX2N-D38
	-3P	CJX2N-DN09	CJX2N-DN09		CJX2N-D18	CJX2N-D25		CJX2N-D32	CJX2N-D38
	~ 4P	-	-		-	CJX2N-D25		-	-
	-4P	-	-		-	CJX2N-D25		-	-

Prod Model:	LC1-D12N
