Zhejiang Shuntong Electric Co., Ltd. >> Professional Factory Mes Series Current Transformer Mes-62/40 Dry Type Current Transformers

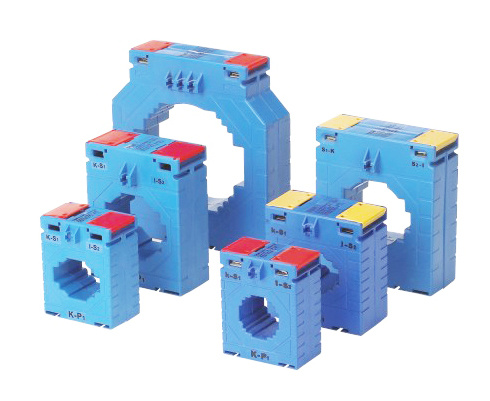

Professional Factory Mes Series Current Transformer Mes-62/40 Dry Type Current Transformers

Professional Factory Mes Series Current Transformer Mes-62/40 Dry Type Current Transformers
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Description






A range of compact plastic case current transformer.
Its volume is much smaller than general model.
Its integral hinged plate terminal cover and din rail mounting all make MES CT match requirements in space
limited panels.
Features
Three built in fixing methods: panel/din rail/busbar
Built in hinged terminal cover
Compact design
Primary current from 5A to 3000A
Specifications
Rated frequency: 50/60Hz
Rated test voltage: 3Kv AC (1 min)
Rated short-time thermal current (Ith): 60In
Rated dynamic current (Idyn): 2.5Ith
Rated voltage (Um): 0.72Kv AC
Continuous overload (Id): 1.2In
Operating temperature: -10 degree to 50 degree
Housing self-extinguishing class: VO
Safety factor: FS 5
Secondary current: 5A/1A

Prod Model: MES
Application: Lighting
Type: Current Transformer
Phase: Single
ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
