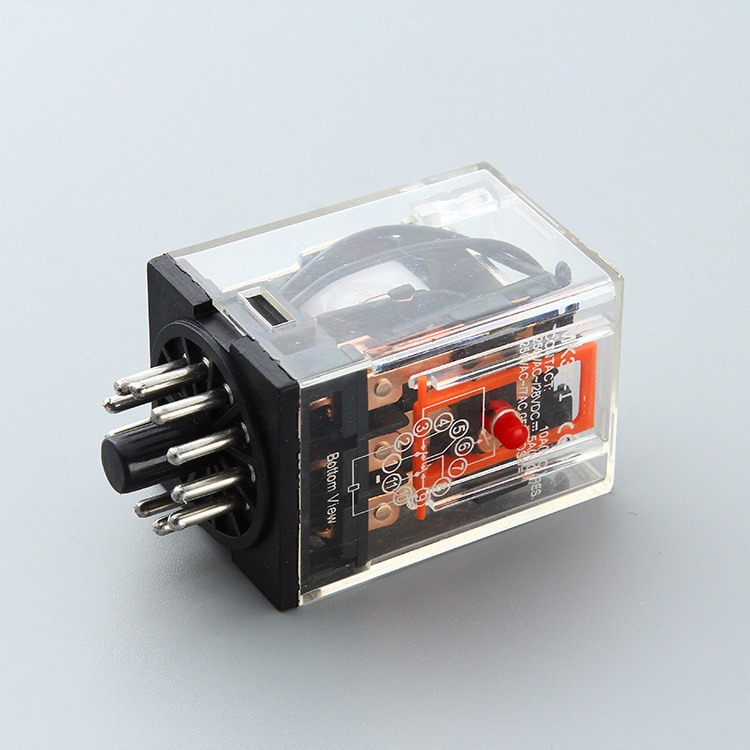

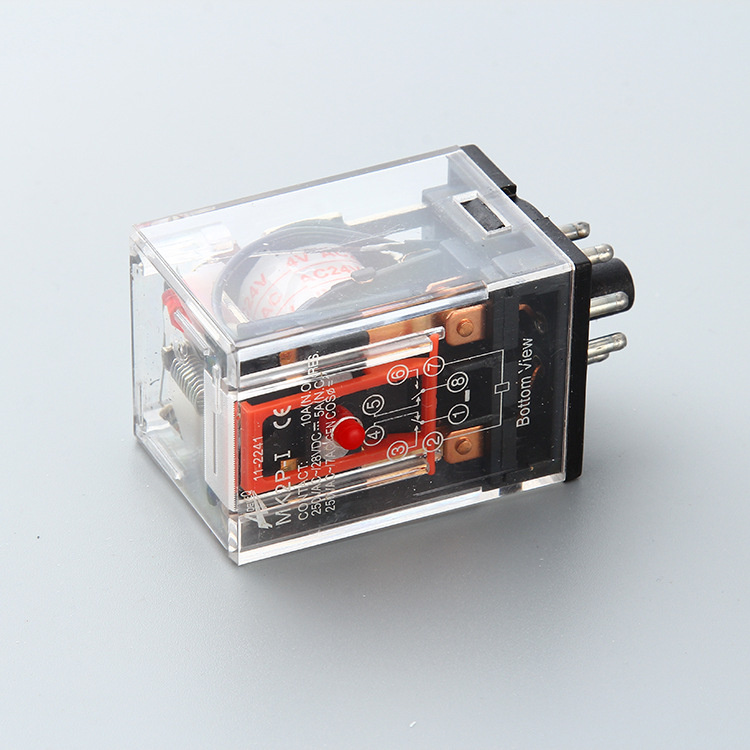

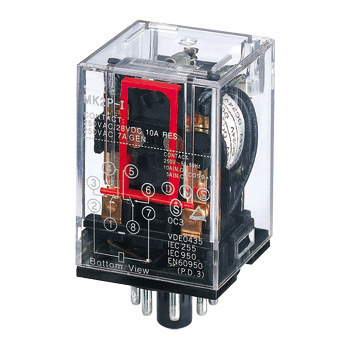

Professional Factory Mk2p-1 12V 8pin 12VDC General-Purpose Relay

Name: Professional Factory Mk2p-1 12V 8pin 12VDC General-Purpose Relay
Brand: all-electronics-online.com
SKU: 834217515
Availability: InStock
Rating: 4.9 (94 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Features:

10A switching capability(2C,3C type)
Long life(Min.100,000 electrical operations)
Industry standard 8 or 11 round terminals
Matching sockets available
Environmental friendly product (ROHS compliant)
Outline Dimensions:33.6*33.6*51.5mm

Specification:

Contact arrangement		2C,3C
Contact resistance		100mΩ(1A 24VDC)
Contact material		AgSnO2, AgCdO
Contact rating(Res. load)		2C:10A 250VAC/30VDC 3C:(NO)10A 250VAC/30VDC (NC)5A 250A/30VDC
Max. switching voltage		250VAC/30VDC
Max. switching current		10A
Max. switching power		300W/2500VA
Mechanical endurance		10000000 times
Electrical endurance		100000 times

Characteristics:

Insulation resistance		500MΩ(500VAC)
Dielectric strength	Between coil&contacts	2500VAC 1min
	Between open contacts	2000VAC 1min
Operate time(at normal volt.)		25ms
Release time(at normal. volt.)		25ms
Coil temperature rise		70ºC
Shock resistance	Functional	98m/s²(10g)
	Destructive	980m/s²(100g)
Vibration resistance		10Hz~55Hz 1.5mm
Humidity		98%RH,+40ºC
Ambient temperature		-40ºC~55ºC
Termination		Octal and undacal type plug
Unit weight		85g
Construction		Dust cover

Prod Model:	mk2p-1
