Technical data of T919

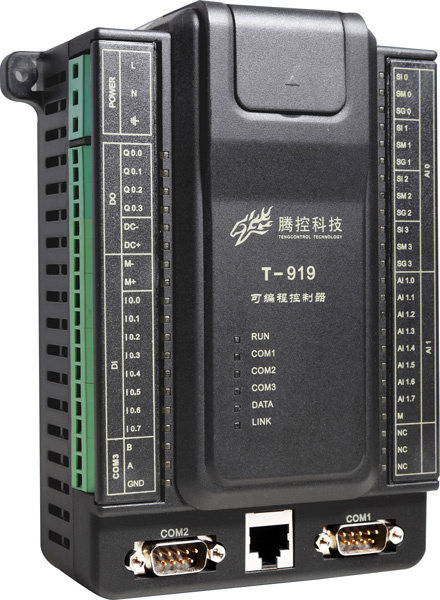

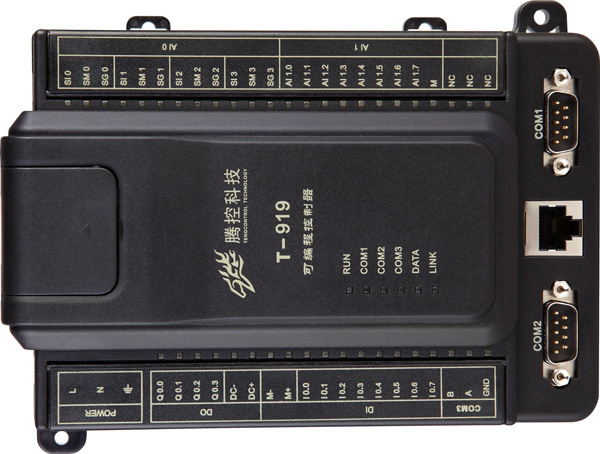

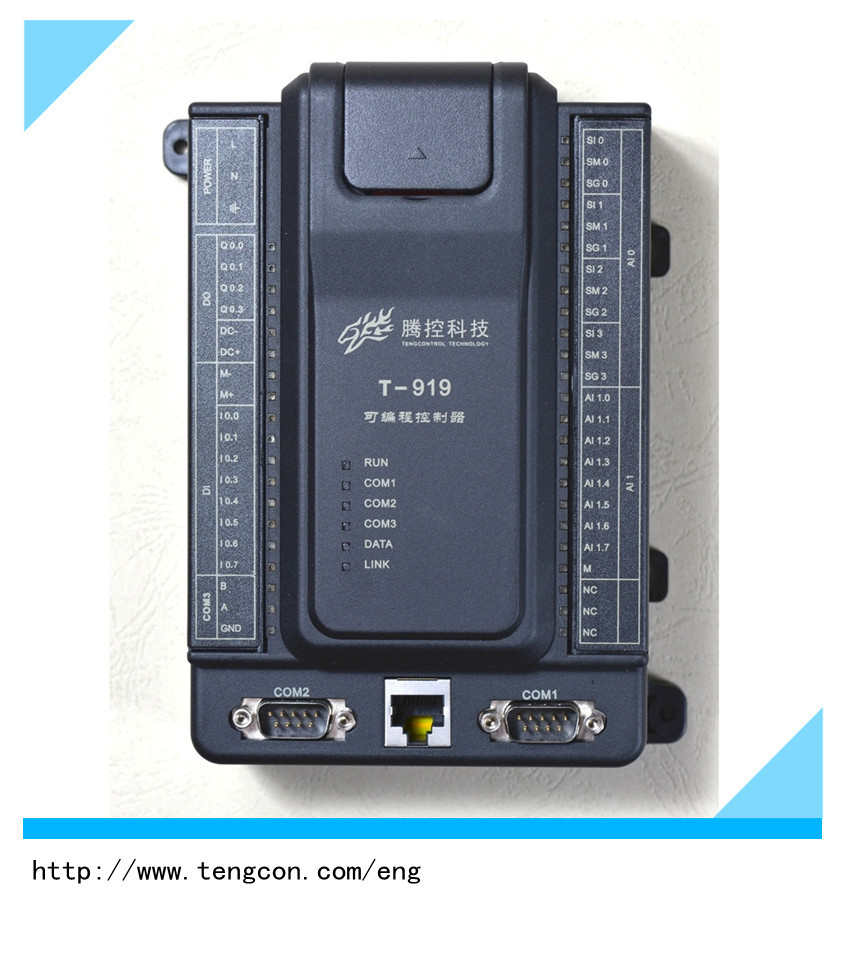

T919 Programmable Controller is a product of Tengcon Company's T9 series PLC. It combines an ARM industrial CPU with a maximum frequency of 72MHz. an extended 32M SDRAM and a 4M FLASH, an embedded operating system, a 2M user programmemory and a 2M user data memory. Programming the T919 on KW MULTIPROG programming system and communicate via a Ethernet cable make user's programming very easy. Furthermore, T919 also provide 3 RS232, or RS485 interface. It provide the following input and output: 8 digital inputs, 4 digital outputs, 8 analog inputs, 4 RTD outputs(PT100), because of its flexibility, T-919 can be applied in many small industrial control applications.

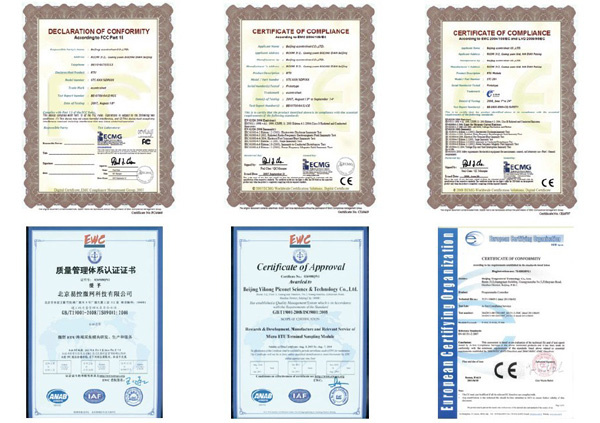

Tengcon T-9 Series PLC have passed CE & FCC Certification.
Operating Temperature Range -40~85 degrees celsius
8 channel analog input (0~5v or 0~20mA) , 16 bit AD
4 channel RTD(PT100) input ,16 bitAD
8 point isolated digit input 5-48 VDC
4 point transistor output, 30VDC 0.5A per point
1 port 10M/100M Ethernet, MODBUS TCP / ENET IEC870-5-104
Two RS485or RS232 ports , one RS485 port, MOBUS RTU , 300-38400bps
IEC61131-3 supported (IL,ST,LD,FBD,SFC)
AC(85-265V) or DC 24V power supplies
169x134x63 (mm) size
Technical Specification
Model Number | TENGCON T-919 (8AI,8DI,4DO,4PT100/1000) |
Physical Feature |
Dimension | 169 x 134 x 63 mm (W x H x D) |
Weight | 0.5 Kg |
Mount | Standard rail or bolts |
Working Temperature | From -40ºC to 85 ºC |
I/O Feature |
Built-in digital inputs | 8 (Optical coupling isolated input) |
Built-in digital outputs | 4 (Transistor output) |
Built-in analog inputs | 8 (0-20mA or 0-5V) |
PT100 input | 4 (measurement range:-190~700ºC Precision:0.1ºC ) |
I/O state indicators | 44 pcs. |
Power Supply and power output |
Power Supply | Rated Voltage | 220V AC or 24V DC |
Range | From 90V AC to 250V AC, 50Hz, or 24V DC |
Isolated power output | Rated voltage | 24VDC |
Rated current | 0.2A |
Output resistance | About 20 Ohm |
Terminals | VOUT(24V+, 24V-) |
Communication |
Ethernet | 1 port (RJ45, 10M/100M adaptive,MODBUS TCP protocol) |
RS232 | 1 port (COM0, for internal test) |
RS232/485 | 3 port l COM2, DB9 RS232 direct connect l COM1, DB9 RS485(pin 2 is B, pin 3 is A) l COM3, DB9 RS485(terminal AB) Default settings: MODBUS RTU Slave, Bode rate 19200,1,8,E, address 1 |
DIP | 8-bits Set DIP ON will force the IP address to the default 192.168.1.99 |
Run/stop switch | 2 switches run/stop(in stop mode, only PLC program stopped) |
Communication indicator | 6 pcs. l RUN indicator(flashing) l COM1 COM2serial port communication indicator(flashing when communicating) l LINK Ethernet linking indicator DATA Ethernet communicating indicator |
Memory |
User program memory size | 2M Byte |
User data memory size | 2M Byte |
Back-up battery data memory | 1K Byte |
Data back-up time | 1 year |
CPU feature |
CPU frequency | 48 MHz | Max. 72 MHz |
Minimum instruction processing time | 10 millisecond | |
INT and Bit operation | From 1 to 4 microsecond | |
Floating-point algorithm | About 40 microsecond | |
10ms timer quantity | No limit | |
Clock | Internal clock | Back-up battery |
Order Requirements:
Please confirm and choose the following information when you are ready to place order :
Working Power Supply | 220V AC 50HZ | Please confirm which one |
9-36V DC |
DC input | 0-20MA(default setting) | Please confirm which one |
0-5V |
DI Voltage | 24V/DC | |
Communication | 2 RS485 port,1RS232 port (default setting) | Please confirm which one |
3 RS485 port |
Quantity | |
