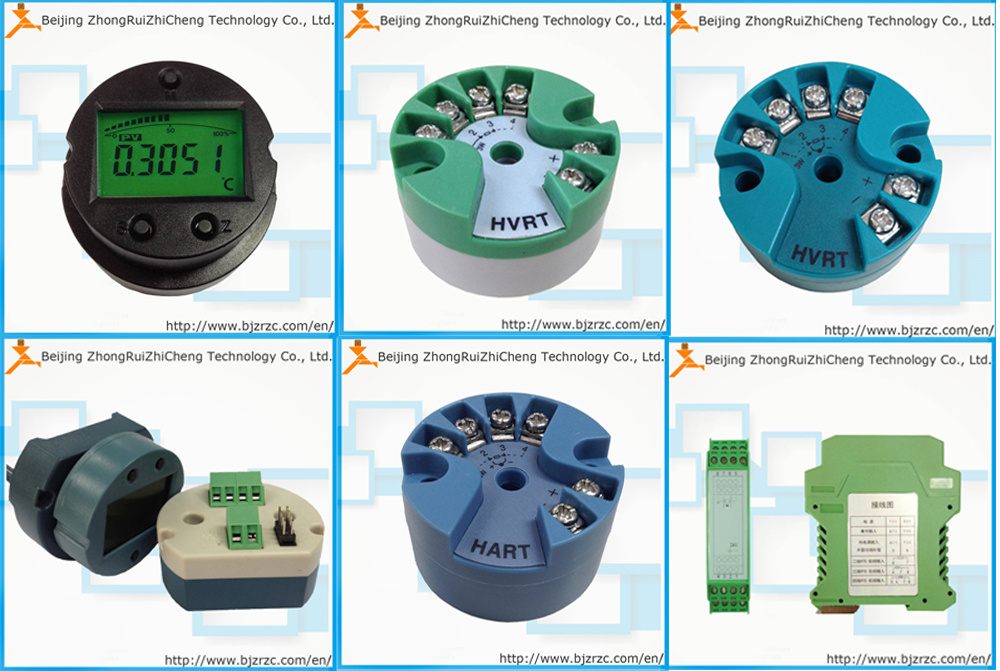

H649WD temperature transmitter module

Appliction
Used for	RTD, TC, Ohm, mV
Specifications
Power supply:	10-32VDC
Output:	4-20 mA with HART (2-WIRE)
Stability:	0.01°C (RTD), 0.1°C(E J K N T) 0.2°C(B R S)
Accuracy:	0.01°C(RTD) 0.5°C(E J K N T) 1.0°C(B R S)
Load resistance	≤ (U-10)/0.22
Relative humidity:	10%-90%RH
Operating temperature	-40°C~+85°C
Dimension:	H649:DIN rail mounting
Weight:	About100g
Sensor Type RTD(Resistance Thermometer): PT50,PT100,PT500,Pt1000 TC (Thermocouple): E ,J, K, N ,T ,B, R ,S Ohm:0 ~ 500Ω, 0 ~ 4500Ω Millivolt:-120 ~120mV, -1000 ~ 1000Mv

FEATURES
High-voltage isolation:  As high as 1000V for the isolation voltage between metal capacitance sensor processing circuit and main circuit.
High reliability: Built-in multi-level protection circuit for high reliability. Outstanding EMC performance.
H649: DIN rail mounting and can be built completely independent of 2-channel temperature modules

Signal Type			Measurements Range	Minimum Range	Output Accuracy
Thermocouples (TC)		T	-200~400ºC	25ºC	±0.4ºC/0.2%
		E	-200~1000ºC	25ºC	±0.4ºC/0.2%
		J	- 210~1200ºC	25ºC	±0.4ºC/0.2%
		K	-200~1372ºC	25ºC	±0.4ºC/0.2%
		N	-200~1300ºC	25ºC	±0.4ºC/0.2%
		R	0~1768ºC	100ºC	±0.8ºC/0.2%
		S	0~1768ºC	100ºC	±0.8ºC/0.2%
		B	150~1820ºC	100ºC	±1.0ºC/0.2%
mV input			-120~120mV	10mV	±10μV /0.2%
mV input			-1000~1000mV	50mV	±100μV /0.2%
Resistance Temperature (RTD)	Pt50		-200~850ºC	10ºC	±0.15ºC/0.2%
	Pt100		-200~850ºC	10ºC	±0.15ºC/0.2%
	Pt500		-200~850ºC	10ºC	±0.1ºC/0.2%
	Pt1000		-200~850ºC	10ºC	±0.1ºC/0.2%
Ohm input			0~500 Ω	100Ω	±0.2 Ω/0.2%
Ohm input			0~4500 Ω	100Ω	±1.0 Ω/0.2%

Beijing ZhongRuiZhiCheng Technology Co., Ltd.

  A professional engineering team with 15 Years HART/5 years Profibus R&D experiences
80% Market share in China Mainland market for HART transmitters
More than 1000k Units shipped per year
One-stop Solution for various HART/Profibus transmitters
Quick response in goods supply and post-sales support
  Globally distributed customers including China Mainland, Korea, India, America, Europe, etc

FAQ:
1,Customer: i want buy the samples to test, it is ok?

Helen: of course, not free sample, but when the next order, we will return the samples money to your.

2,Customer: when will you do the shippment after my payment ?
Helen: we have the in stock, when we received the payment, i will ASAP send to your,(through DHL/ UPS/ TNT/FEDEX,etc)

3,Customer: How to pay?

Helen: the Western union, Paypal, person account, TT ,and so on.

Samples small quantity are avaliable at any time Welcome to contact us!

Prod Model:	H649
Color:	Green
Stability:	0.01deg
Operating Temperature:	-40deg~ +85deg
Supply Voltage:	10-32VDC
Warranty:	1year
Site Display:	PC
Accuracy Grade:	0.5, 0.1%
Certification:	Pcec
