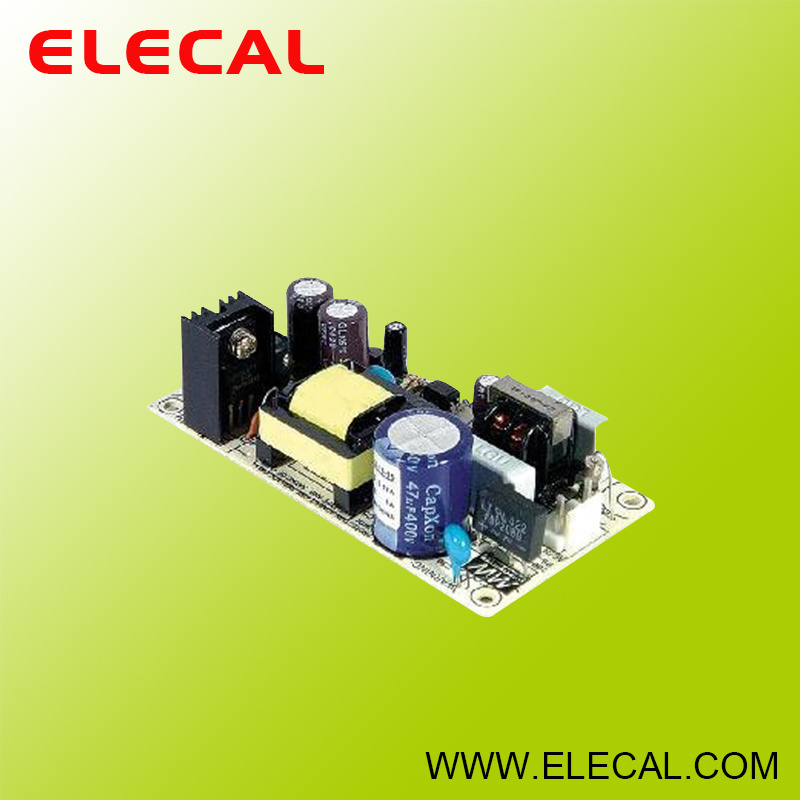

PS-15 Open Frame Switching Power Supply

Name: PS-15 Open Frame Switching Power Supply
Brand: all-electronics-online.com
SKU: 829022175
Availability: InStock
Rating: 4.9 (140 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

MODEL		PS-15-5	PS-15-12	PS-15-15	PS-15-24	PS-15-36
OUTPUT	DC VOLTAGE	5V	12V	15V	24V	36V
	RATED CURRENT	2.8A	1.25A	1A	0.625A	0.313A
	CURRENT RANGE	0~2.8A	0~1.25A	0~1A	0~0.625A	0~0.313A
	RATED POWER	14W	15W	15W	15W	15W
	RIPPLE & NOISE (max.) Note.2	100mVp-p	120mVp-p	150mVp-p	150mVp-p	200mVp-p
	VOLTAGE TOLERANCE Note.3	±1.0%	±1.0%	±1.0%	±0.5%	±0.5%
	LINE REGULATION	±1.0%	±1.0%	±1.0%	±0.5%	±0.5%
	LOAD REGULATION	±1.0%	±1.0%	±1.0%	±0.5%	±0.5%
	SETUP, RISE TIME	5~24V;1200ms,30ms 48V 1200ms, 75ms at full load
	HOLD UP TIME(Typ.)	100ms at full load
INPUT	VOLTAGE RANGE	85~264VAC 120~370VAC
	FREQUENCY RANGE	47~63Hz
	EFFICIENCY (Typ.)	74%	77%	78%	79%	77%
	AC CURRENT (Typ.)	0.4A/115VAC 0.2A/230VAC
	LEAKAGE CURRENT	<0.5mA /240VAC
PROTECTION	OVERLOAD	About 150% rated output power
	OVERLOAD	Protection type: Constant current limiting, recovers automatically after fault condition is removed
	OVERVOLTAGE	5.75~6.75V	13.8~14.2V	17.25~20.25V	27.6~32.4V	55.2~64.8V
	OVERVOLTAGE	Protection type: Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	T 140ºC typically (U1)Detect on main control IC
	OVER TEMPERATURE	Protection type :Hiccup mode, recovers automatically after fault condition of removed
ENVIRONMENT	WORKING TEMP.	-10 ~ +60°C (Refer to "Derating Curve") 20 ~ 90% RH non-condensing
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-20-+85°C, 10~95% RH
	TEMP. COEFFICIENT	±0.03%/ºC (0~50ºC)
	VIBRATION	10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY & EMC (Note 4)	SAFETY STANDARDS	UL60950-1,TUVEN60950-1 approved, Design refer to EN50178
	WITHSTAND VOLTAGE	l/P-0/P:3KVAC
	ISOLATION RESISTANCE	l/P-O/P: 100M Ohms / 500VDC / 25ºC 70% RH
	EMC EMISSION	Compliance to EN55011, EN55022 (CISPR22) Class B, EN61000-3-2,-3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6, 8,11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A
OTHERS	MTBF	681.7Khrsmin. MIL-HDBK-217F(25ºC)
	DIMENSION	944925mm (WHD)
	PACKING	0.083Kg;120pcs/10.96Kg
NOTE	1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3.Tolerance : includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment.The final equipment must be re-confirmed that it still meet EMC directives. For guidance on how to preform these EMC test, Please refer to " EMI testing of component power supply.

Prod Model:	PS-15
Frequency Range:	47-63Hz
Warranty:	2 Years
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CE
Output Type:	85~264VAC 120~370VAC
Output Power:	14W/15W
Input Voltage:	85~264VAC 120~370VDC
Brand:	Elecal
