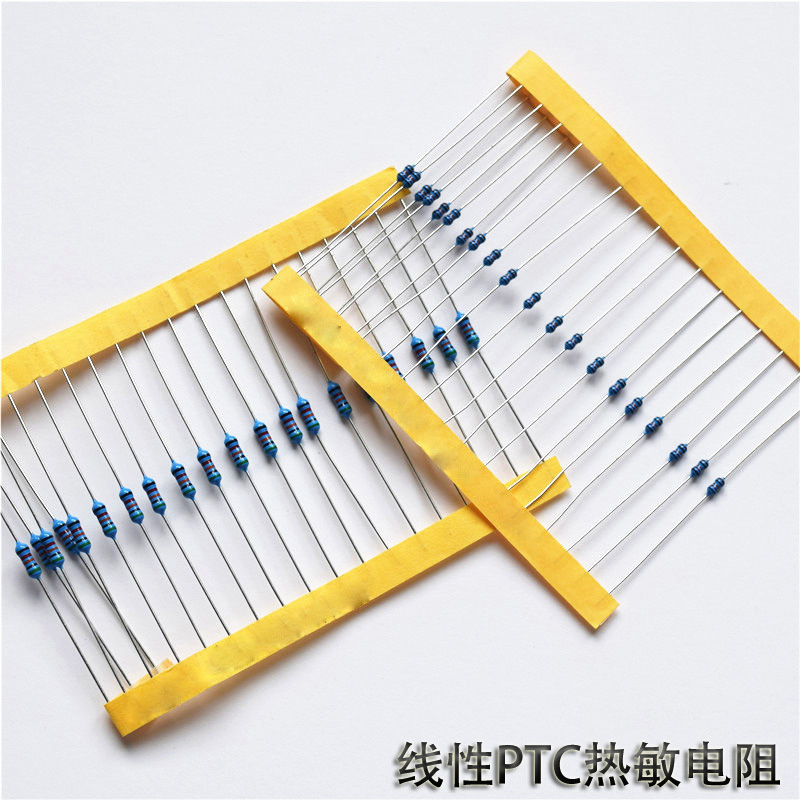

PTC Temperature Linear Thermistor with 100 Ohm

Name: PTC Temperature Linear Thermistor with 100 Ohm
Brand: all-electronics-online.com
SKU: 787425095
Availability: InStock
Rating: 4.3 (84 reviews)

Price:	US $ 0.125-0.16/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

PTC Temperature Linear Thermistor with 100 Ohm

Specification

R25 Resistance	100 Ohm
Resistance Tolerance	5%
Operating Temperature	-40ºC-+180ºC
Temperature Coefficient	4000PPM
Dissipation Factor	≥2.0mW/ ºC
Technology	Wirewound
Material	Platinum+ Nicekel + Foil
Lead type	Leadless
Craft	Ordinary wire wound
Shape	Cylinder
Tpye	Thermal Resistor
Feature Type	Carbon Film Resistor
Usage	Temperature Measurement Temperature Control Temperature Compensation

Usage

It is wildly used to temperature control,temperature measure and temperature compensation for communications, automobiles, instruments, computers, house appliance etc.

Feature
1. Manufacture in physical technology with PTC material to ensure good stability.
2. The resistance is increasing linearly with the temperature increasing to enable the circuit design to be sample without linear compensation.
3. Can work under the -40ºC~180ºC.
4. Good compatibility.
5. Fast detect on temperature and high sensitive.
6. Small size and durable structure that can use in various motion sensor; Standard outlook( meet with the standard of RJ resistance size ) that can adapt to automated installation of printed circuit board .
7. Can replace PT 100 &PT1000 platinum resistance under 180ºC.

HW-68 Thermistor (Regular)

Model	R25 Resistance	Temperature Coefficient	Resistor Tolerance
MZ68-1/6W	55.4Ω	3900PPM	1% 3%
	100Ω	4000PPM	5%
	109.7Ω	3900PPM	1% 3%
	150Ω	4000PPM	5%
	365Ω	2400PPM	3%
	390Ω	3000PPM	3%
	400Ω	4000PPM	3%
	1KΩ	30000PPM	5%
	1.1KΩ	3900PPM	1% 3%
	2KΩ	3000PPM	1% 5%
	2KΩ	4000PPM	3%
	2KΩ	4500PPM	1%
	3kΩ	3000PPM	5%
	5KΩ	3000PPM	5%
	10KΩ	2000PPM	1% 5%
	10KΩ	3000PPM	1% 5%

MZ68-1/4W	6.5Ω	4000PPM	5%
	10Ω	4500PPM	5%
	13.6Ω	4000PPM	5%
	95Ω	2000PPM	3%
	105Ω	2000PPM	3%
	110Ω	2000PPM	5%
	185Ω	2000PPM	3%
	190Ω	1500PPM	3%
	200Ω	2800PPM	3%
	270Ω	2800PPM	3%
	390Ω	1500PPM	3%
	2KΩ	4500PPM	1%
	20KΩ	2000PPM	5%
	50KΩ	2000PPM	5%

Prod Model:	HW68-100
Model Number:	Hw68-1/6W
R25 Resistance:	100 Ohm
Resistance Tolerance:	5%
Temperature Coefficient:	4000 Ppm
Operating Temperature:	-40-+180 Degree
Technology:	Wirewound
Dissipation Factor:	≥2.0MW/ ºC
Lead Type:	Leadless
Craft:	Ordinary Wire Wound
Packaging:	10 Pieces in a Row or Options by Customers
Resistance:	Sensitive Resistor
Function For Resistance:	Protective Resistor
Installation:	SMD Resistor
Package Type:	Throught Hole
Type:	Thermal Resistor
Material:	Platinum+ Nicekel + Foil
Application:	Temperature Accurate Measurement
Brand:	Hw
