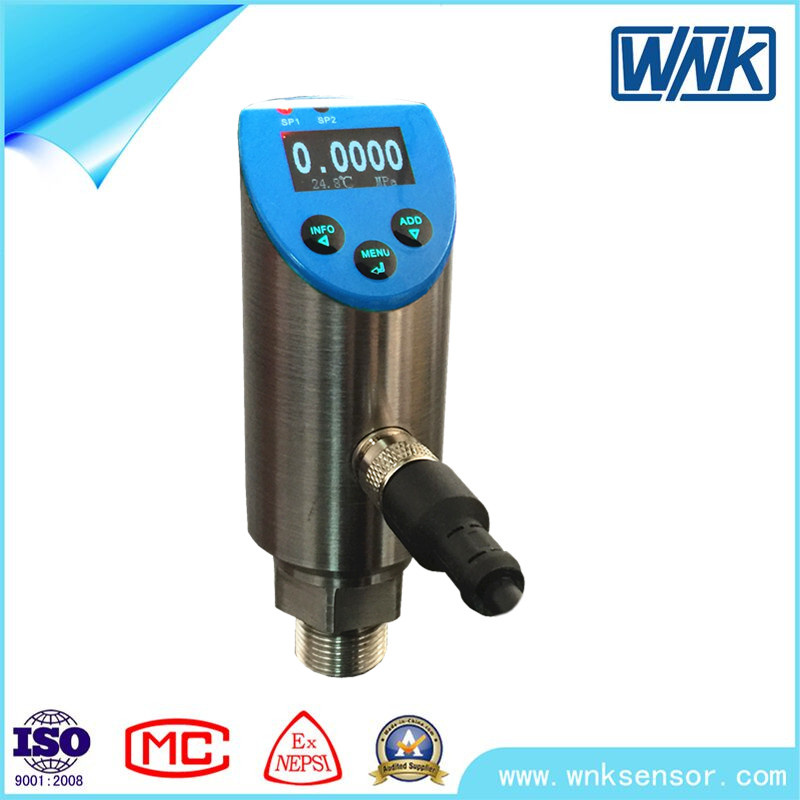

SPS Intelligent Electronic Pressure Switch with DisplayThe pressure switch SPS is designed for pressure monitoring and measure-ment in liquid and gaseous media. The SPS is suited for general industrial applications such as machine and plant engineering, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one and the same device. In its standard configuration it has two switching outputs (PNP or NPN). In addition, there are configurations available with an analog output signal (0...20mA| 420 mA or 0...5V| 010 V) as well as with RS485 Link.
Features - Intelligent Electronic Pressure Switch :1. Gas and liquid pressure measurement
2. PNP switching, voltage and current outputs
3. Switching points settable
4. Switching can be set normally open / normally closed
5. Supporting Switching delay
6. Various analog output ways available
7. Displaying pressure peak value and environment temperature
8. Analog output span settable
9. OLED self-luminous display
10. Display turnable 180°
11. Housing with electrical connection against process connection rotatable 330°
12. Industrial touch button
13. Various display pressure units
14. Parameters setting up for Password protection
15. Support MODBUS communicationSpecification - Intelligent Electronic Pressure Switch: | Product name | Electronic Smart Pressure Switch |
| Measuring range | -0.10.1MPa to 60MPa |
| Measuring media | Gas & Fluid |
| Accuracy | ≤0.5%FS |
| Supply power | 1230V DC |
| Temp. error | ±0.02%FS/ºC(Zero/ Full Span) |
| Long-term stability | ±0.3%FS/Year |
| Analog output accuracy | ≤±0.2%FS |
| Output configurations | 2×PNP + 0V~5VDC/10VDC + MODBUS |
| 2×PNP + 0mA/4mA~20mADC + MODBUS |
| Switch current | 1.0A(Max.) |
| Switching type | Normally open / closed (settable) |
| Switching reponce time | <10ms |
| Swith delay | 0.00s~1000.0s |
| Switching motion mode | Delay or windows mode |
| Analog signal output and max ohmic load RL | Current output 0/4...20mA, 20...4mA RL≤0.5k |
| Voltage output 0...5/10v, 5/10...0v RL>10k |
| Screen display | OLED |
| Menu language | Chinese and English |
| Switch indicating | 2 Red LED |
| Displaying units | psi,bar,mbar,Pa,kPa,MPa |
| Buttons | 3 blue back-lighted touch buttons |
| Supplementary variables displaying | Environment temperature, analog output value, max peak value,mini peak value |
| Supplementary variables displaying way | Fixed displaying or switch display by INFO button |
| Working temperature | -30-80ºC |
| Media temperature | -30-80ºC |
| Storage temperature | -40ºC~80ºC |
| Electromagnetism compatible | GB/T 17626.2/3/4-2006 |
| Shock resistance | ≤10g/10Hz...500Hz(IEC 60068-2-6-2007) |
| Vibration resistance | ≤50g/11ms(IEC 60068-2-27-2008) |
| Protection class | IP65 |

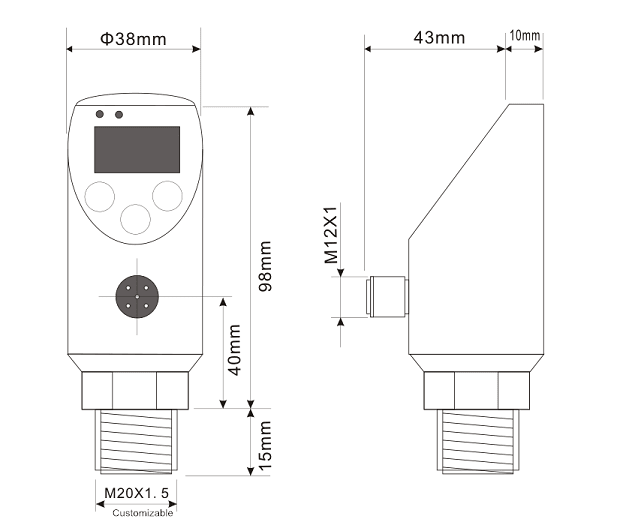

Dimensions - Intelligent Electronic Pressure Switch:
