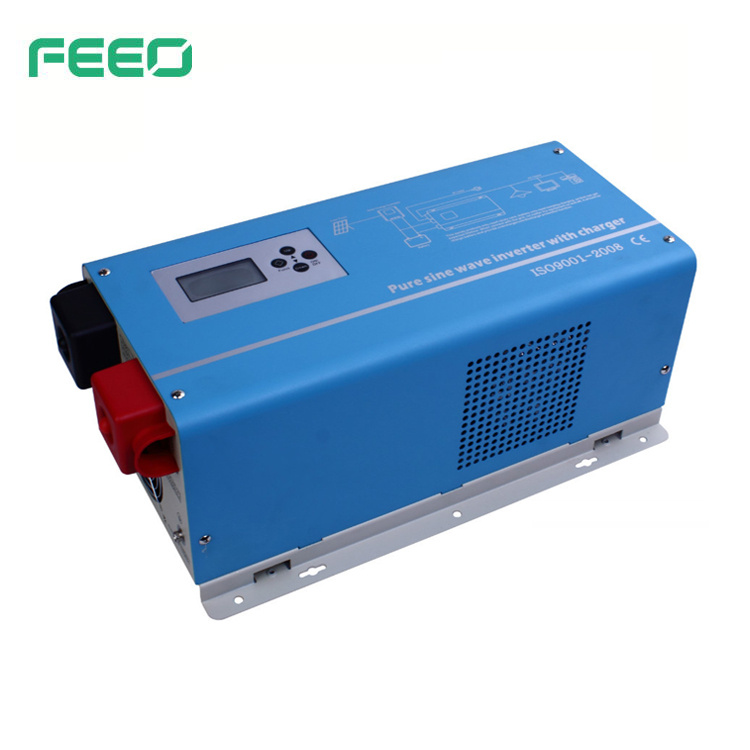

Pure Sine Wave AC To DC Single Phase Power Inverter Product Description
Inverter Features:
Pure sine wave output for compatibility with loads of different types;
Visualization of operation status of the equipment through a digital LCD;
Excellent performance because of double MCU intelligent design;
A wide range of input voltage, accurate output and all automatic voltage stabilization;
Settable battery type and charge current for the charge management of batteries of different types of FT-B;
Settable mains supply preferred mode, energy-savingmode and battery preferred mode for easy meeting of the needs of different users;
Overall protection functions (battery overvoltage protection, battery under voltage protection, overload protection, short circuit protection and over temperature protection)Inverter Parameters:| Model: FT | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | 8KW |
| Rated power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 8000W |
| Battery | Rated voltage | 12VDC/24VDC/48VDC | 24VDC/48VDC | 48VDC/96VDC |
| Charge current | 30A(default)-C0-C6 |
| Battery type | U0-U7 |
| Input | Voltage range | 85-138VAC/170-275VAC |
| Frequency | 45-65Hz |
| Output | Voltage range | 110VAC/220VAC ±5%(inversion mode) |
| Frequency | 50/60Hz ±1%(inversion mode) |
| Output wave | Pure sine wave |
| Conversion time | <10ms (typical load) |
| Efficiency | >85% (80% resistive load) |
| Overload | 110-120%/30s,>160%/300ms |
| Ambient temperature for operation | 0-40ºC |
| Ambient temperature for storage | -15-+50ºC |
| Product size: L*W*H(mm) | 486*247*179 | 555*307*189 | 653*332*260 |
| Package size: L*W*H(mm) | 550*310*230 | 640*370*240 | 715*365*310 |
Packaging & ShippingInverter Package:Standard export carton packing Inverter Delivery Time:
3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Inverter Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
YUEQING FEEO ELECTRIC CO.,LTD.
is one of the leading manufactures and exporters in the field of solar PV products withmanufacturing facilities in Mainland China. We are specialized of DC MCB, DC SPD, DC FUSE, DC ISOLATOR, MC4.
FAQ
Q: If I'm interested in your Inverter when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Can I get a sample before the order because I really don't how is your Inverter quality?
A:Of course!We also think sample order is the best way to build the trust.And in our company we offer free sample service!Please send the enquiry to us and get the free sample!
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.
Q:How's the warranty period for your Inverter?
A:We offer one year warranty for our customer.
