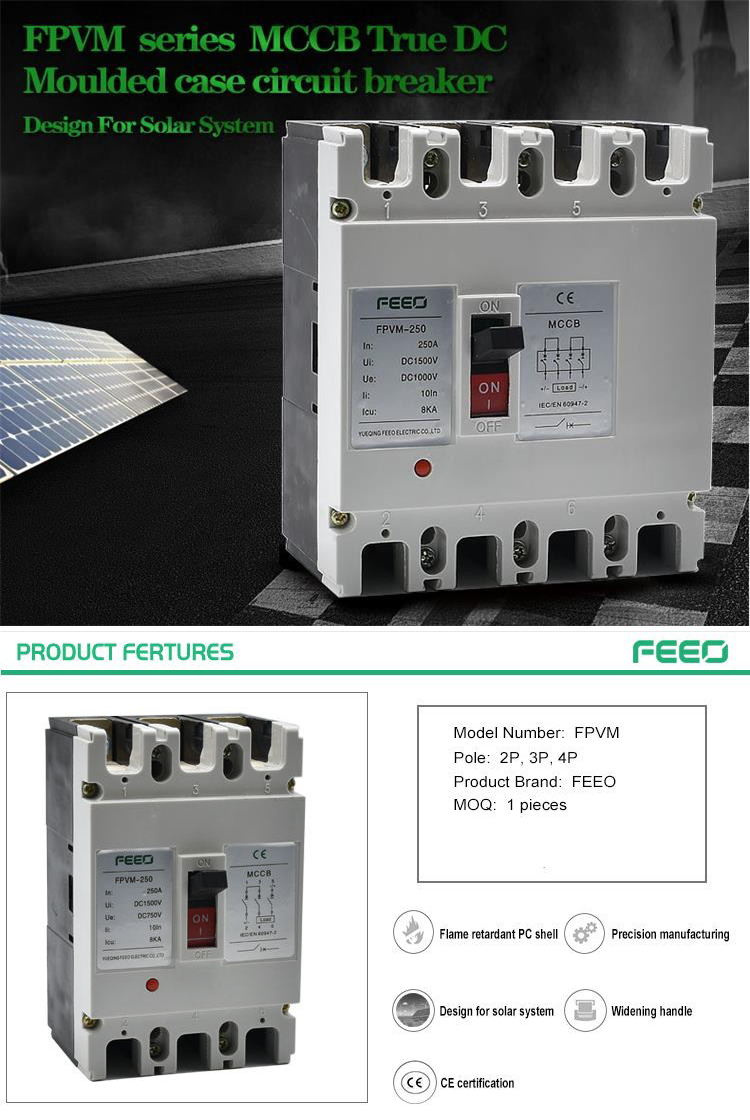

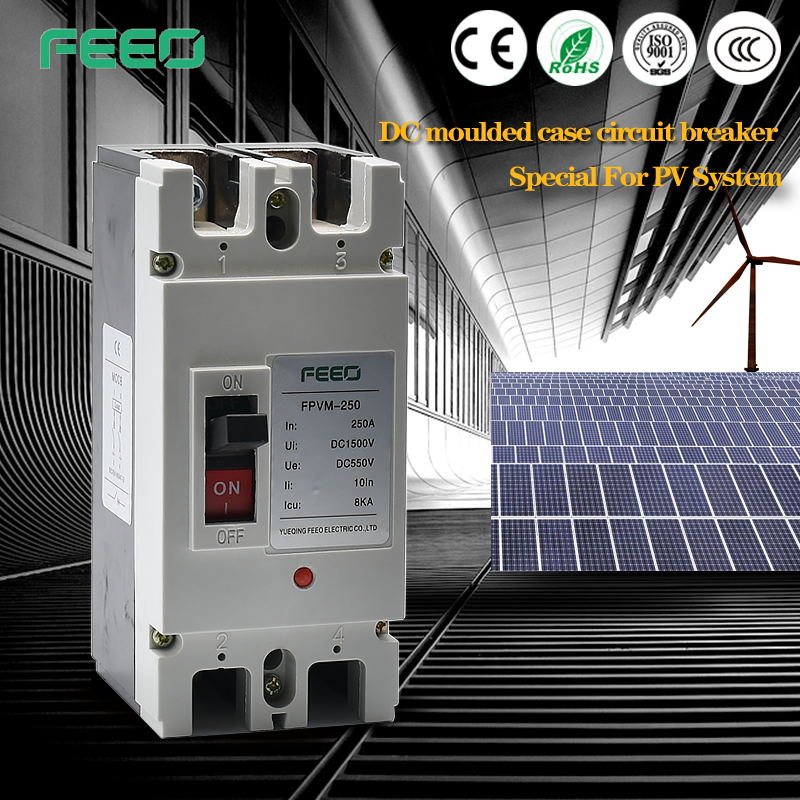

PV System Green Energy 400A 630A 2p 4p 900VDC MCCB Product Description
DC MCCB Application:
FPVM series Moulded Case Circuit Breaker is designed to distribute power and protect the circuit and power equipment against overload in solar system. It is apply to rating current 1250A or less,direct current rating voltage 1500V or less.Products according IEC60947-2, GB14048.2 standard.
DC MCCB Parameters:
| Item | DC MCCB |
| Code | FPVM-125 | FPVM-250 | FPVM-400 | FPVM-630 | FPVM-800 | FPVM-1250 |
| Pole | 2P,3P,4P | 2P,3P,4P | 3P,4P | 3P,4P | 3P,4P | 3P,4P |
| Voltage | 250VDC,
550VDC,
750VDC,
1000VDC | 250VDC,
550VDC,
750VDC,
1000VDC | 750VDC,
1000VDC | 750VDC,
1000VDC | 750VDC,
1000VDC | 750VDC,
1000VDC |
| Current | 16A,20A,
25A,32A,
40A,50A,
63A,80A,
100A,125A | 100A,125A,
140A,160A
180A,200A,
225A,250A | 250A,315A
350A,400A | 400A
500A
630A | 630A
700A
800A | 800A,
1000A,
1250A |
| Standard | IEC/EN60947 |
| Breaking Capacity | 8kA,10KA | 8kA,10KA | 15KA | 15KA | 15KA | 15KA |
| Characteristic Curve | C |
| Working Temperature | "-5°"to +40° |
| Protection Degree | IP20 |
| Electrical life | More than 8000times |
| Mechanical life | More than 2000times |
| Installation | 35MM DIN RAIL |
| Accessory | YES |
| Installation Altitude | ≤2000M |

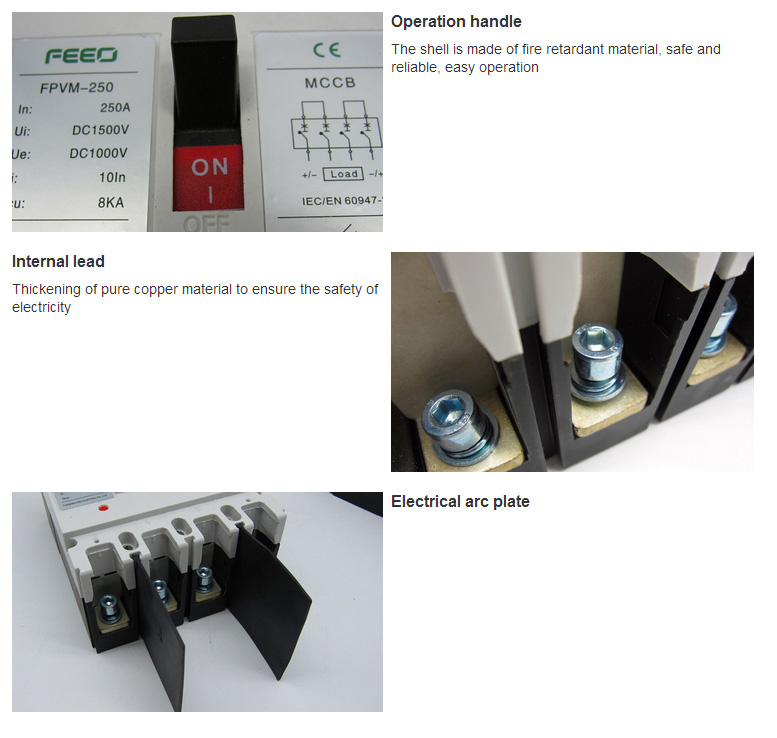

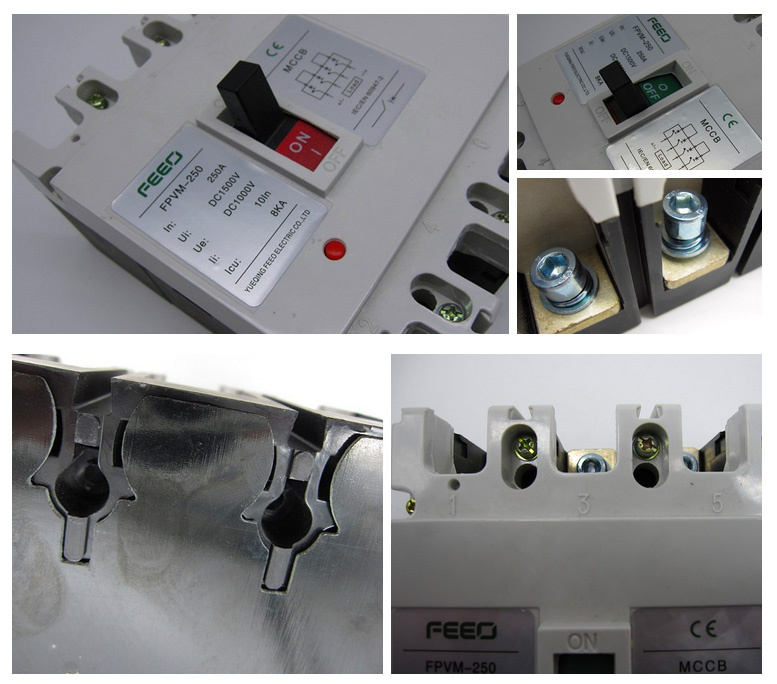

Detailed Images

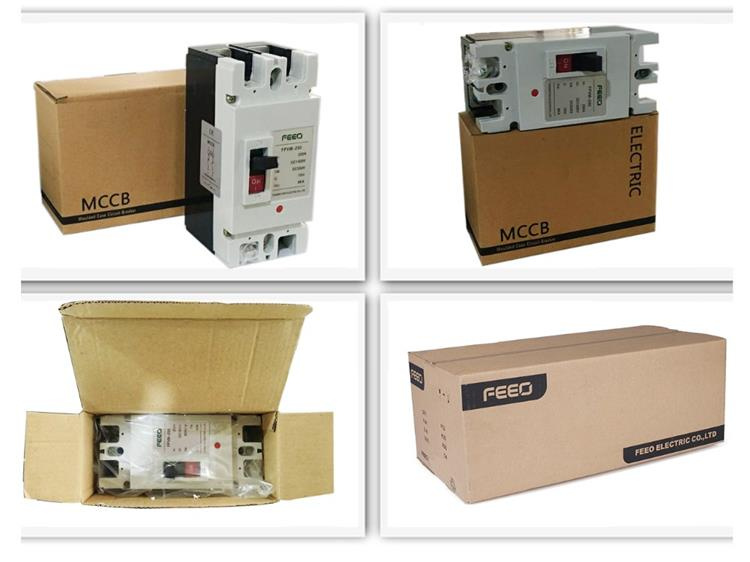

Packaging & Shipping
DC MCCB Package:Standard export carton packing
DC MCCB Delivery Time:
3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
DC MCCB Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
YUEQING FEEO ELECTRIC CO.,LTD.
is one of the leading manufactures and exporters in the field of solar PV products withmanufacturing facilities in Mainland China. We are specialized of DC MCB, DC SPD, DC FUSE, DC ISOLATOR, MC4.
FAQ
Q: If I'm interested in your Solar MCCB when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Your Solar MCCB seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!
A: Our DC MCCB is special for Solar system all the parts in the MCCB are high quality customized.Not all the DC MCCB are Solar MCCB!
Q:Can I get a sample before the order because I really don't how is your DC MCCB quality?
A:Of course!We also think sample order is the best way to build the trust.And in our company we offer free sample service!Please send the enquiry to us and get the free sample!
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.
Q:How's the warranty period for your DC MCCB?
A:We offer one year warranty for our customer.

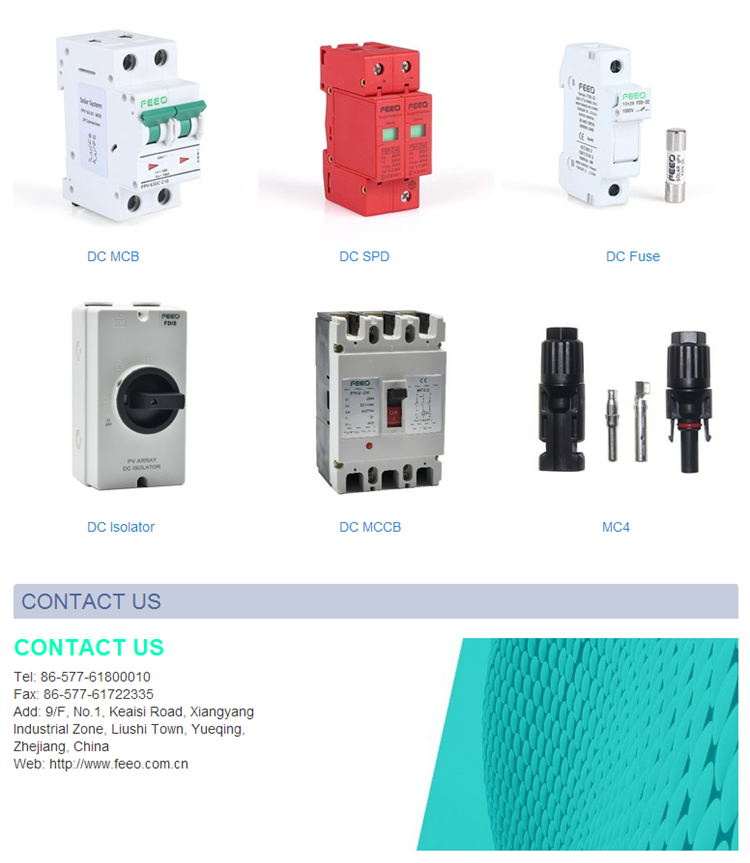

Hot Product
Our company is a manufacturer of Solar Electrical Products/DC Circuit Breaker/DC SPD/DC FUSE/Waterproof Box with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries.
Established in 2000, YUEQING FEEO ELECTRIC Co., Ltd. Specializes in manufacturing Solar PV product. Located in WENZHOU we enjoy convenient access to major transportation networks. Our company covers an area of 2000m² And has around 70 staff members. Furthermore, all our products are manufactured with advanced equipment and strict QC procedures in order to ensure high quality. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.
