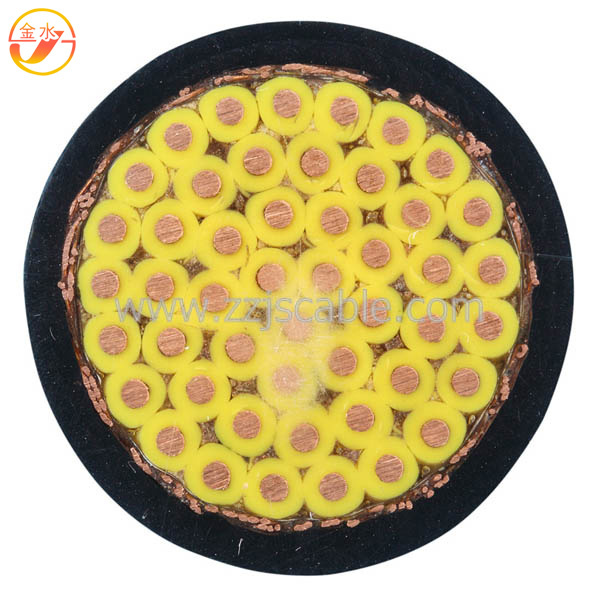

PVC Copper Electric Flexible Rubber XLPE Insulated Control Cable
| Price: |
US $ 0.5-3.5/Meter |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T,D/P |
1. Standard
The control cable can be produced according to the standard GB9330-1988,IEC,DIN,BS,and the factory can also manufacture the cables in accordance with other standards.
2.Scope of Application
The control cable are suitable for the wiring of electrical controlling equipments and instrument,monitoring and controlling return circuit,electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.
3.Type& Specification
4.Service Conditions
(1)The long-time working temperature of conductor of PVC insulated cable is 70oC
The long-time working temperature of conductor of XLPE insulated cable is 90oC
(1) The temperature for laying the cables can not be lower than 0oC.Permissible bending radius(r):unarmoured cable:r≥6D;(D: outer diameter of the cable);armoured or copper-tape screened cable:r≥12D;shielded flexible cable:r≥6D
| Type | Name | Section Area(mm2) | No. of Core | Application Site |
| KVV | Copper Conductor,PVC Insulated and Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-16 | Permanent installation indoors,in cable ditches or pipes |
| 4 6 | 2-14 |
| 10 | 2-10 |
| KVVP | Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable | 0.75 1.0 1.5 2.5 | 2-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
| 4 6 | 2-14 |
| 10 | 2-10 |
| KVVP2 | Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable | 0.75 1.0 1.5 2.5 | 4-10 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
| 4 6 | 7-61 |
| 10 | 4-10 |
| KVV22 | Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force |
| 4 6 | 4-14 |
| 10 | 4-14 |
| KVVR | Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable | 0.5-2.5 | 4-61 | Installation indoors where flexibility and movability are required |
| KVVRP | Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable | 0.5 0.75 1.0 | 4-61 | Installation indoors where flexibility shielding and movability are required |
| 1.5 2.5 | 4-48 |
| KYJV | Copper Conductor,XLPE Insulated and PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-16 | Permanent installation indoors,in cable ditches or pipes |
| 4 6 | 2-14 |
| 10 | 2-10 |
| KYJVP | Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
| 4 6 | 2-14 |
| 10 | 2-10 |
| KYJV22 | Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force |
| 4 6 | 4-14 |
| 10 | 4-10 |
| KYJVP2 | Copper Conductor,XLPE Insulated,Copper tape Screened,PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
| 4 6 | 4-14 |
| 10 | 4-10 |
| KYJVR | Copper Conductor,XLPE Insulated,PVC Sheathed Flexible Control Cable | 0.5-2.5 | 4-61 | Installation indoors where flexibility and movability are required |
| KYJVRP | Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable | 0.5 0.75 1.0 | 4-61 | |
| | | 1.5 2.5 | 4-48 | Installation indoors where flexibility shielding and movability are required |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Brand: |
Jinshui |
HENAN JINSHUI WIRE&CABLE Co., Ltd., subordinated to the Jinshui Cable Group Co., Ltd., is an international trading company professional in the research and development, manufacturing and sales of wires and cables.
Jinshui Cable Group, founded in 1983 and formerly known as Zhengzhou 2ND Cable Plant, is the largest cables and wire and electrical products R&D and production base, sales and export base, and CNC logistics distribution base in central China, as well as Top-10 of China in comprehensive cables and wire strength.
The company covers an area of 360000 square meters and the fixed assets of RMB 680 million; Having main production equipment of more than 300 sets (units), measuring and testing equipment of more than 50 sets (units), and reaching the annual production capacity of RMB 5 billion. The company has the most advanced production equipment and a high-quality production management team. Its "Jinshui" brand wire, cable and electrical products are widely used all over the world in real estate, transportation, energy, and power transmission and other fields, and well received by customers.
The company has a full range of products, including various high, medium and low voltage cable wire products from 300V to 220kV and all kinds of electrical products, where the annual production capacity of cables and wire can reach up to 800, 000 km. The company has more than 500 varieties of products in more than 5, 000 kinds of specifications, including high conductive green cable, XLPE insulated cables and wire, PVC insulated cables and wire, rubber insulated cables and wire, aluminum alloy cable, special cable, flame retardant & fireproof cable, mineral insulated cable, PVC cable material, bare wire, oxygen-free copper rod, electrician round aluminum rod and aluminum alloy rod, as well as electrician and electrical supporting products. Those products implement IEC, DIN, BS, GB, ASTM, JIS, and CSA and other standards.
The company took the lead in the same industry to pass the ISO9001 international quality system certification, ISO14001 environmental management system certification and ISO18001 occupational health and safety management system certification, and holds the People's Republic of China import and export qualification certificate and railway material supplier access certificate. The company is a recommended supplier for the national urban and rural power grid transformation, recommended supplier for government procurement, supplier for military material procurement. Those products have passed or obtained China Compulsory Certification (CCC certification), production licenses, mining products safety certification and fire-retardant products permit for flame retardant products and so likes. At present the company's products have been exported to more than 30 countries and regions including Singapore, Malaysia, Bangladesh, Pakistan, Nigeria, Sudan, Somalia, Britain, Australia, the United States and Italy.
Build a century-old enterprise of China, and strive for a world-class brand. The company will continue adhering to the service principle of "quality first, customer oriented" to carry forward the enterprise spirit of pioneering and keeping improving and innovating to provide better products and better services for users and the community!
