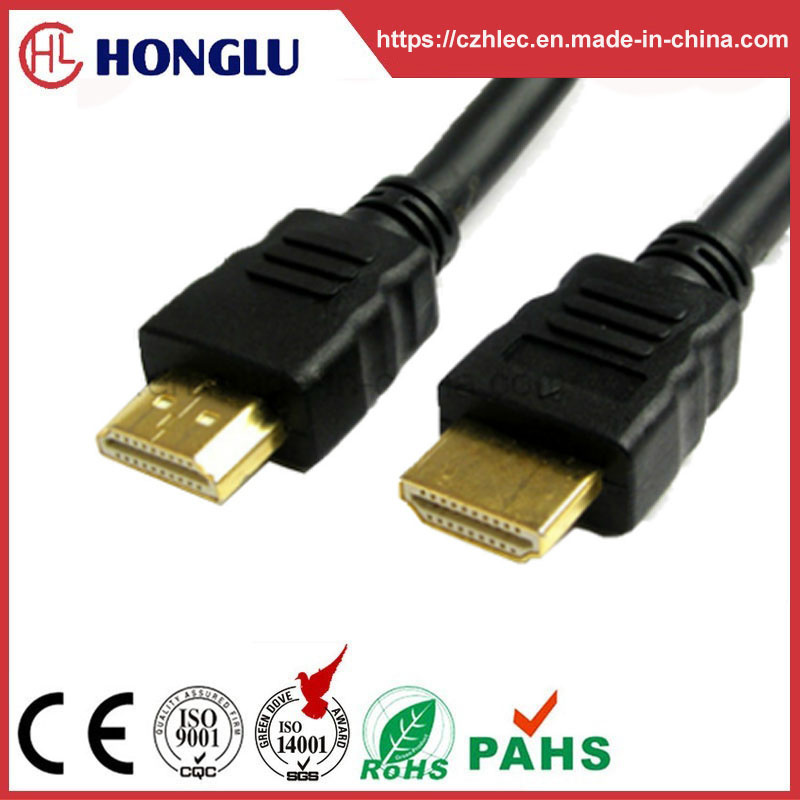

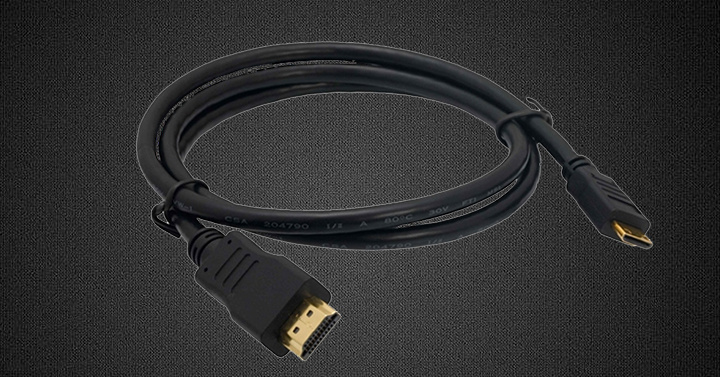

PVC Jacket Male HDMI to Male HDMI Cable (SY085)

Name: PVC Jacket Male HDMI to Male HDMI Cable (SY085)
Brand: all-electronics-online.com
SKU: 615860414
Availability: InStock
Rating: 4.7 (82 reviews)

Price:	US $ 0.83-0.88/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Constitution name	Available configuration
Conductors	1. Oxygen-free copper 2. Bare copper 3. Copper clad steel
Insulation (inner jacket)	1. HD-PE
First shielding	1. 100% Aluminum foil
Second shielding	1. 100% Aluminum foil
Third shielding	1. AL+MG braid
Insulation (Outer jacket)	1. PVC jacket 2. Nylon sleeve
Connectors	1. Zn 2. Al alloy Metal shell type
Contacts	1. Gold plated 2. Nickel plated
Configuration	1. 19+1 pin 2. 15+1 pin
Color	1. black 2. white 3. fill needed color
Available gauge	1. 24AWG 2. 26AWG 3. 28AWG 4. 30AWG
OD (outer dimension)	1. 9.0mm 2. 8.0mm 3. 7.3mm 4. 6.0mm
Available versions	1. V1.3 2. V1.4 3. V2.0
Available lengths	1. 1m 2. 1.2m 3. 1.5m 4. 1.8m 5. Customized

Advantages
1.High pure Copper conductor for maximum conductivity
2.Gold-plated connectors for excellent conductivity, maximum signal transfer and corrosion resistance
3.Digital video and audio transfer in one connection
4.Triple shielding(2*Foil and Braid) for maximum rejection of EMI and RFI
5.Suitable for use in HDTV, Home Theater, DVD player, projector, PS3 and other HDMI devices
6.Transfer Rate: 10.2Gbps
7.Function: 3D, (up to)1080P, V1.3/V1.4

OEM or ODM are welcome!

Prod Model:	SY085
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

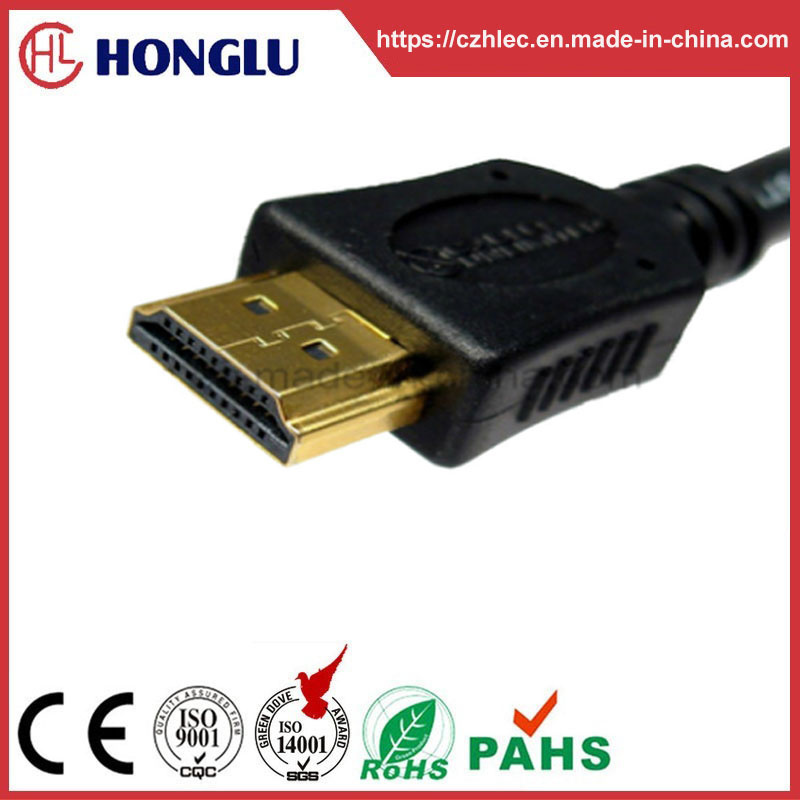

Connectors:	19pin/24K Gold Plated/Male to Male/HDMI to HDMI
Conductor:	High Pure Copper/High-Grade Oxygen Free Copper
American Wire Gauge:	24/26/28/30
Triple Shielding:	2* Aluminium Foil+Aluminium Mg Braid
Long Length:	(up to)20m(65.6feet)
Function:	3D, (up to)1080P, V1.3/V1.4
Connector:	HDMI
Material Shape:	Round Wire
Wire Core Material:	Red Copper Wire
Certification:	RoHS, Ce, ISO9001, PAHs & SGS

Changzhou Honglu Electronic Co., Ltd., established in September 2000, Changzhou City, is a joint-stock company which combined with product research, production and sales. Our company has 18 years of development history, located in the center of the Yangtze River Delta, near the port of Shanghai.

We are specialized in the production of HDMI cable, Coaxial cable and Ethernet cable. Moreover, Audio&Video Cable, USB cable, and other power cable also becoming our new development product.

Quality and service is always the core concept of our company. We have more than 25 patents. We use the world's advanced production and testing equipments, so that the quality of products meets the international requirements. Our HDMI cable, A/V cable, Coaxial cable, USB cable and Scart cable have passed the RoHS (SGS)certificate, PAHs(SGS) certificate and LSZH(SGS) certificate. Our products are exported to France, Japan, Brazil, Canada and other overseas countries, well received by customers.

In order to satisfy customers' requirements, we will make great efforts to develop new products and improve our service. We hope to cooperate with all friends from all over the world. Welcome to our factory! Don't hesitate to contact us for more information.

1. Strict quality control and creative R&D from 12 professional personnel

2. Numerous production quantity from support of 500 production stuff.

3. Considerate service from salesmen.

4. Competitive price but premium quality (We can save clients cost and time, and customers have no need to wory about quality issues because we are both production and trading company)

5. Our products are quite well received by people in buyer's market whether it is for wholesale or retail, thus buyers earn considerable profits.

We sincerely hope to work with domestic and foreign clients in the principle of mutual benefit, common development.
