PVC Terminal Sleeve for Terminals Tubularlugs

Name: PVC Terminal Sleeve for Terminals Tubularlugs
Brand: all-electronics-online.com
SKU: 791567995
Availability: InStock
Rating: 4.3 (81 reviews)

Price:	US $ 2/Bag
Min Order:	1/Bag
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	V
Insulated Material:	Nylon
Terminal Material:	Copper
Max Electrical Rating:	300V
Temperature:	105 Degree
Material:	Copper
Application:	Conduct Electricity
Type:	Terminal Sleeve
Shape:	Terminal Sleeve
Character:	Terminal Sleeve
Interface Type:	Terminal Sleeve
Brand:	Deson

Product Description

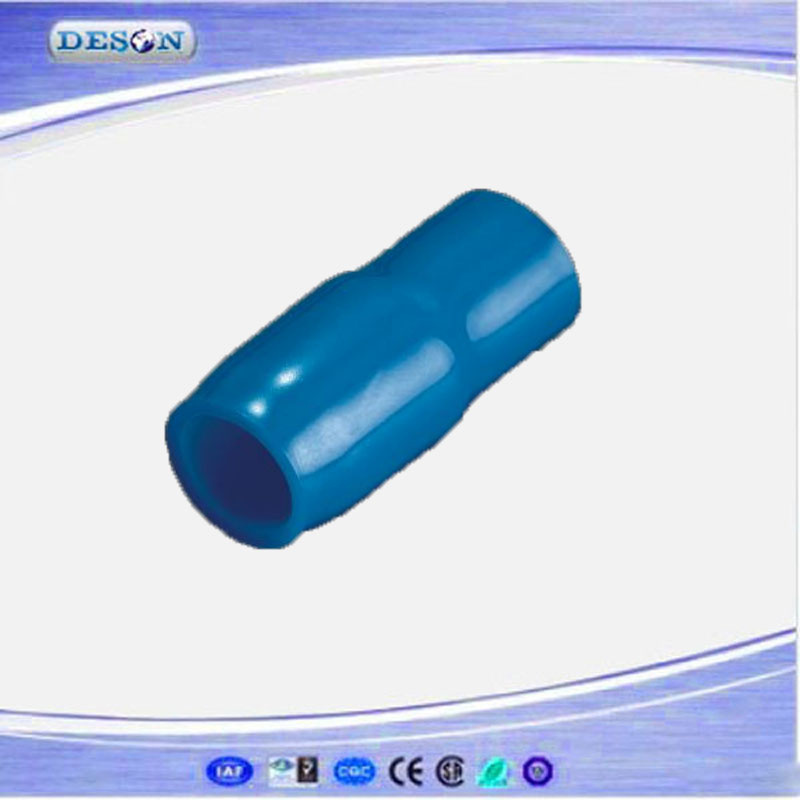

PVC Terminal Sleeve For Terminals Tubularlugs

Material	Copper
Plating	Tin
Insulation	Non
Color
Working Temp	-40 to +105°C
Cable Range	A.W.G.:22-16 (0.5-1.5mm²),16-14(1.5-2.5mm²), 14-12(2.5-4mm²), 12-10(4-6mm²)
MOQ	Small orders accepted
Payment Term	A.L/C,T/T (Bank Transfer, Wire Transfer)
	B.Western Union
	C.Paypal (For samples fee & Courier cost)
	Terms of Payment: FOB Shanghai / Ningbo;CIF;CNF;etc
Delivery Time	A.By Courier: 4-7 Working days by special offer
	B.By Air: 7 Working days at appointed airport
	C.By Sea: 20-25 Working days at appointed port
Supply Ability	2 x 20 feet containers per week
Packaging Details	A.Common Packing:100pcs + polybag + label + inner box+ export carton
Packaging Details	B.Customized Packing:OEM Label,Inner Box,Blister,etc
HS Code	8536900000
Origin Country	Zhejiang, China
Test Report	CE ROHS

color red green blue yellow	Dimension
	D1	D2	D3	L	F	B	C
	mm	mm	mm	mm	mm	mm	mm
V-1.25	2.8	3.3	3.1	13	6	7	0.6
V-2	3.3	4.5	3.7	14	7	7	0.7
V-3.5	4.2	5.7	4.1	17	9	8	0.8
V-5.5	4.8	5.7	5.2	17	9	8	0.8
V-8	6.2	7.2	6.2	19	10	9	1.0
V-14	7.5	10	8	25	14	11	11
V-22	10.5	12	9.5	30	15	15	1.2
V-38	12.5	14	11.8	34	17.5	16.5	1.5
V-60	15	16.8	13.5	39	20	19	1.5
V-70	16	17.5	14.5	43	22	20	1.5
V-80	17	19	16	47	25	22	1.6
V-100	19	22	18	54	30	24	1.7
V-125	21	24	20	57	32	25	1.8
V-150	23	24.5	22	65	35	30	2.0
V-200	27	32	24	65	35	30	2.0
V-240	29	38	26.5	77	35	39	2.5
V-325	29	38	29	77	37	40	2.5
V-400	42	45	36	85	46	41	2.5
V-500	46	48	40	88	41	42	2.5
V-630	52	54	44	92	50	47	2.5
