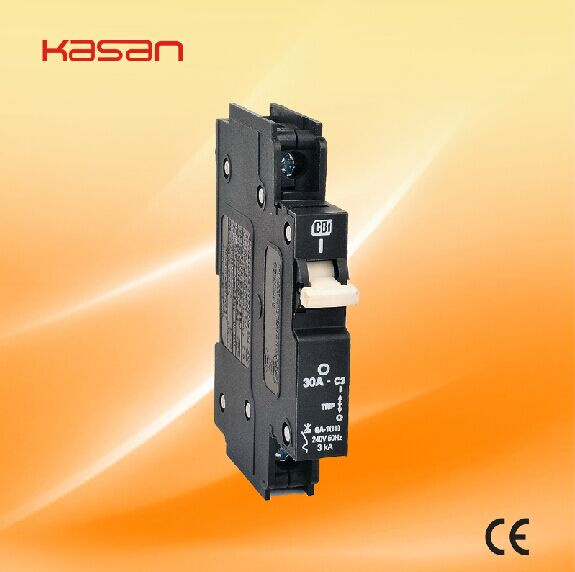

QA Hydraulic Magnetic Circuit Breaker Black

Name: QA Hydraulic Magnetic Circuit Breaker Black
Brand: all-electronics-online.com
SKU: 800439935
Availability: InStock
Rating: 4.5 (135 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QA
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Installation:	Fixed
Structure:	MCB
Poles Number:	1
Certification:	CCC
Arc-extinguishing Medium:	Hydraulic

Product Description

QA Series CBI Hydraulic Magnetic circuit breaker

1.Application

QA Series is mainly for suitable for overload and short circuit protection. It adopt hydraulic magnetic trip instead bimetal .So it has a high sensitivity and it is also not effected by the ambient temperature . It is especially used for illumination and distribution in industry and commerce. They are mainly used for overload and short-circuit protection within the circuit of AC 50Hz/60Hz, rated voltage of single pole or double up to 240V, three poles up to 415V. They can also be used for an unfrequent switch-over of the circuit and illumination under normal conditions. They are comply with IEC 157-1973, BC4752-1977 and BS 3871 part 1

2.Specification

1.number of poles :1P, 2P,3P

2.Rated current(A):6,10,16,20,25,30,40,50,63,70,80,90,100

3.Breaking capacity(A):3000

4.Rated voltage(V)110/220(1P), 240/415(2P),415(3P)

5.Rated frequency:50/60HZ

6lectrical life:no less than 6000 operation

7Mechanical life:(O-C)no less than16000 operation
