Detailed Product Description

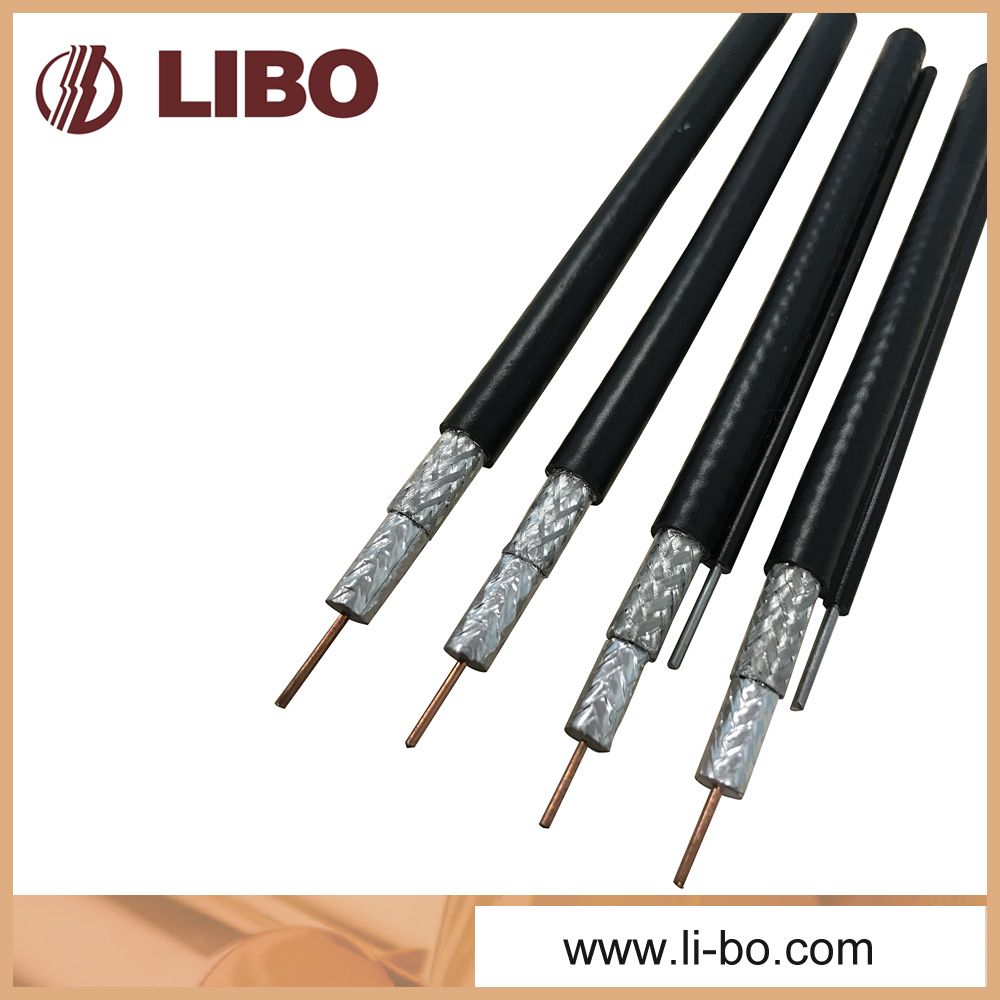

Quad-Shield Rg6 Coaxial Cable Flame Retardant PVC Jacket for CCTV / CATV
Quick Details:
- Flame Retardant RG6 Coaxial Cable
- 18AWG CCS
- Virgin grade polyethylene insulation
- Bonded aluminum foil
- Tri-shield
- Flame retardant PVC jacket
Applications:
RG6 cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.
Center conductor:
18AWG copper clad steel
Nominal diameter: 0.0403"(1.02mm)±0.01(0.0004)
Dielectric:
Gas expanded polyethylene
Nominal diameter over dielectric: 0.18"(4.57mm)
Product description:
21% conductivity copper clad steel (21%CCS).Dielectric core is insulating grade virgin polyethylene. The 1stshield is bonded laminated aluminum tape, the 2nd shield is 0.12x64 braid, the third shield is normal aluminum foil, an then the 4th shield is 0.12x 48 braid. The jacket is flame retardant PVC.
Shield:
1st shield: bonded aluminum tape.
2nd shield: 0.12 aluminum alloy braid wire, 4ends x16 carry.
Maximum ovality: 0.013" (0.33)
3rd shield: normal aluminum foil.
4th shield: 0.12 aluminum alloy braid wire, 4 ends x 16 carry.
Flame retardant jacket:
Nominal diameter over jacket: 7.10mm±0.2mm
Packing:
We provide buyer's label OEM/ODM design service.
Electrical properties:
Impedance : 75±3 ohms
Velocity of propagation: 82% nominal
Attenuation@ 68OF(20oC):
@Frequency MHZ | dB/100 meters(MAX.) |
5 | 2.66 |
55 | 5.25 |
211 | 10.10 |
250 | 11.25 |
270 | 11.48 |
300 | 12.14 |
330 | 12.76 |
350 | 13.15 |
400 | 14.11 |
450 | 15.03 |
500 | 15.93 |
550 | 16.70 |
600 | 17.77 |
750 | 19.69 |
870 | 21.33 |
1000 | 22.97 |
Competitive Advantage:
- RG6 cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.
- RG6 is of low cost, and it is easy to install as well.
- Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
- Libo cable has a stable workforce and engineering team, normal lead-time of 40'FCL quad-shield RG 6 cable is about 7 days.
- Libo cable is equipped with a Provincial-level Research and Development Center, we offer OEM and ODM services.
