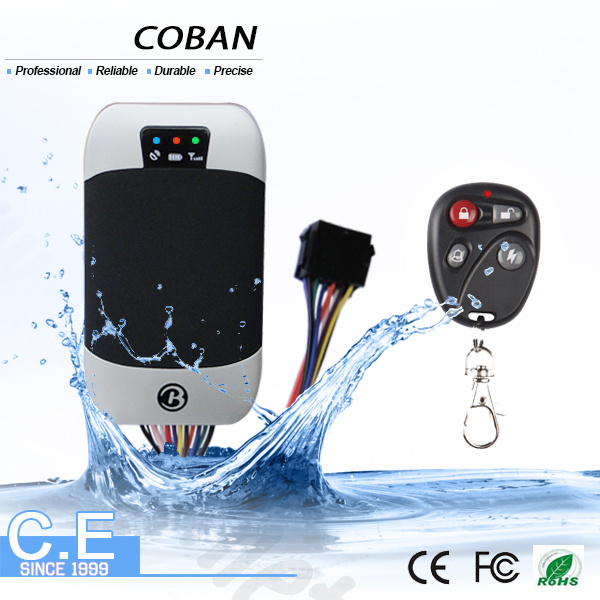

Model: GPS303F
How does the GPS Car Tracker work?
All you need to do is insert a working SIM card, it even has Quad-band Connectivity so it works
Anywhere in the world.
With internal GSM, GPS antenna, this device is easy to hide and install on vehicle or
Motorcycle. It is powered by both internal battery and the automotive battery.
Here is a small list of what it can do for you and your vehicle:
1. Track on Demand - Replies with a TXT message of current latitude, longitude, speed, and time,
As well as an Internet map link to your cellphone to show you exactly where the GPS tracker/your
Vehicle is.
2. Geo-fencing control - When the vehicle moves in/out the preset scope, it will send an SMS alarm
To the authorized phone numbers.
3. Movement and Speed Alert: --The tracker can warn you with SMS message when the vehicle starts to
Move from a stationary status, or when the vehicle is moving faster than a preset speed.
4. ACC alert: --In case of acc on under arm state, the tracker device will send SMS alerts to
Authorized numbers. ( Model B )
5. Stop the Engine- You can send an SMS message to the tracker to cut off the gas and battery
Power, so the engine will remain in an immobilized stated until your remove the alarm status. (
Model C )
6. Fuel check/alert: -- Optional fuel sensor is to detect and report fuel consumption. When fuel is
Decreasing too fast, the GPS device will send fuel alert to prevent fuel leakage or theft. ( Model
C )
7. GPRS- With a GPRS enabled SIM card, you can monitor real-time movement of your vehicle with the
Supplied software on your computer.
8. Internal 1MB memory --- Built-in memory for 16, 000 positions. It also support 2GB SD card.
Applying directions: Personal, Motorcycle, Vehicle.
4 tracking solutions:
- SMS tracking by calling, return google map link
- Absolute street address by SMS
- Free PC based tracking application
Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
Delivery
1. Sample and small order will be delivered within 2-3 working days after the receipt of payment.
2. For order over 500PCS or customized order, lead time will be 5-7 days after the receipt of Payment. Please contact our sales to make sure the current inventory.
| Content | Specification |
| DIM | 8.9×5.0×1.6cm |
| Weight | 65g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS accurancy | 5m |
| GPS start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Car power supply | 12 V -24V |
| Back up battery | Chargeable 3.7V 800mAh Li-ion battery |
| Storage Temp | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
