Rechargeable 12V 100ah Lithium Ion Battery Pack LiFePO4

Name: Rechargeable 12V 100ah Lithium Ion Battery Pack LiFePO4
Brand: all-electronics-online.com
SKU: 690556481
Availability: InStock
Rating: 4.7 (85 reviews)

Price:	US $ 357-554.21/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	oPT120100
Voltage:	12.8V
Weight:	13kg
Working Rate:	1c-3c
Cycle Life(1c/80%):	4000 Times
Battery Size:	323171215mm
Rated Capacity:	100ah
Application:	Energy Storage
Product Name:	LiFePO4(Lithium Iron Phosphate)
Brand Name:	Optimumnano/OEM/ODM
Price Level:	Cheap/Reasonable
Type:	Lithium-Ion Batteries
Usage:	Boat
Nominal Voltage:	12V
Discharge Rate:	High Discharge Rate
Shape:	Cylindrical Battery
Rechargeable:	Chargeable

Product Description

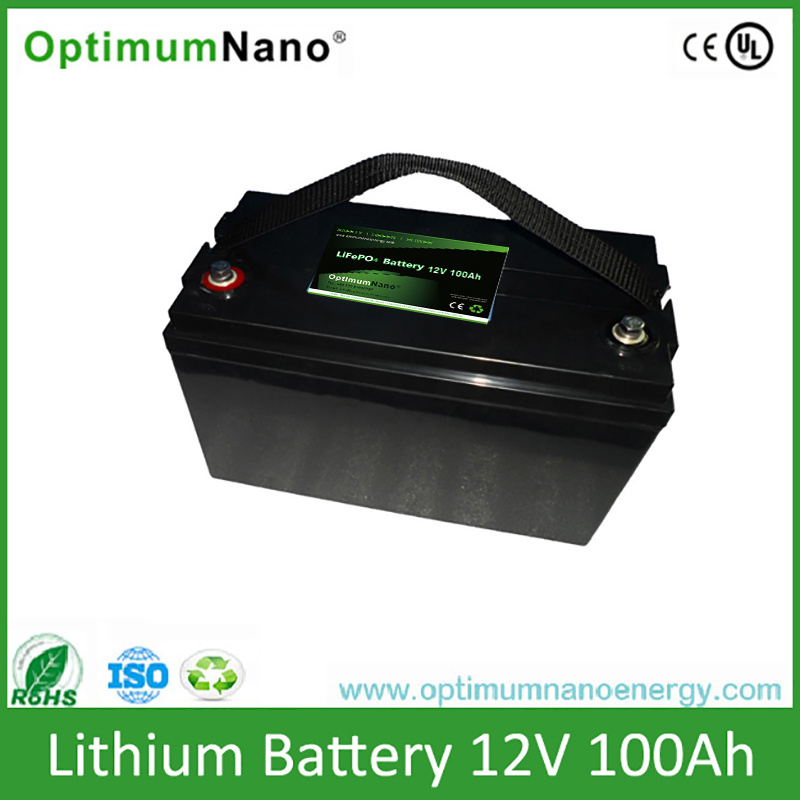

rechargeable 12V 100Ah lithium ion battery pack LiFePO4

Item	Data
Battery Model	1280Wh, LiFePO4 Battery 12V 100Ah
Cells and connection	32650, 3.2V 5Ah, 4S 20P
Battery Voltage	12.8V (Standard Working Voltage)
Standard Charge Voltage	About 14.6V
Discharge Cut-off Voltage	10V
Battery Capacity	100Ah
BMS Model	PCM(PCB style BMS)
Charge Current	20A (need 5 hours to full charge,can design)
Max Continuous Discharge Current	50A (can design)
Peak Discharge Current	100A (can design)
Whole Battery Size	328171215±2mm Plastic Case Packing
Net Weight	About 13kg

Product Feature
1. Safety: safest Li-Ion battery, CE UL approved, built-in protection circuit board (BMS), no fire, no explosion
2. Clean and Green energy, no toxic material contained
3. Long life cycle, > 2000 times deep cycle at 1C rate, 6-8 times of lead acid battery
4. No memory effect, highly efficient charge anytime, no reduction of capacity
5. Operation temperature: -20~70C
6. Small size and light weight: 1/2 size of lead acid battery, 70% size of Ni-MH Ni-Cd battery, 1/2 weight of lead acid battery
7. Good performance at high temperature and high temperature resistance
8. Low self-discharge rate: < 3% monthly

Applications
1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car
2. Light electric car: e-bike, electric scooter, e-motor, electric golf car, forklift, cleanness car, electric wheelchairs
3. E-tool: electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices
6. Small medical equipment and portable equipment

IS9001:2008, TS16949 factory

Company Name: OptimumNano Energy Co., Ltd

Name of Exhibition: The China Sourcing Fair

Address: Hong Kong Asia Exhibition Hall

Booth No: At at 9B05

Dates: Oct 11-14, 2015(4 Days)

In 2002, OptimumNano Energy Co., Ltd started the battery business in Shenzhen.

In 2006, OptimumNano began to focus on the production, Engineering, researching and manufacturing of LiFePO4-Lithium Iron Phosphate Battery, we believe the LiFePO4 shall be the best Lithium-ion Power Solution in the future

In 2008, OptimumNano finished the first Pure Electric Bus with LiFePO4 Battery, demonstrating and running for Shanghai EXPO.

In 2009, OptimumNano was awarded the honor of "National High-tech Enterprise".

In 2011, OptimumNano was the main vehicle power battery supplier of the 26th World Universiade Games.

In 2012, OptimumNano was selected as one the supporting company of "2012 New Energy Automotive Industry Technology Innovation Project", which was launched by the Ministry of Finance, the Ministry of Industry and the Ministry of Science and Technology.

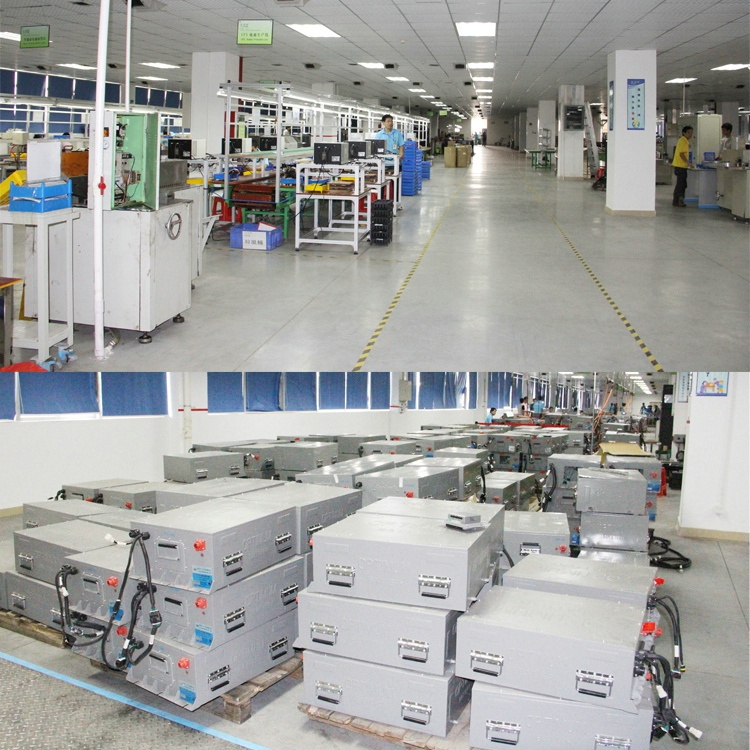

In 2013, OptimumNano moved to new and bigger factory to meet our 500, 000 PCS daily production requirement.

In 2014, Shenzhen mayor Mr. Wang Rong and others come to our company to make researches and guidances and gave high praise for our company achievement in the new energy industry

OptimumNano set up the workstation for Academician Material Application. With around 500 R&D staffs, now we have more than 200 patents at home and abroad.

After over 13 years' development, OptimumNano has offices in local 31 cities, distribute our LiFePO4 batteries to over 40 countries in the world.
