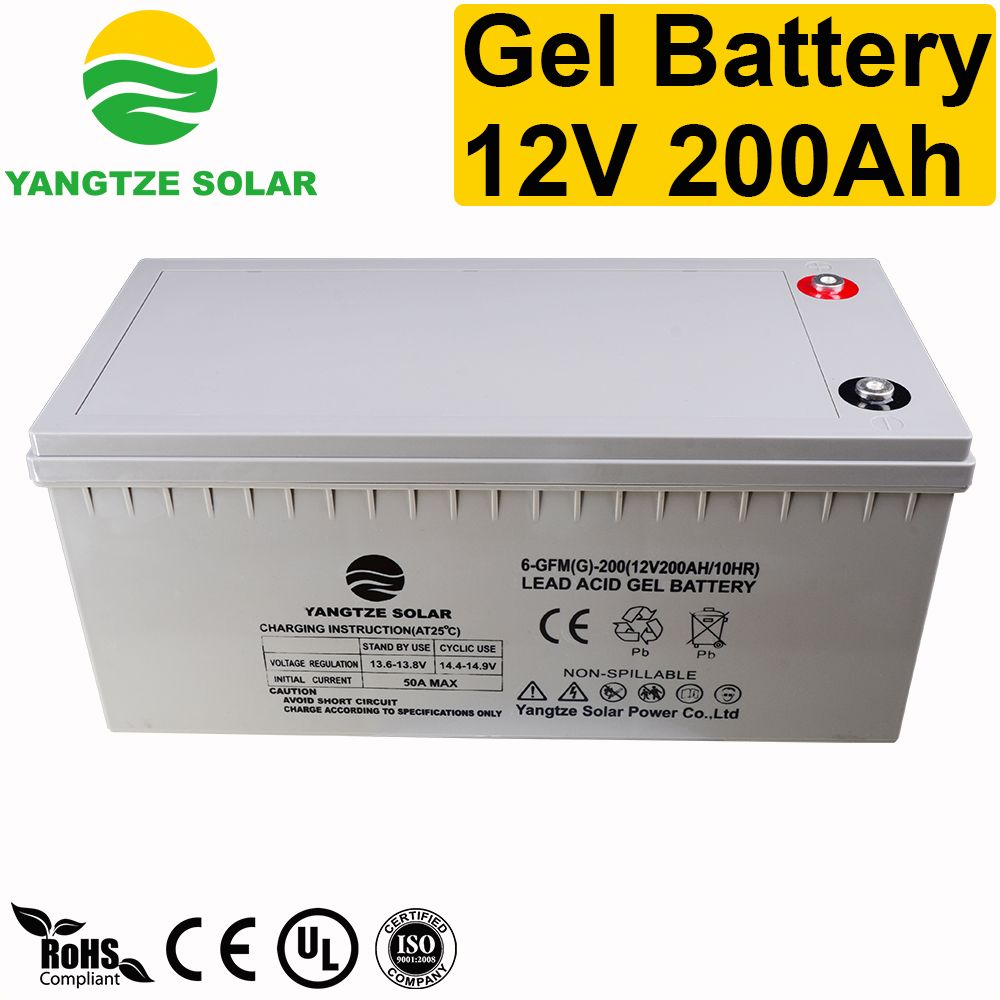

Rechargeable 12V 200ah Gel Deep Cycle Battery

Rechargeable 12V 200ah Gel Deep Cycle Battery
Price: US $ 150-184/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
***** Rechargeable 12V 200ah Gel Deep Cycle Battery *****

Key Features :
♦Rechargeable 12V 200ah Gel Deep Cycle Battery
♦Gelled electrolyte made by mixing sulfuric acid with silica fume

The electrolyte is gel like ,immobile and does not leak ,enabling uniform reaction of each part of the plate .
High rate discharge performance due to tight assembly technology
Strong heat dissipation and wide operating temperature range
Avoid acid mist being separated out , environment friendliness
Efficient venting system release excessive gas automatically

Applications :
Solar and wind energy storage system
EPS and UPS battery backup
Signal system , emergency lighting system , security system
Telecommunication Equipment
Power plant and transmission system

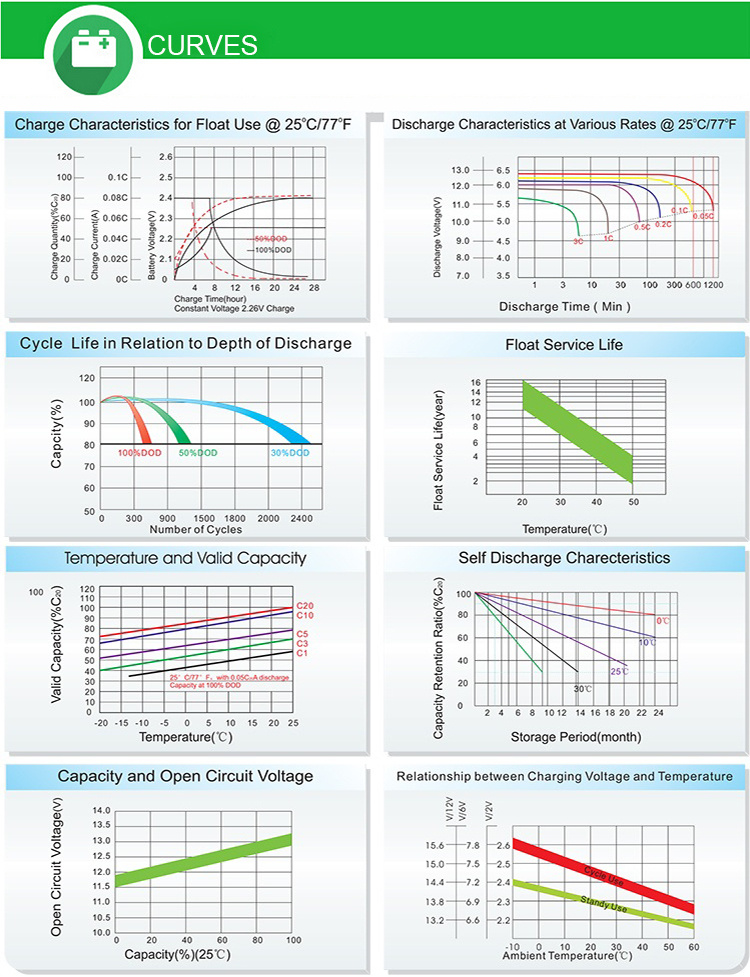

1. Functional Parameter 5. Environment Temperature
Nominal Voltage 12VDischarge Temperature -20~60ºC
Nominal Capacity (10 hour rate)200AhCharge Temperature 0~50ºC
Number of Cells 6cells Storage Temperature -20~60ºC
2. Rated Capacity at 25ºC (77° F)6. Inner Resistance & Max . Discharge Current
10 hour rate (0.1C, 10.8V)200AhFully Charged battery at 25ºC 3.5mΩ
3 hour rate (0.25C, 10.8V)144.7AhMax. Discharge Current 3000A (5s)
1 hour rate (0.55C, 10.5V)110.1AhShort Circuit Current 10000A
3. Capacity affected by Temperature (10 hour rate)7. Self-discharge  at 25ºC (77° F)
40ºC   (104° F)103%Capacity after 3 month storage 91%
25ºC   (77° F)100%Capacity after 6 month storage82%
0ºC    (32° F)85%Capacity after 9 month storage73%
-15ºC   (5° F)65%Capacity after 12 month storage64%
4. Dimension and Weight 8. Constant voltage charging at 25ºC (77° F)
Length 522mmCyclic use14.4~14.9V
Width240mmMaximum charging current 50A
Height 219mmTemperature compensation -30mV/ºC
Total Height 223mmFloat use 13.6~13.8V
Reference Weight 59.kgTemperature compensation -20mV/ºC

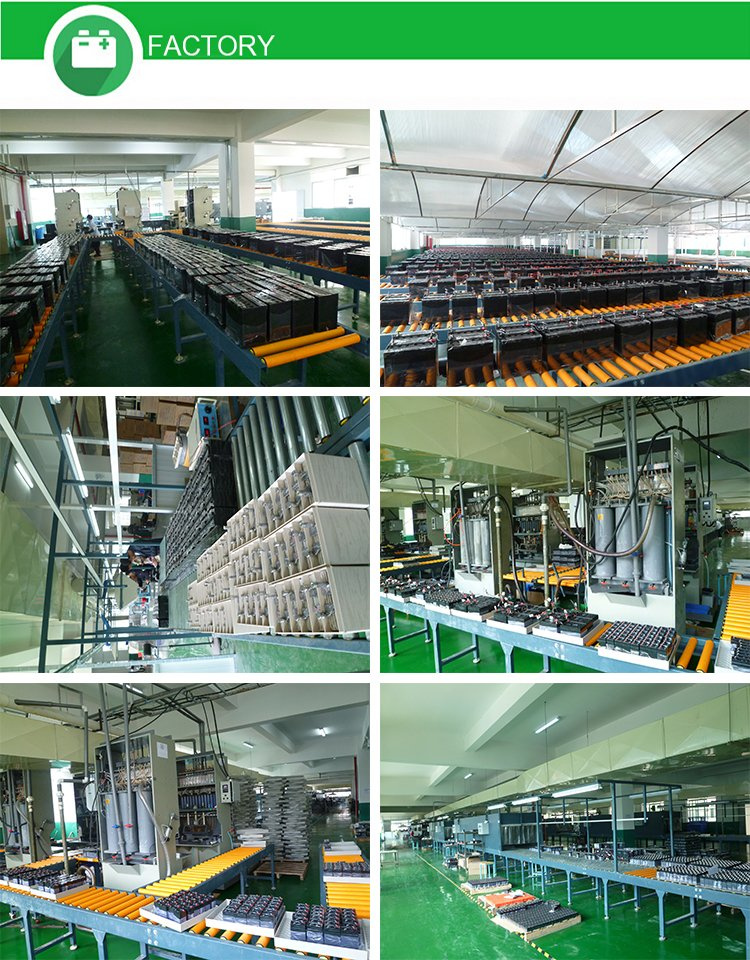

♦ Battery factory Founded in 1996 , 2 million batteries annual production capacity
♦ Products including valve regulated lead acid battery , Gel battery , deep cycle battery, OPzV
   and OPzS battery

♦ Products are exported to more than 150 countries
♦ Products are certified by CE , UL ,Rohs
♦ Mature and very well respected AGM and GEL technologies for valve-regulated lead-acid
   batteries ranging from 2Ah to 3000Ah





Prod Model: 6-GFM(G)-200
Material: High Pure Lead
Certificate: UL/Ce/RoHS/ISO9001/ISO14001/IEC60896/IEC61427
Size: 522X240X223mm
Weight: 59.5kg
Maintenance: Free
Color: Grey / Black
Terminal: Copper or Lead Material
Warranty: 3 Years
Expected Cycle Life: 10 Years
Sealed: Yes
Usage: Solar System, Telecom
Nominal Voltage: 12V
Discharge Rate: High Discharge Rate
Shape: Square Battery
Rechargeable: Chargeable
Type: Gel Battery
Electrolyte: Sulfuric Acid Thixotropic Gel
