| Prod Model: |
AYAA-2S2P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Bule |
| Composition: |
2series 2parallel |
| Size: |
38mmx 38mm X 78mm |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
Product Description
Ayaa have three main divisions related to portable power supply:
1. PCM/BMS For Li-ion/Li-polymer/Lifepo4 battery pack
2. Customized Assembly battery packs with our high quality PCM/BMS
3. Matching Charger for Lithium/Li-ion/Li-po/Lifepo4 battery pack

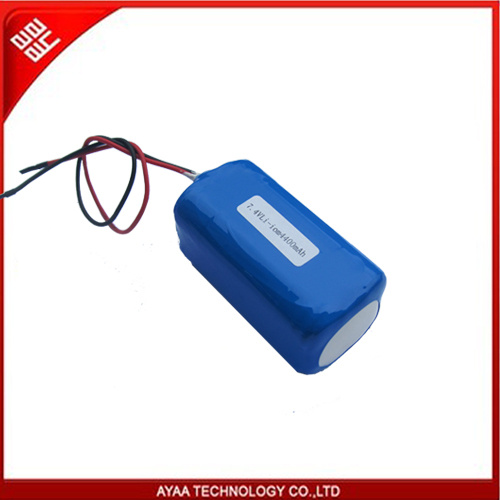

Rechargeable Li-ion Battery Pack 7.4V/4.4ah with PCM 2.5A
Rechargeable Li-ion Battery Pack 7.4V/4.4ah with PCM 2.5A
I-Ion Battery: 7.4V/4.4Ah (32.56Wh, ) with PCM
Battery: Sumsung 18650 3.7V/2200MAH
Protected by 1 pcs PCM (2.5A limited) located on the top
Battery pack is wrapped blue PVC
1)Safe & reliable
2)12 months warranty
3)Eco-friendly
Advantages
High energy density
Potential for yet higher capacities.
Relatively low self-discharge
Self-discharge is less than half that of nickel-based batteries.
Low Maintenance
No periodic discharge is needed; There is no memory.
· Very low profile
Batteries resembling the profile of a credit card are feasible.
· Flexible form factor
Manufacturers are not bound by standard cell formats. With high volume, any reasonable size can be produced economically.
· Lightweight
Gelled electrolytes enable simplified packaging by eliminating the metal shell.
· Improved safety
More resistant to overcharge; Less chance for electrolyte leakage.
Application:
Lithium ion provide long lasting energy for portable equipment and other devices such as:
1. Portable equipment: Laptop, camcorder, PDA, Digital camera, portable DVD etc.
2. Home appliances: Two-way radio, Walkie-talkie, Electric toys, Electric bicycles, Emergency lighting
3. Military equipment: IR telescope
4. Telephone switchboard, electric equipments, power instruments and meters
5. Uninterrupted power source (UPS) for computer, Emergency Application, Medical devices
6. Power transmission and transformer station, switch-control, and accident lighting
7. Fire fighting, safety device, and alarm monitoring
8. Automatic office system
9. Radio communication system
10. Emergency lighting and car/ship starting system
11. Portable electric appliances and mining system
12. Traffic and navigation signal lamp
13. Solar Energy: Solar Street lights, Solar Led Lights
Storage:
1. Use at temperature below 40° C, charge fully prior to long storage periods or if it has been stored for more than three months
2. If you find any single battery voltage is under 2V at room temperature, the battery has been over-discharged or is self-discharging due to some defect/parasitic load. Discontinue use until the fault can be corrected and the battery be recharged
3. Store in an open, well ventilated, dry, clean area, between -20° C to 40° C for maximum life. Self-discharge will accelerated at higher temperature
4. Don't expose the battery to extremes of temperature over 60° C, directly to sources of heat, direct sunlight or moisture and/or rain
Description
|
Li-Ion Battery: 7.4V/4.4Ah (32.56Wh,) with PCM Battery:Sumsung 18650 3.7V/2200MAH Protected by 1 pcs PCM (2.5A limited) located on the top Battery pack is wrapped blue PVC |
|
Voltage |
Voltage: 3.7V (working) 4.2V (peak) |
|
Capacity |
2200 mAh (8.14Wh) |
|
Cycle life |
> 1000 cycles (80% of initial capacity @ 0.2C rate, IEC Standard) |
|
Protection +tupian |
One PCM ( PCM-Li02S5-027 ) installed with the battery pack and protects the battery from Over charge detection voltage(4.25V±0.025V) Over discharge detection voltage (2.40V±0.062V) Over current detection current ( 6.5±1A) Short circuits
Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack. |
|
Pre-wired |
Discharge terminal: 2" long 22AWG open wire end Red wire = Positive Black wire = Negative |
|
Charging rate |
2.2A (0.5C) |
|
Max. Discharging Rate |
6.5A limited by 22AWG wire |
|
Dimensions (LxWxH) |
38mmx 38mm x 78mm |
|
Weight |
210g |
|
Warranty |
Limited Warranty: Repair or exchange only within 30 days. |
Charger
|
Please use our charger below for fully recharge battery pack. Smart Charger (3A) for 8.4V Li-ion Battery Pack, 100-240V (4.5hrs charge time) |
|
Applications |
|
|
Warning |
|
AYAA TECHNOLOGY Co., Ltd has 11 years experience in the design, engineering and service of all kinds of safety board PCM/BMS for Li-ion (Lithium ion) and Li- Po (Lithium Polymer) batteries, battery pack, also different types of chargers.
We are dedicated to utilize extensive knowledge and expertise of cells and battery pack build in order to provide the most innovative, effective and economical battery solutions. As a leader of safety board, worldwidely providing battery packs for different devices which are used in the industry and households - power tools, medical equipment, emergency and evacuation lighting, energy storage station, navigation systems for cars, , GPS devices, golf buggy, e-bikes and etc.
We offers free technical advise on battery selection and pack design and has extensive technical backup. AYAA has its own sample verification centre with state of the art welding and manufacturing equipment. We has no minimum quantities on battery pack builds, and has a pricing structure to recognize production runs., As a conformity company by ISO9001, We take quality as business soul, all products will be 100% strictly checked by our QC person, , Care is taken during every process from material checking, assembling, test and package, customer satisfactory always powerful for our continuously improvements.
Meet us, meet reliability, meet our mutual development.
Why choose us?
• We have excellent specialists and equipment in the field of emergency power supply and in particular in the field of batteries.
• Only here you will find a very good balance between price, quality and warranty of the products and services
• We give free advices to the clients about the quality of the products and how their operation throughout their life cycle
• We have friendly and professional sales always standby for all your questions.
What makes us better than others?
• We give a guarantee for the services we provide
• We use only quality materials and specialized machine for spot welding, charging and test devices
• We have 11 years experience in the industry and numerous regular customers from worldwide
• We fulfill orders in agreed terms.
You can trust us!
