Rechargeable LiFePO4 Battery 24V 200ah for off-Grid Solar System
| Price: |
US $ 2200-2600/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
24V 200AH |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Usage: |
Solar Energy Storage,UPS, Solar, E-Scooter |
| Electrolyte: |
Li-on |
Product Description

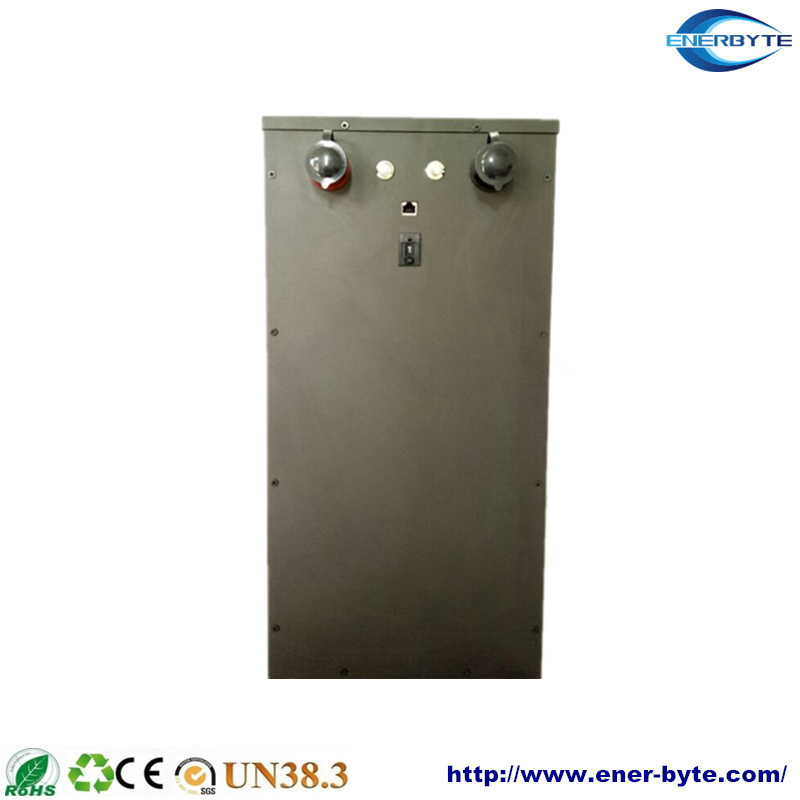

Sealed LiFePO4 Battery pack 24V 200Ah

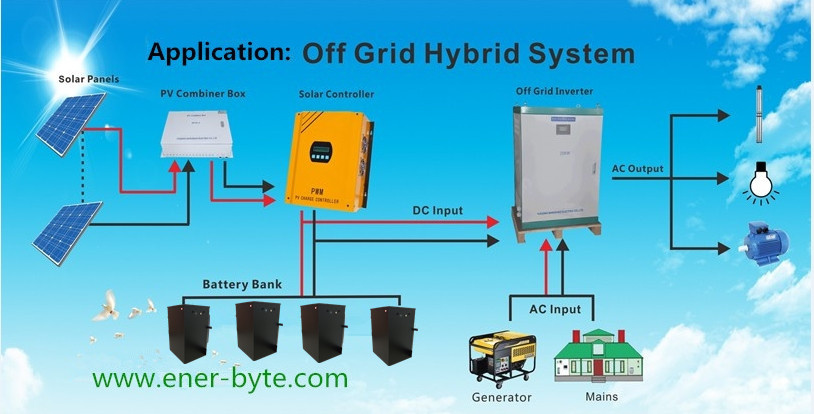

This battery pack is best for replacement of sealed lead acid batteries. Best applications are for solar energy storage applications.
Specification: | Datesheet |
Model | 24V/200AH |
Max. Charge Voltage | 29.2V |
Nominal Voltage | 25.6V |
Discharge Cut-off Voltage | 20V |
Capacity | 200AH |
Max. Charge Current | 200A |
| Battery Dimension |
Length | 390mm |
Continuous Discharge current | 150A |
Width | 310mm |
Max. Discharge current | 300A 3Seconds |
Height | 640mm |
Charge Method(CC/CV) |
Standard | 40A×5hrs |
Weight | 68Kgs |
Quick | 100A×2hrs |
Impedance (Max, at 1000Hz) | ≤2mΩ |
Operating Temperature |
Charge | 0ºC~45ºC; 32oF~113oF |
Cycle Life(80DOD%) | >2000 Times |
Discharge | -20ºC~60ºC; -4oF~149oF |
Self-discharge Rate | ≤3% |
Storage | -20ºC~45ºC; -4oF~113oF |
The characters of BMS system:* Automatic communication ( CAN-BUS or RS 485) with solar inverter, battery can charge and discharge automatically.

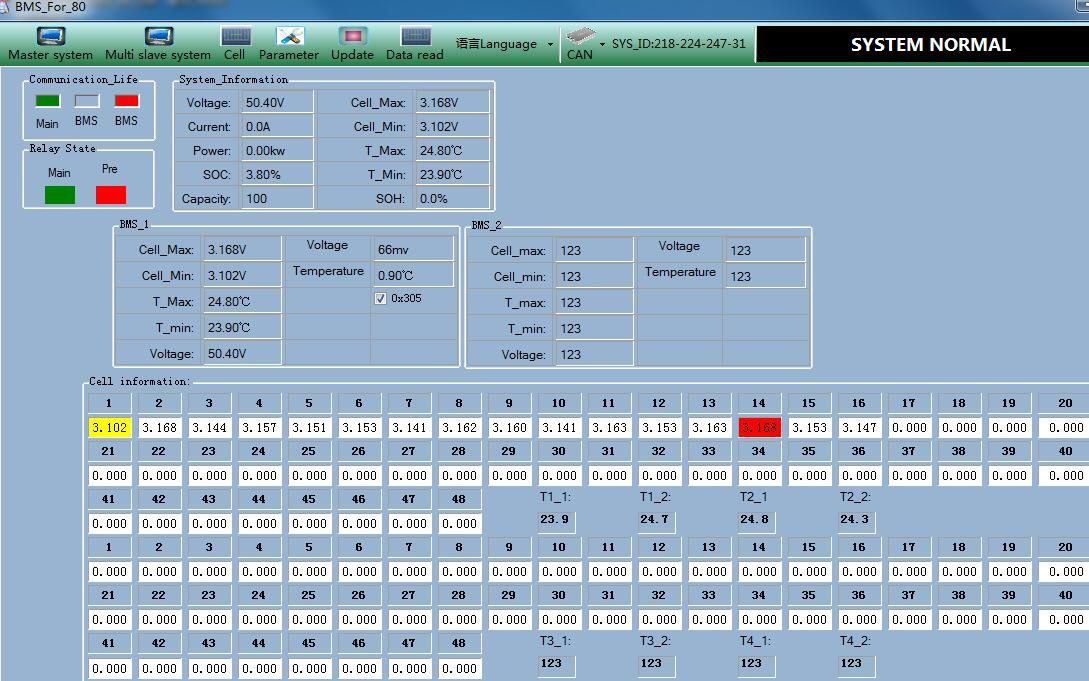

* SOC calculate, check the situation of battery pack and each cell, such as current, voltage, power left. You can get all these datas via connect to communicate port and computor or inverter screen.
* Temperature monitor sensors, the battery will shut off if there is 8ºC temperature difference within cells or the temperature is over 70ºC.
* Equalization function, the voltage of each cell keep the same.
* Include fuse and have the pre-charge function to protect the electric relay.
* Support parallel, if the capacity is not enough, can connect the battery in parallel to enlarge the capacity.
* Have many software, you can adjust the data to control the communication protecol.
You can get following if you choose Enerbyte:
* Quality assurance * Reasonable price * Fast shipment
* Logistics support *Customized service * After-sales assurance.
Tianjin Enerbyte Electronics Co., Ltd, is a professional lithium manufacture in China. We are a high-tech and new energy enterprise , developing, designing and producing Lithium battery cells and battery packs, including NMC and LiFePO4 battery .
Enerbyte battery products cover lithium power batteries, energy storage batteries and consumer electronic batteries. Our products are widely applied in electric vehicles, power tools, medical equipment, solar/wind energy storage, backup battery bank, emergency and security equipment, Handel terminals, military equipment, communication systems and many other fields.
We have more than 8 years of experience in exporting Lithium batteries, distributed to USA, Canada, Italy, United Kingdom, Germany, Australia, France, Thailand, South Korea and many other countries and regions.
Enerbyte possesses strict quality control system, professional team and after-sales services, we have get following certificate: ISO:9001, CE, MSDS, ROHS, UN38.3 and all products are insured by CIPC.
We also provide OEM services and welcome you to be our new partner!
Tianjin Enerbyte Electronics Co., Ltd. is a professional manufacturer of Lithium Battery, , Lithium Ion Battery, lithium Iron Phosphate batteries in China. We are located in the beautiful North largest seaport city of Tianjin.
It was established in 2015 and certificated by ISO9001, CE, and RoHS. Enerbyte will bring enjoyable and customer based power battery cells and pack solutions.
Now we can supply High energy Lithium Ion batteries and Lithium iron phosphate batteries for electric vehicels, energy storage and various portable power banks.
We are striving to provide customer satisfactory battery packs and battery solutions, the batteries are widely used in electronics, electric toys, electric vehicles, solar energy storage and elcectric tools and so on.
Pursuing the highest quality and professional services with best solutions for customers are always objectives of Tianjin Enerbyte Electronics Co., Ltd.
We welcome overseas customers to come and visit our factory!
