Rechargeable Lithium-Ion Battery Pack

Name: Rechargeable Lithium-Ion Battery Pack
Brand: all-electronics-online.com
SKU: 724167672
Availability: InStock
Rating: 4.7 (65 reviews)

Price:	US $ 240.53-259.45/Piece
Min Order:	1/Piece
Pay Type:	Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Cell	model		diy
	Capacity(0.5C)		13ah
	rated voltage(V)		3.7V
	Typical Impedance (mΩ)		≤2mΩ
	Battery material		Li-ion
PACK	Combination method		5p3s
	Minimal capacity(0.5C)		≥60Ah
	Nominal voltage		11.1V
	Max. charge voltage		12.6V
	Discharge cut-off voltage		≤8.5V
	Charge current		5A
	Max Working current		100A
	working current		50A
	Weight (Approx.)		3.2KG
	Max. dimension(L×W×H)(mm)		30823772mm
	Operating temperature	Charge temperature	0ºC~45ºC
		Discharge temperature	-10ºC~55ºC
Protection board	Single cell over-charge cut-off voltage		4.25V
	over-charge release voltage		4.1V
	Single cell under-discharge cut-off voltage		2.5V
	Discharge release voltage		2.9V
	Over-discharge cut-off current		150A
	Over-discharge cut-off current delay		1S
	Short-circuit protection		yes
	Short-circuit protection delay		500uS
	Condition for the recovery of over-current and Short-circuit		Self
	Balance current		45mA

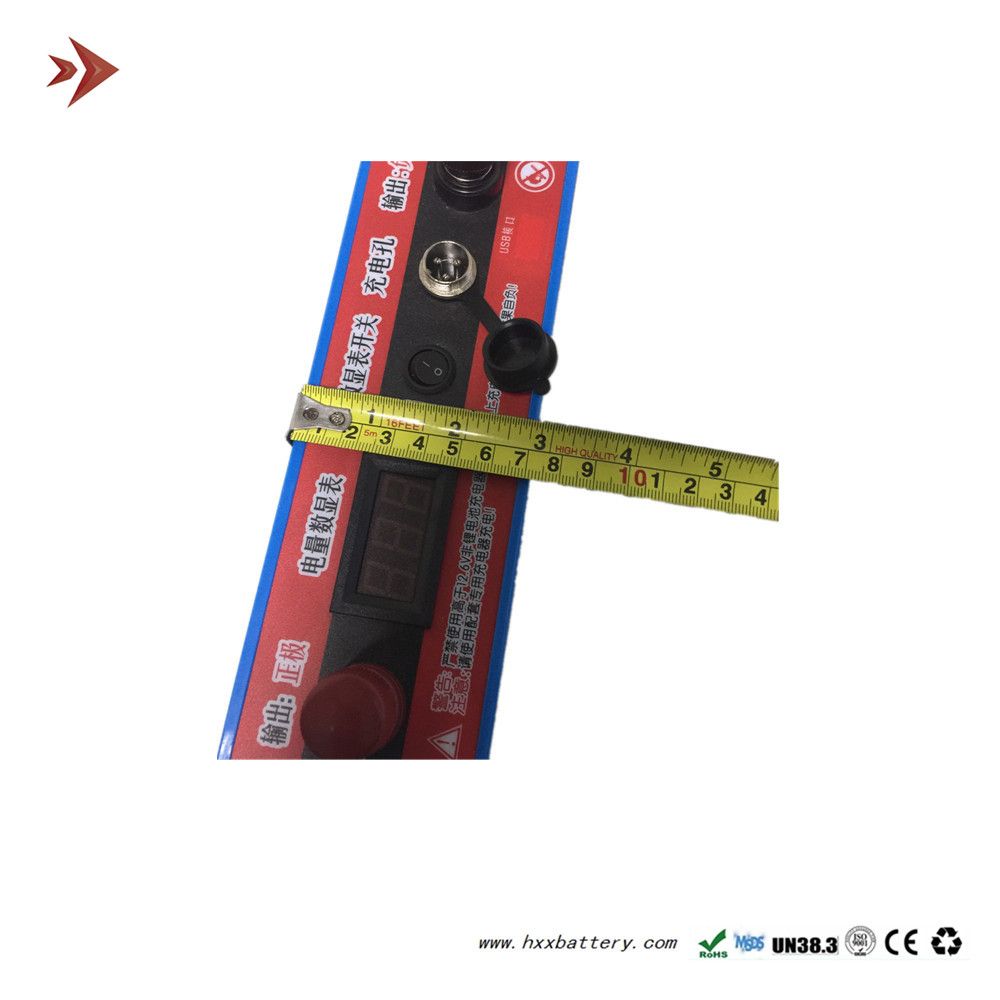

Function Button Speciality : 1 positive pole ,1 negative pole ; LCD of capacity ,1 push switch for LCD ,1 charger hole ;

Note:We offer the full capacity battery pack , we are the 10 years experiences manufacturer . These buyers who buy this battery, must agree that you are familiar with the safe use of lithium battery Knowledge.

Safety Reminder: DIY assembled when good protective measures, Wear protective goggles, insulated gloves.

Main uses:

Large electric vehicle: electric golf carts, buses, electric cars, sightseeing cars and hybrid vehicles DIY

Light electric vehicle: electric bicycle, small flat electric car, forklift, cleaning vehicles, electric wheelchair

Power tools: electric drill, electric saw, lawn mower

Remote control cars, boats, aircraft and other toys

Solar and wind power energy storage equipment

UPS and emergency lights, warning lights, miner's lamp (best safety) all can sent by battery pack .

Prod Model:	12V60AH
Color:	Blue
Housing Material:	ABS
Connection Mode:	Series and Parallel
Type:	Li-Fe
Usage:	12V Electronic Equipment
Electrolyte:	No

Shenzhen HXX ENERGY Co., Ltd. is specialized in producing lithium ion battery pack, LiFePO4 battery pack, polymer battery, battery charger, inverter, flashlight and so on.

The team consists of senior electrochemical research doctors, masters and bachelors of science with more than 7 years' experience in designing and developing.

With rich experience in battery packs production quality and service, we can ensure the quality of our products.
