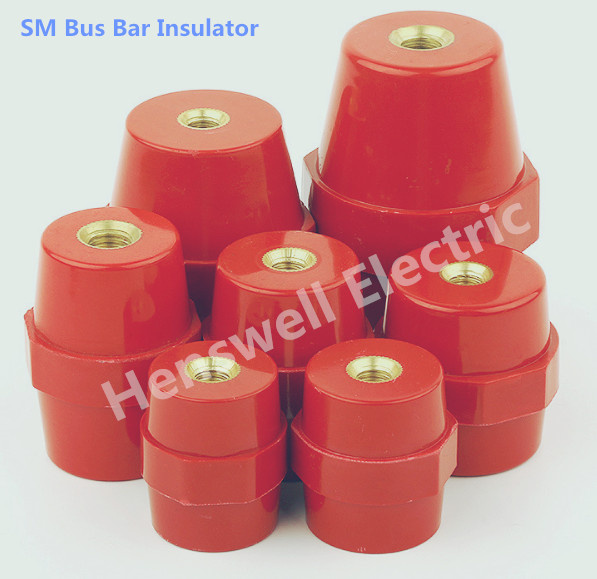

Red Resin Busbar Insulator

Brief Introduction :
Housing Material: BMC(bulk molding compound)
Insert:  thread brass nut
Operating Temp.: -40--+140
Color:  Red ,other color can be made according to need
Properity:  electrical resistance, hear resistance, fire resistance, low shrinkage, water resistance.

Specification:
 1.  Size: SM25,SM30,SM35,SM40,SM45,SM51,SM76
 2.  Technical Data
 3.  With and Without Steel Screw

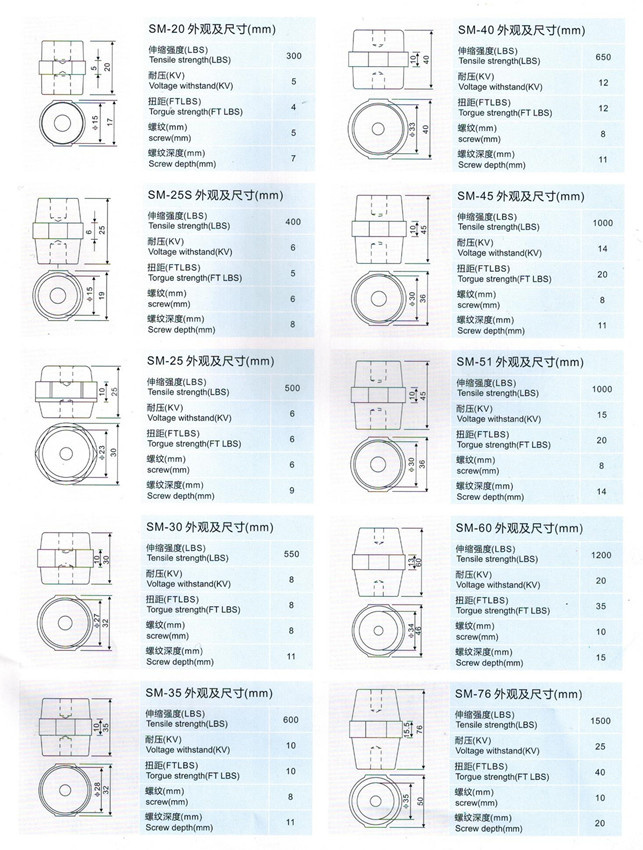

	SM-20	SM-25S	SM-25	SM-30	SM-35	SM-40	SM-45	SM-51	SM-60	SM-76
Tensile Strength (lbs)	300	400	500	550	600	650	1000	1000	1200	1500
Voltage Withstand (kv)	5	6	6	8	10	12	14	15	20	25
Torque Strength (ft lbs)	4	5	6	8	10	12	20	20	35	40
Screw Size	M5	M6	M6	M8	M8	M8	M8	M8	M10	M10
Thread Depth (mm)	7	8	9	11	11	11	11	14	15	20

Remark :
1. payment term: 30% T/T in advance, balance paid against the B/L copy ; L/C at sight
2. lead time: from 3 weeks to 6 weeks generally
3. Shipment Term:  LCL, FCL by sea , alternatively ,general mail service, fast-speed courier  by air
4. Shipment Port:  Ningbo , Shanghai


Service Points:
1. quick and professional response within 24 hours
2. detailed quotaion sheet including image,description,packing list in form of PDF, Excel or JPG.
3. samples provided free of charge generally
4. keep you informed of process of production and shipment by means of data and pictures
5. package image design by use of main software like coredraw, photoshop
6. carefully designed with 2D and 3D software before physical mould-making for new products
