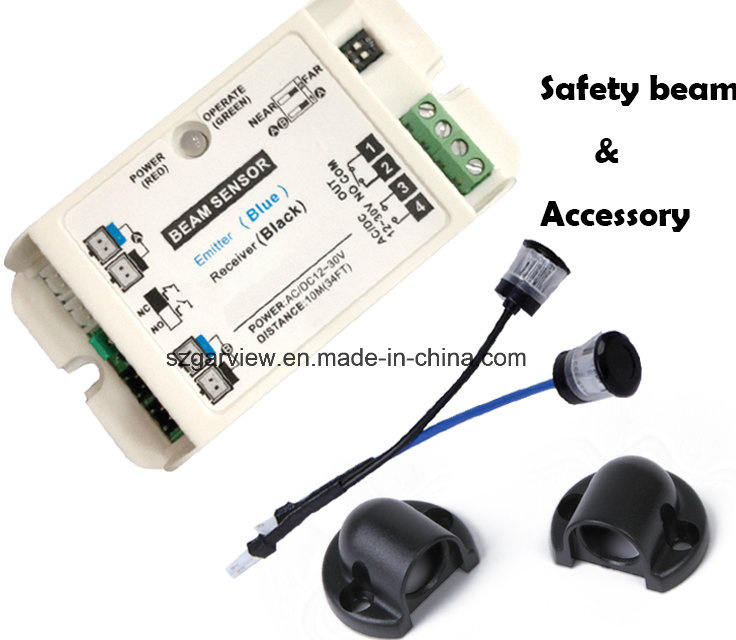

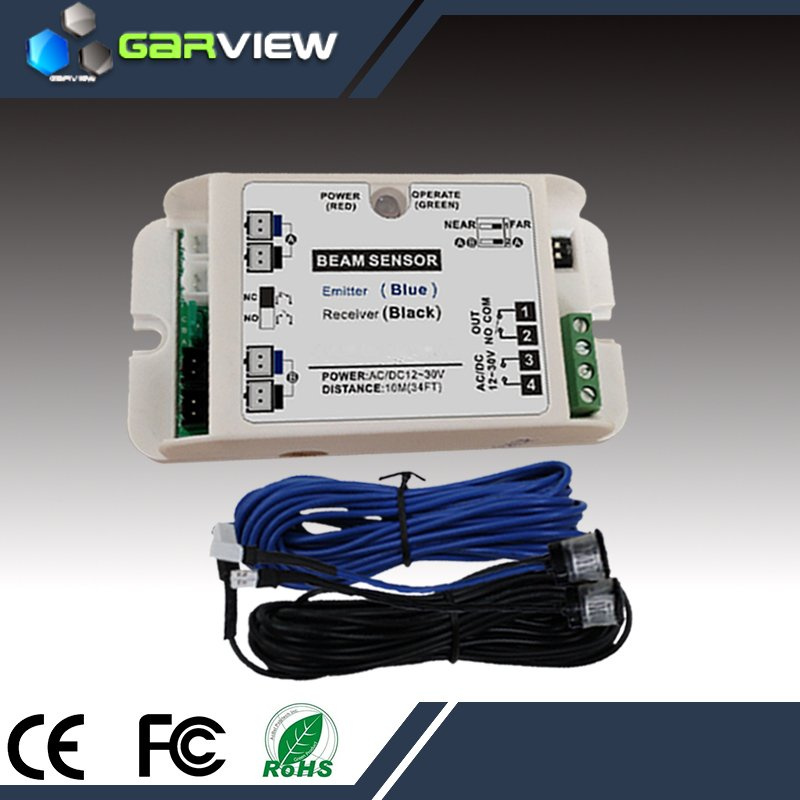

Reflective Photo IR Laser Safety Beam Sensor

Name: Reflective Photo IR Laser Safety Beam Sensor
Brand: all-electronics-online.com
SKU: 729444592
Availability: InStock
Rating: 4.9 (94 reviews)

Price:	Negotiable/Set
Min Order:	10/Set
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

reflective photo ir laser safety beam sensor

Product Feature
1.With Pull in& out type Socket for easy wiring.
2.With AC/DC 12-30V Power Input.
3.Warning Alarm will be sent when eye sensor has problems.

Consideration
>Single Beam must be connected into Group A (White Socket). Double beam
must be connected into Group A&B (Both White and Black Socket)
>The eye installation hole should be 13mm.
>Single beam installation height:60cm from ground.Double beam installation height: One beam should be 30cm from ground. The Other should be 90cm from ground.
>The eyes installation should be vertical and horizontal level. Keep away from sundries to avoid error action.
>Pls keep away from tree and flower to avoid error action
>Pls make sure the installation height should be at least 20cm from ground.

Parameters

Supply power:	AC/DC12∽30V
Static current	12V-18mA
Action current	12V-58mA
maximum transmit distance	10meters
NO or NC contact	both
Beam	single beam or double beam
Working Environment temperature	-42ºC∽45ºC
Working environment humidity	10-90%RH
Appearance dimensions(controller)	105.5(L)×53.4(W)×28.5(H)mm
Appearance dimensions( eye)	19(L)×13(D)mm

Prod Model:	GV-618
Supply Power:	AC/DC12∽30V
Static Current:	12V-18mA
Action Current:	12V-58mA
Transmit Distance:	10m
Signal Output:	No/Nc Available
Dimensions(Controller):	105.5(L)53.4(W)28.5(H)mm
Eye Dimension:	19(L*13(D)mm
Detection Type:	Infrared Reflective

Shenzhen Garview Technology Co., Ltd, has been specialized in automatic door control, access & attendance products for years. Garview series products are widely used in automatic door control system, business/office building access control and attendance checking systems, bank management system and medical purification control system.

We own rich experience in automatic door controlling system and product application in the market. Garview provides full series accessories for automatic door:

Infrared safety sensor, Motion activation sensor, funtional switching selector, hand free sensor, wireless touch switch, keypad access, Power for access, Electronic bolt, EM lock for sliding door…

With high quanlity products, Garview items are regularly provided to different automatic door factories, engineer contractors and export merchants. Garview Company has become a globalized professional in this field since our products exported to oversea markets such as Iran, Tukey, Portugal, the Netherlands, and has gained a good reputation among customers. In the spirit of innovative, Gariview focuses on providing high quality, advanced & pragmatic product to serve worldwide markets, in the fields of automatic door access control, intelligent and security guard.
