Reflective Thermal Aluminized Glass Fiber Sleeve with Snap
| Price: |
US $ 2/Meter |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
BST-SALFS |
| Near Port: |
Shanghai, Ningbo |
| Application: |
Heat Insulation |
| Type: |
Insulation Sleeve |
| Chemistry: |
Hybrid Insulation |
| Material: |
Fiberglass |
| Thermal Rating: |
250 250 |
| Maximum Voltage: |
Nm |
| Color: |
Silver |
| Brand: |
Bstflex |
Product Description

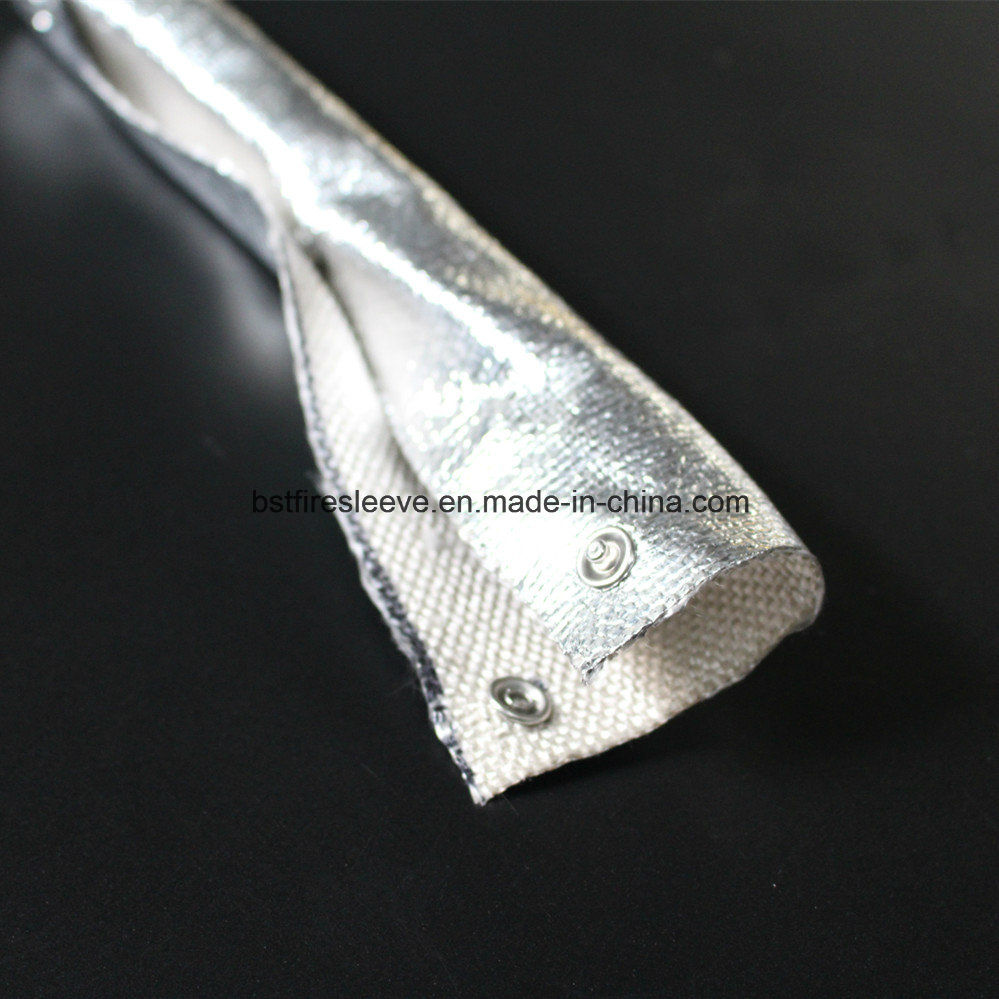

BST-SALFS Aluminum Fiberglass Sleeve with Snap is a aluminum coated fiberglass heat reflective sleeve with metal snap, it is easy to install and reflects more then 95% radiant heat. This sleeve is easily wrapped over the wires, cables and hoses, then closed with the snap.
It is used to protect the industry & automotive wires, cables, hydraulic hoses, piping and tubing from radiant heat sources.
| DATASHEET |
| Part Number | Normal Inside diameter | Meter for spool |
| Inches | mm | Dash # | Meter |
| BST-SALFS-13 | 1/2 | 13 | -8 | 20 |
| BST-SALFS-16 | 5/8 | 16 | -10 | 20 |
| BST-SALFS-19 | 3/4 | 19 | -12 | 20 |
| BST-SALFS-22 | 7/8 | 22 | -14 | 20 |
| BST-SALFS-25 | 1 | 25 | -16 | 20 |
| BST-SALFS-29 | 1 1/8 | 29 | -18 | 20 |
| BST-SALFS-32 | 1 1/4 | 32 | -20 | 20 |
| BST-SALFS-35 | 1 3/8 | 35 | -22 | 20 |
| BST-SALFS-38 | 1 1/2 | 38 | -24 | 20 |
| BST-SALFS-41 | 1 5/8 | 41 | -26 | 20 |
| BST-SALFS-44 | 1 3/4 | 44 | -28 | 20 |
| BST-SALFS-48 | 1 7/8 | 48 | -30 | 20 |
| BST-SALFS-51 | 2 | 51 | -32 | 20 |
| BST-SALFS-57 | 2 1/4 | 57 | 36 | 20 |
| BST-SALFS-60 | 2 2/5 | 60 | -38 | 20 |
| BST-SALFS-64 | 2 1/2 | 64 | -40 | 20 |
| BST-SALFS-67 | 2 5/8 | 67 | -42 | 20 |
| BST-SALFS-70 | 2 3/4 | 70 | -44 | 20 |
| BST-SALFS-73 | 2 7/8 | 73 | -46 | 20 |
| BST-SALFS-76 | 3 | 76 | -48 | 20 |
| BST-SALFS-83 | 3 1/4 | 83 | -52 | 20 |
| BST-SALFS-89 | 3 1/2 | 89 | -56 | 20 |
| BST-SALFS-95 | 3 3/4 | 95 | -60 | 20 |
| BST-SALFS-102 | 4 | 102 | -64 | 20 |
