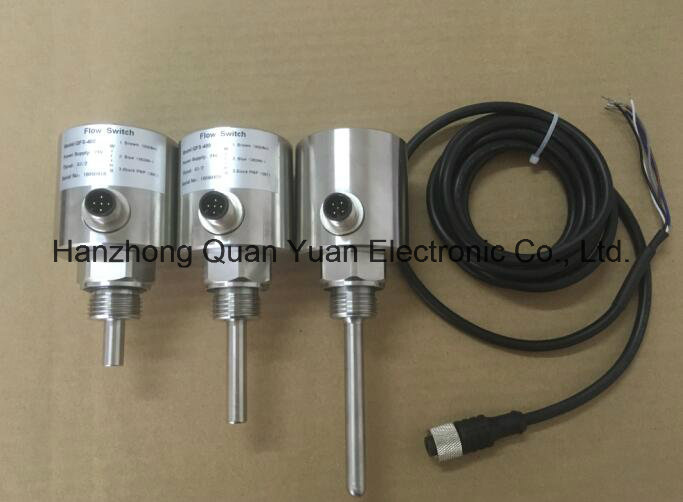

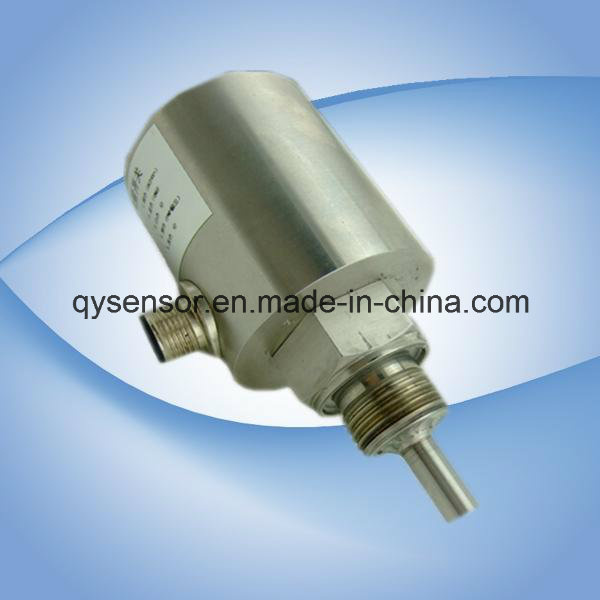

Relay Output Flow Meter/ Flow Sensor for Oil and Water
| Price: |
US $ 82-88/Piece |
| Min Order: |
2/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Water Oil Flow Sensor for Piple
Installation
1. The wetted parts need to immerse in fluid. Installation in small diameter pipeline to ensure that the probe can't contact with pipe's inner wall.
2. When the fluid can not completely fill the pipeline products should be installed in the bottom of the pipe.
3. If there may be sediment in the pipeline, please products installed in the pipeline side wall, horizontal mounting (Figure 2), to avoid the air and sediment
4. Installation in a straight pipe close to bend or intersection place, the pipe length should not be less than 4 times the diameter of pipeline. | Code | Color | NO. |
| Excitation + | Brown | 1 |
| Excitation - | Blue | 3 |
| Relay: Normally open | White | 2 |
| Relay: Normally close | Gray | 5 |
| Relay:COM | Black | 4 |
| Transistor:NPN | Black | 4 |
| Transistor:PNP | Black | 4 |
Technical specifications:| Measuring media | dilute non-corrosive liquids(water,oil) |
| Measuring ranges | bar | 1~150cm/s(water),3~300cm/s(oil) |
| Excitation voltage | Vdc | 24±20%VDC |
| Output signal | Relay | SPDT(≤250VAC/30VDC, 3A) |
| Transistor | NPN,PNP(≤24±20%VDC,1.2A) |
| Response time | s | 2s(1~15s) |
| Initialize time | s | 8s(2~15s) |
| Medium temp. | ºC | -20~80ºC |
| Environment temp. | ºC | -10~+70 |
| Storage temp. | ºC | -25~85ºC |
| Consumption current | mA | <90mA |
| Overload pressure | Mpa | 10Mpa |
| Environment protection | IP rating | IP 67 |
| Case Material | 304 SS |
| Material (wetted parts) | 304 SS |
Packaging & Shipping- Standard exporting package: each unit has individual box and packed in paper box. Waterproof protect.
- According to the clients requirement
Our Services- We are committed to providing a high quality,and responsive services to all clients
- Detailed informations, specific and price of products will be provided quickly after receiving your inquiry.
- Quality assurance: All products will be make sure the quality in a year, and replace new product with any quality problems. All products will be checked by our quality-control and enclose with testing data.
- Packageing: well box packed and provide optimal freight for you refrence.
- All products OEM available
Company Information
Han Zhong Quan Yuan Electronic Co., LTD. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.
QuanYuan are certified according to ISO 9001:2000 and produce strictly in accordance withR60
Contact details:
Chloe Shu
HanZhong QuanYuan Electronic Co.,Ltd.
TEL: +86-916-2257989
https://cn.linkedin.com/in/qysensor
http://www.qysensor.com
| Prod Model: |
QFS-400 |
| Water: |
1~150cm/S |
| Oil: |
3~300cm/S |
| Display: |
6 LED Real Time |
| Name: |
Flow Switch for Piple |
| Size: |
Dn10-50 |
| Sensor: |
Plug-in |
| Application: |
Industrial Production |
| Measuring Media: |
Liquid |
| Measuring Principle: |
Thermodynamic |
| Measurement Object: |
Closed Warer Oil Pipeline |
| Type: |
Volume Type Flow Meter |
