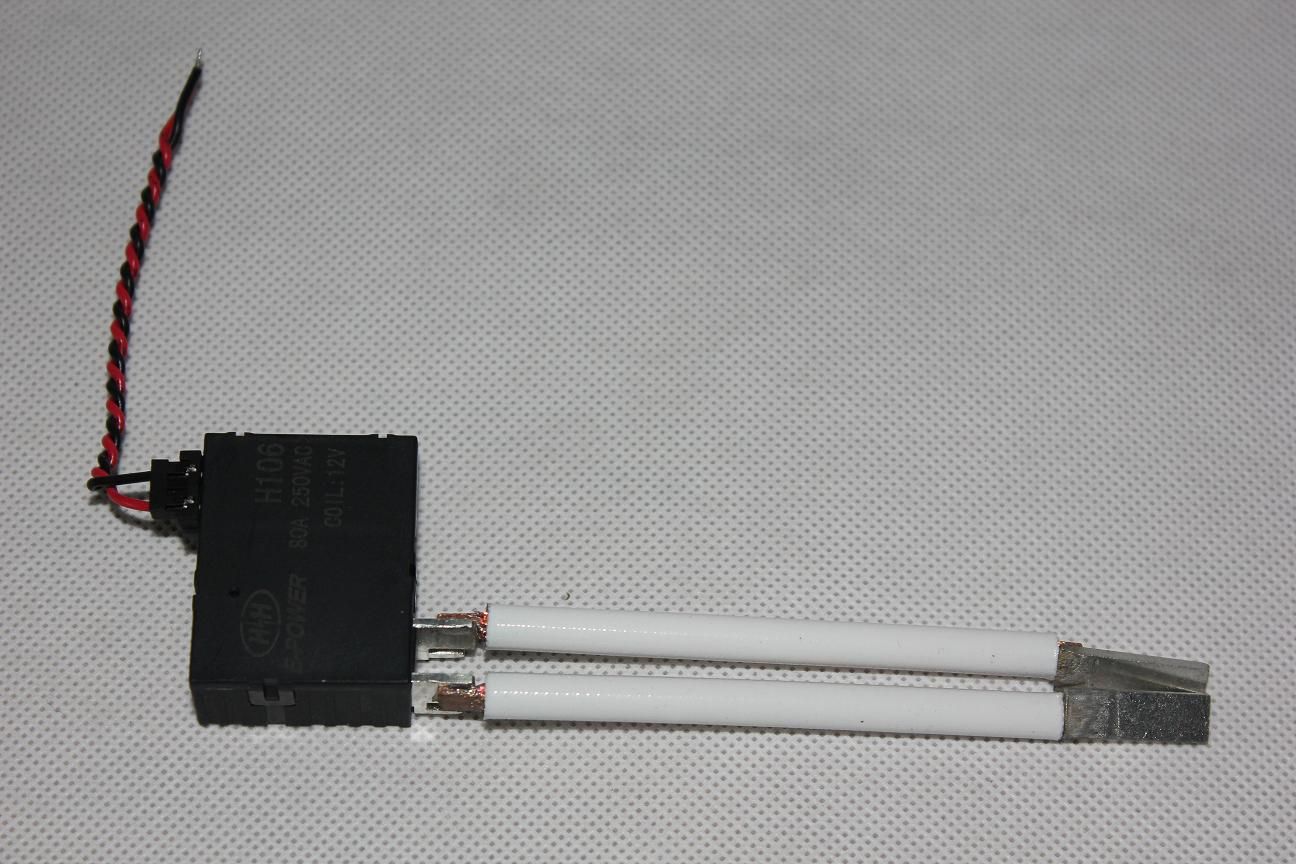

Relay with 80A

Name: Relay with 80A
Brand: all-electronics-online.com
SKU: 839081815
Availability: InStock
Rating: 4.5 (148 reviews)

Price:	US $ 2.25-2.6/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

1, Latching Relay

1), 100A switching capability.

2), Low coil consumption and ultra-low temperature rise.

3), Low contact resistance.

4), High resistance to shocks and vibrations.

5), Outline dimensions: 38.0x30x16.5mm.

6), Custom-made busbar configuration.

7), UC3 certified (IEC62055-31).

2, Applications
1), Electrical meter

2), Automatic meter reading(AMR)

3), All kinds of household electric applications and automatic control devices etc.

3, Funature.
1), Compact configuration

2), Small size

3), High switching capacity

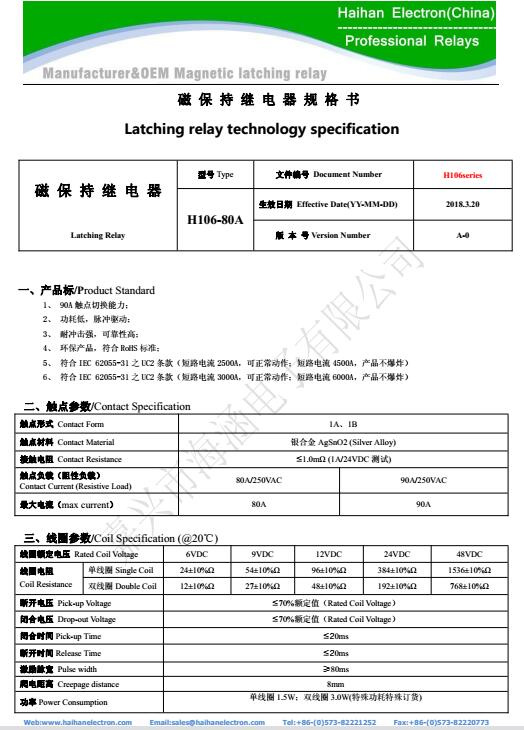

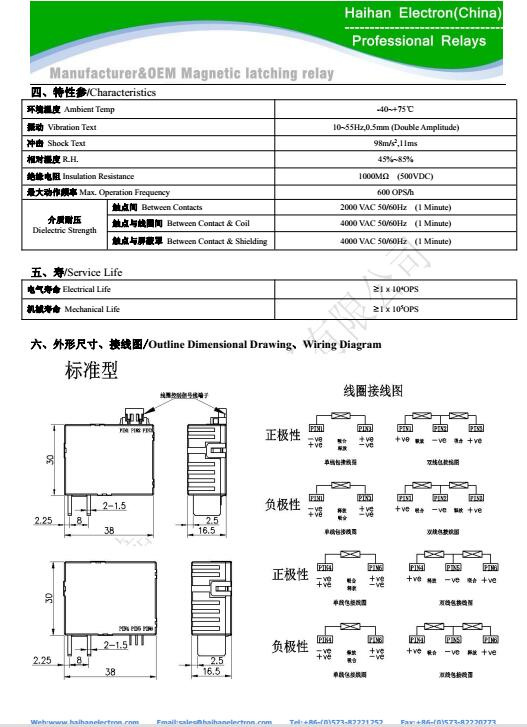

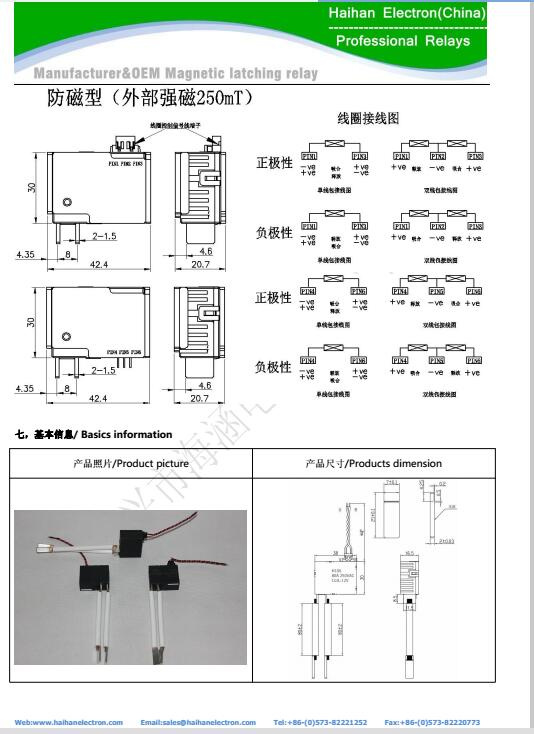

4, Detail technial specifications.

Prod Model:	H106-80A
Model:	H106
Max Switching Current:	80A
Max Switching Voltage:	250VAC
Coil Number:	Double
Coil Power:	Single 1.0W, Double 2.0W
Current Wire Length:	85mm
Brand:	E-Power
Use For:	Single Phase Electronice Energy Meter
Producer:	Jiaxing Haihan Electron Co., Ltd

Jiaxing Haihan Electronic Co., Ltd was established in 2011, We are a professional in designing and manufacturing electricity energy meter accessory and hotel supply.

Mainly electricity meter accessory including: Current transformer, stepper motor counter, Manganin shunt, magnetic latching relay, electricity energy meter case, DIN-Rail Watt-hour meter and precision components, Hotel utensil including: Hotel minibar, safe box and wine cooler.

Outstanding employees, advanced technology, superior equipment, and strict management are pivotal to a company's development and to win customers' trust on its products. "Accurate, reliable, and professional" is our belief in producing and servicing.

Since the establishment, It has been absorbing the advanced technology at home and abroad. At the same time we are also learning experience from the whole electronic industry, so we are producing products with precision, stability, reliability leading in Chinese market. With the advanced technology, excellent quality, perfect service, our products are selling through all around the world.

Jiaxing Haihan Electron Co., Ltd provides professional pre-sale, sale, after sale service which has won our customers' trusts and praises from domestics and overseas. We are focusing on the innovation of technology, the quality of management, and the improvement of services in different levels to achieve our development.

We are actively involved in activities of promoting and exchanging. During the long-term development the company will perfect the quality and performance of products, the technology, and establish long-term friendly cooperation relationship with companies from all around the world. We sincerely welcome all customers at home and abroad to visit our company and exchange the technology.
