| Prod Model: |
LYD-TS00 |
| Net Weight: |
157g |
| Gross Weight: |
209g |
| RF Frequency: |
433.92MHz |
| Connection Mode: |
Common Anode |
| Output: |
3 CMOS Open Drain Output |
| Application: |
Audio / Video Players |
| Signal Transmission: |
RF Remote Control |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Material: |
Plastic |
| Battery Type: |
AAA Battery |
| Type: |
Full Touch |
| Voltage: |
DC5V, 12V~24voptional |
Product Description
Basic Info| Place of Origin: | Guangdong, China (Mainland) | Brand Name: | louita | Model Number: | LYD-TS00 |
| Type: | Remote Control | Output: | 3 channels (RGB) | RF Requency: | 433Mhz |
| Remoter Dimension: | L114*W56*H25mm | Voltage: | DC12V,24V | Output Current: | 6A(each channel) |
| Static Power Consumption: | <1W | Power Supply: | 12V,24V optional | Output Power: | 6A: 12V<216W, 24V<432W |
| External Dimension: | L114*W64*H25mm |

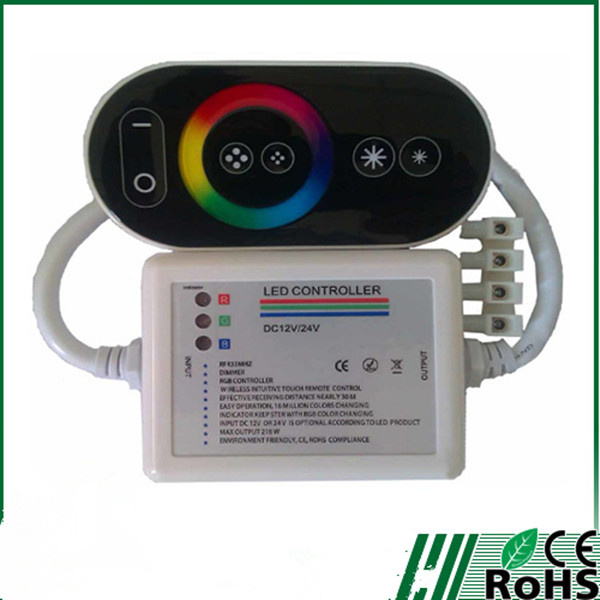

Product DescriptionThis FR touch remote control RGB controller adopted the advanced touch technology, Mainly used to control all kinds of constant volage led products, such as LED source, flexible strip, wall washer, glass curtain wall light and so on. User can choose different changing mode, adjust the speed and brightness,turn on/off by the remote control according to their preference .This controller is with power off memory function, next time to used it, will start with the model it save. Its builtin 7 kinds of static color, jump, fade, strobe,flow, automatic cycle and others effect. Agile wiring, easy connection and simple to used is the representative advantages of this controller.
Technical Parameters| Working temperature | -20-60ºC |
| Supply voltage | DC12V~24V |
| 0utput | 3 channels |
| Connecting mode | common anode |
| External dimension | L114×W64×H25mm |
| Remote control size | L114ΧW56ΧH25mm |
| Net weight | 185g |
| Gross weight | 205g |
| Static power consumption | <1W |
| Output current | <6A(each channel) |
| Output power | 12V<216W;24V<432W; |
Direction for useConnect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
Function introduce: 1,Use the RF remote control, no need to make the remote direct to the controller,and the RF remote can controlled it Across obstacles.
2,In the open area remote control distance is over 30 meters;
3,Each controller and the remote are sticked with an unique ID on it,each controller can be study two remote control's ID,this means that one controlled can be controlled by two remote at the same time.Besides,this controller can make it to be controlled by the unique remote , or make one remote to controlled many controller as well.

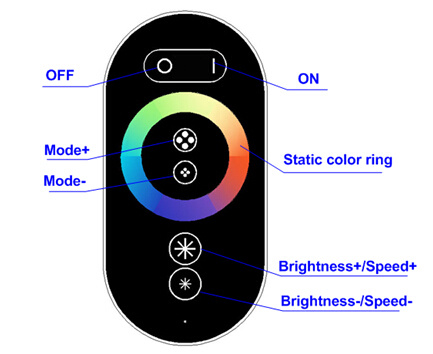

4,the controller is full touch remote with color right on it , user can change the color simply by touch the color ring.
5, When you get this controller, its already match code with the remote, press the brightness - key with 6 secondes after power the controller if you want to match code again.
6,In OFF condition, just the ON key is valid, to turn on the controller by press the ON key for the first time on OFF condition.the controller will be in the same mode as last time it save.
The dynamic models are as below:| NO | Patterns | NO | Patterns | NO | Patterns |
| 1 | Three-color gradual changing | 7 | Yellow strobe-flash | 13 | Blue cross-fade |
| 2 | Seven-color jumpy changing | 8 | Cyan strobe-flash | 14 | Yellow cross-fade |
| 3 | Seven-color gradual changing | 9 | Purple strobe-flash | 15 | Cyan cross-fade |
| 4 | Red strobe-flash | 10 | White strobe-flash | 16 | Purple cross-fade |
| 5 | Green strobe-flash | 11 | Red cross-fade | 17 | White cross-fade |
| 6 | Blue strobe-flash | 12 | Green cross-fade | | |
