| Prod Model: |
RF218 -A |
| Max. Current: |
30A |
| Color: |
White, Golden, Silver |
| Logo: |
Availabe |
| Card Type: |
Only Temic T5557 and RF80 Card Could Get Power Sup |
| Voltage: |
AC 50/60Hz 100~250V |
| Type: |
Mf1 Card or Temic Switch |
| Contact Type: |
with Card |
Product Description
RF218 RFID card power switch electronic energy saverFEATURES:1 .With the special card just insert this card into switch(No need programming),you can gain power of the room.
2. LED indicator design
LED indicator light-emitting design, more convenient to use at night.
3. Delay power off design
When leaving the room, guest take out of card, and then the general power supply can be automatically shut off within 15 seconds, convenience to guests, and also protect the electric device safety.
Specification:| Card type | Only Temic T5557 and RF80 card could get power supplied |
| Working voltag | AC 50/60Hz 100~250V |
| Load current | <30A(suggest16A) |
| Self-consumption power waste | <30W |
| Lifetime of contact of relay | > 100,000 times at 220V 20A |
| Delay-time after power off | 8-15s |
| Working temperature | -10ºC~60ºC |
| Working humidity | 10~95%RH |
| Environment | -20ºC~80ºC for transportation and stock |

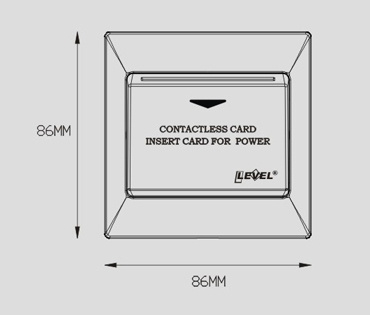

| Installation | Level standard 86 base box |

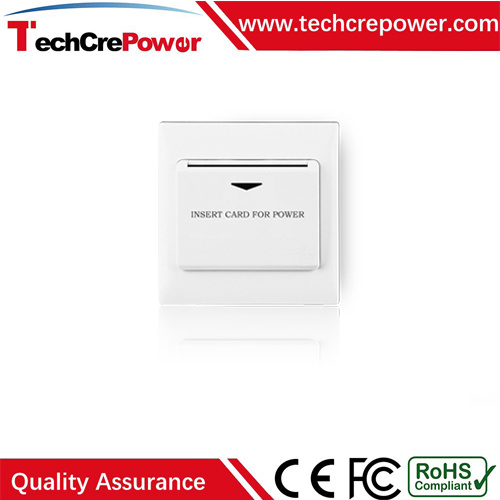

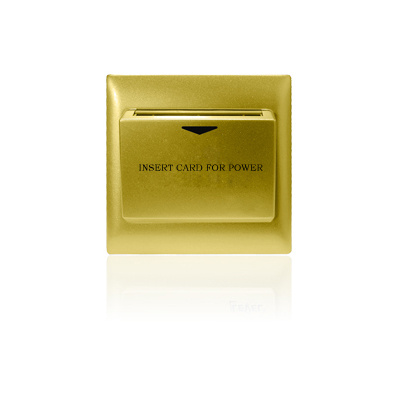

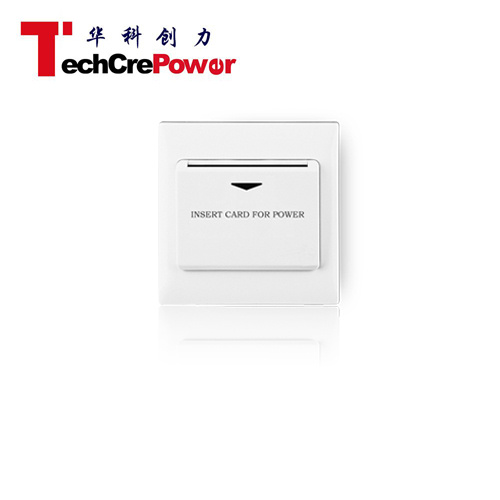

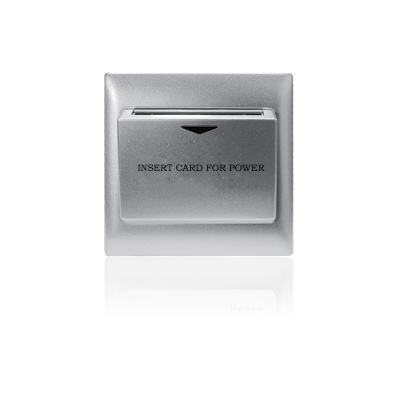

Product Photo

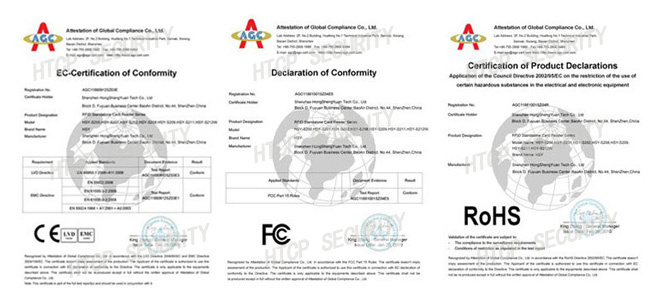

Product Certification

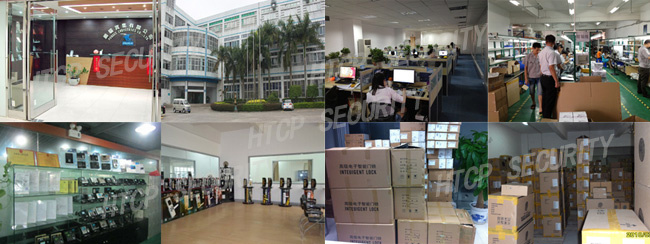

Our Factory
Our Advantage
1. Original High Quality Products:
All of our products are Original High Quality Products, We have strict quality control system, they are 100% tested before factory,
we don't sell products with only low prices.
2. Professional Technical Team:
We can offer comprehensive solution for your projects.
We can offer detailed pre-sales requirements analysis and guide.
We can offer professional remotely technical support for problems.
3. Flexible Customization: We can customize software, firmware for customers requirements.
4. OEM,ODM service: We can design and produce machines with your own logo.
5. Good Service: We treat clients as good friend.
6. Special offers: We have special offers for long-term cooperation clients.
Payment Terms
1. Paypal or Escrow for small sample orders
2. T/T (Telegraphic Transfer) or Western Union / Moneygram
3. L/C(Letter of Credit) for high value orders
4. Cash for face to face business
Shippment Method
1. International Express(DHL, TNT, Fedex, UPS, EMS, Aramex), take about 3-7 days
2. International Airline, take about 5-15 days differently.
3. International Sea Shipping, slow but cheap for heavy goods, take about 10-50 days differently.
4. by POST , slow but cheap for small package, take 10-60 days.
Product Warranty
We provide 1~2 years warranty from the date of delivery but lifetime technical support.
