| Prod Model: |
RG59 Power wire |
| Application: |
Submarine Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
ETL |
| Type: |
Rg59 |
| Brand: |
Shengda |
Product Description
-------------------------------------------------------PRODUCT----------------------------------------------------
[General]
1. Name: RG59 power wire coaxial cable and Video Cable
2. Item Code: RG59 power wire
3. Characteristics:
1) High velocity of propagation, low attenuation, low return loss;
2) Perfect connecting cable for digital video and audio signals for the highest quality image;
3) Perfect cable for satellite TV & high speed internet;
4) Durable & flexible PVC jacket is ideal for running cable through dry wall and over drop ceilings girders;
5) Allows for bending cable without damaging the quad shielded insulated wiring.
4. Certificate: UL, ETL, CE, RoHS, EVPU.

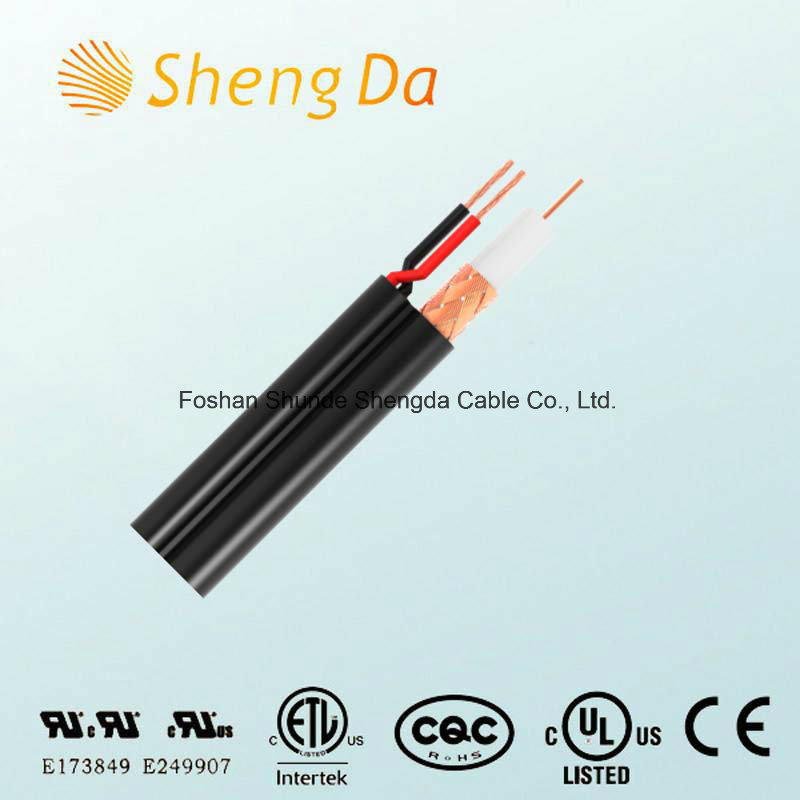

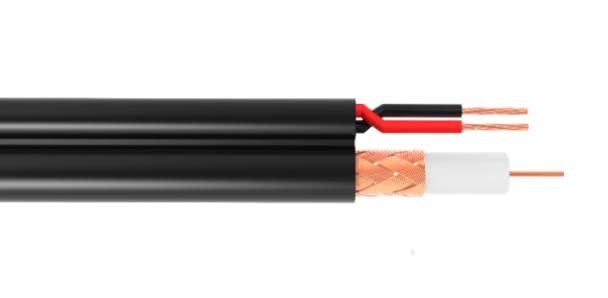

5. Picture
[Specification]
| Name | Material | Parameter |
| Inner conductor | Bare copper | 0.81 mm (diameter) |
| Dielectric | Physical foam PE | 3.66 mm (diameter) |
| Shield (Braid) | CCA braid 0.12mmX16X7 | 80% coverage |
| Jacket | PVC | 6.00 mm (diameter) |
| Inner conductor | Bare copper | 2X (BC 0.345mmX7)(diameter) |
| Jacket | PE | 1.90 mm (diameter) |
| Jacket | PVC | 5.00 mm (diameter) |
| Messenger | N/A | N/A |
[Electrical Characteristics]
| Characteristic Impedance | 75 Ohms |
| Velocity of Propagation | 80% |
| Capacitance | 52 PF/m |
| Return Loss | ≥22 dB |
| Operation Temp | -20~+80ºC |
[Attenuation at 20ºC]
| Frequency (MHz) | 5 | 55 | 300 | 500 | 750 | 1000 |
| Maximum(dB/100m) | 2.82 | 6.73 | 14.60 | 18.70 | 22.87 | 26.64 |

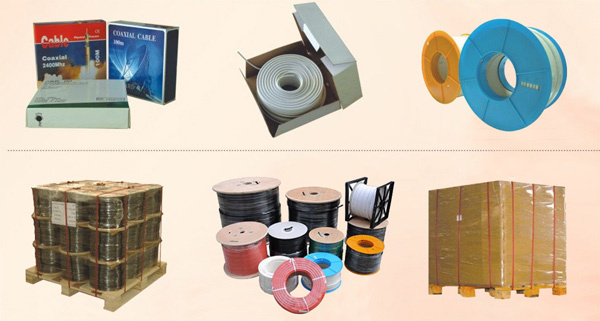

[Packing]
-------------------------------------------------------COMPANY----------------------------------------------------

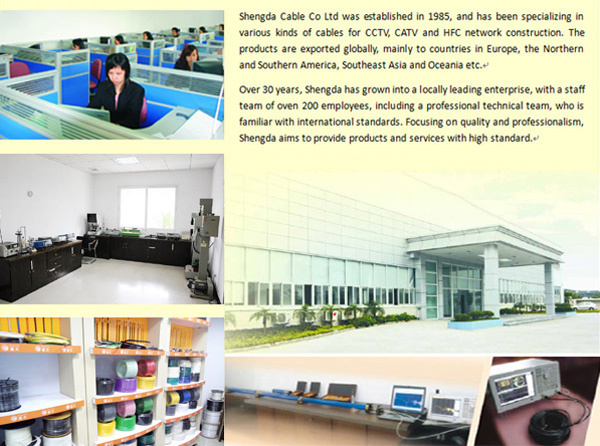

[Overview]

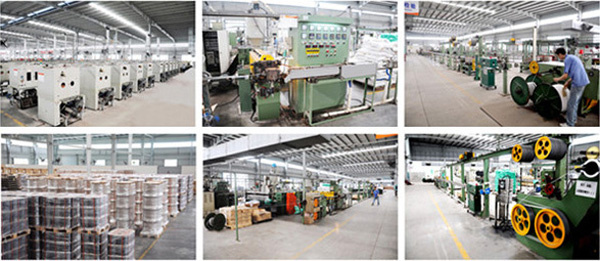

[Workshop]

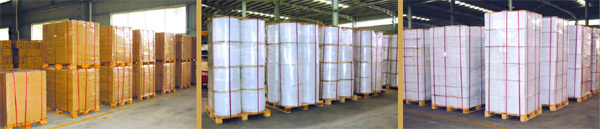

[Storehouse]

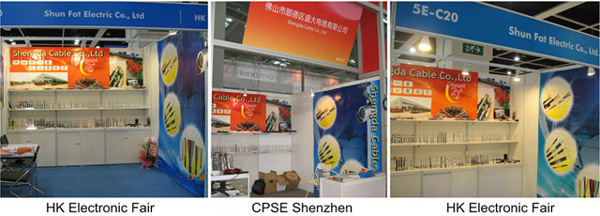

[Trade Show]
