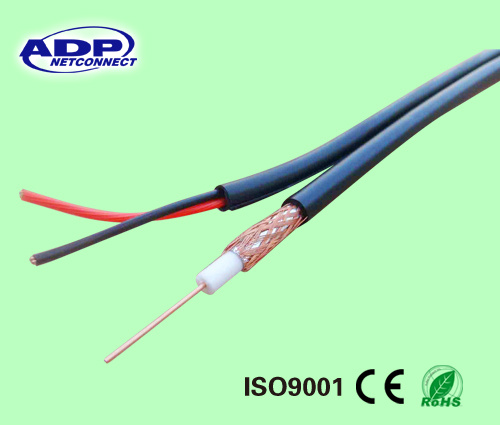

Rg59 with Power Cable

RG59 with power cable

Application:
Used in cable TV operations, Computer net-working etc.
Construction:
Solid annealed bare copper conductor polythelene insulated shielded with polyester backed aluminium tape and additional shielding with fine aluminium braid protected with polyester tape wrapping and sheathed with PVC.

Specifications:
1)0.80mm Solid Bare Copper +3.55mm Foamed PE +Bonded AL Tape+60% AL Braid+ 6.20mm PVC
2) Customers' specifications are welcomed.
Note:
1) Center conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil, And double non-bonded Al-foil are available;
3) Braiding wire: AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 32, 48, 64, 72, 80, 96, 120, 128, 144 and more available;
6) Braiding coverage: Between 30- 97% available;
7) PVC jacket of Flame retardant, UV, or UL available.
Characteristics:
Impedance(phm): 75
Velocity Ration(%): 85
Capacitance(pF/mttr): 53
Return Loss(dB/100m): 30-300MHz >30
300-550MHz >24
Bending Radius, min(mm) 65
Attenuation:
@25degree (dB/100meters)
55MHz: 6.73dB
83MHz: 8.04dB
187MHz: 11.81dB
211MHz: 12.47dB
250MHz: 13.45dB
300MHz: 14.60dB
350MHz: 15.71dB
400MHz: 16.73dB
450MHz: 17.72dB
500MHz: 18.70dB
550MHz: 19.52dB

Power cable:
Conductor material: CU CCA TC
Conductor cross-section: 0.5mm2, 0.75mm2

Packing:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
Supplied in 90 meters&305 meters project packaging.
