RG6 Cables with 75ohm CCTV Used

Name: RG6 Cables with 75ohm CCTV Used
Brand: all-electronics-online.com
SKU: 689660562
Availability: InStock
Rating: 4.9 (106 reviews)

Price:	US $ 5.0/Roll
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Roll
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

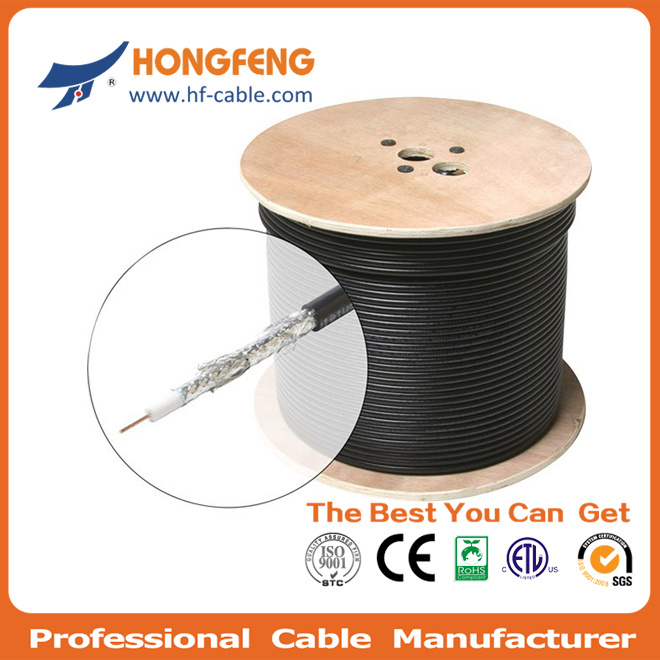

INNER CONDUCTOR
·Material: Copper Clad Steel
·Diameter: 1.02mm

DIELETRIC CORE
·Material: Physical Foamed PE
·Diameter: 4.57mm

BRAID
·Material: Aluminum Alloy
·Form: 16 ×4× 0.12mm (Coverage: 60%)
16 × 8 × 0.12mm (Coverage: 90%)
16 × 9 × 0.12mm (Coverage: 95%)

FOIL
·Material: Aluminum/Pet/Aluminum
·Breadth: 18mm
·Thickness: 15/12/15μ
·Coverage: >110%

JACKET
·Material: PVC (white or black )
·Diameter: 6.91mm
IMPEDANCE
·75 Ohm ± 3 Ohm

NOMINAL CAPACITANCE
·51.2 pF/m ± 2 pF/m

VELOCITY RATIO
·82%

MESSENGER MIN STRENGTH
·180LBS
SPARKER TEST
4000VAC
STRUCTURAL RETURN LOSS
5-1000 MHz :-20dB

NOMINAL ATTENUATION

Frequency(MHz) Max value(dB /100m)Max value(dB /100ft)

51.90 0.58

504.85 1.48

555.25 1.60

2009.50 2.90

21110.0 3.05

25010.80 3.29

27011.00 3.35

30011.60 3.54

33012.20 3.72

35012.63 3.85

40013.60 4.15

45014.40 4.39

50015.20 4.64

55015.80 4.82

60016.73 5.10

75018.54 5.65

80018.90 5.76

87020.04 6.11

100021.45 6.54

135025.40 7.75

175029.00 8.85

215032.80 10.00

Prod Model:	RG6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conductor:	CCS/Cu
Inner Conductor Od:	1.02mm
Dielectric:	Foam PE
Dielectric Od:	4.57mm
1st Shield:	Al Foil
2ND Shield:	Al Briads
Shield Coverage:	30%-90%
Jacket:	PVC
Jacket Od:	6.9mm
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	ETL

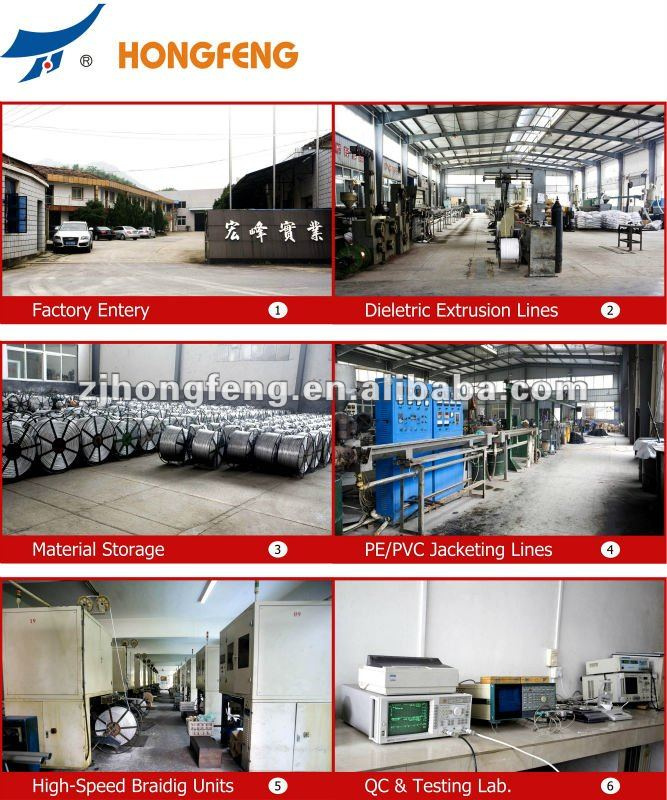

Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
