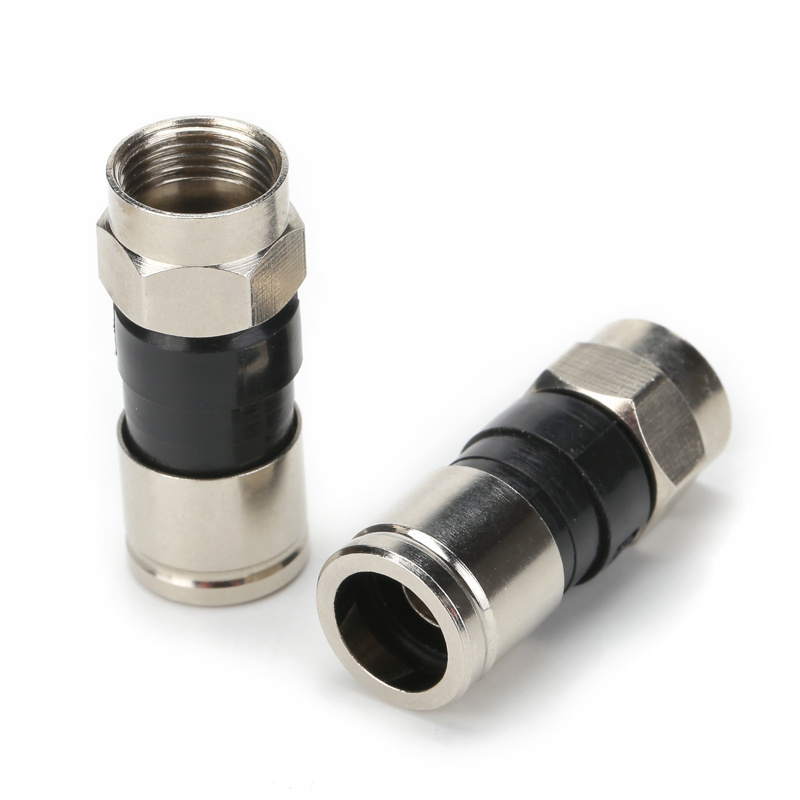

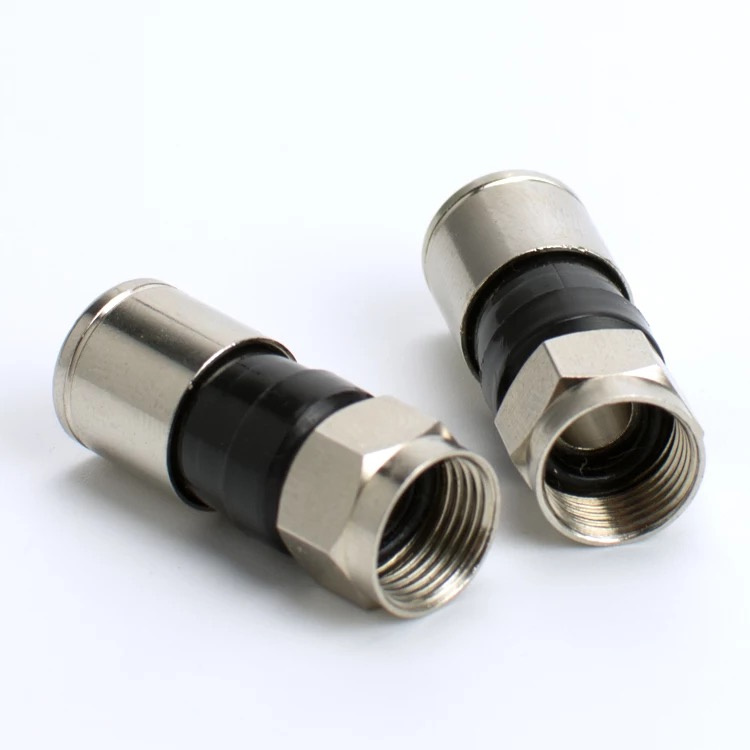

RG6 Rg59 Rg11 Compression RF F Cable Connector for Coaxial Cable

Name: RG6 Rg59 Rg11 Compression RF F Cable Connector for Coaxial Cable
Brand: all-electronics-online.com
SKU: 834020515
Availability: InStock
Rating: 4.3 (73 reviews)

Price:	US $ 0.08-0.115/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Basic Info

Model NO.: PH6-5001
Coupling Mechanism: Sliding Type
Classification: Male Connector
Shape: Hexagonal
Medium Pressure: 500V
Cable for: RG6 Cable
Applications: CATV/Set-Top Box/Cable Assemblies/Cable
Trademark: PHAETON
Specification: brass
HS Code: 85299090

Type: Generally Coaxial Connector
Application: UHF
Interface Type: RG6 F
VSWR: Straight
Brand: OEM
Material: Zinc-Alloy or Brass Nickel Plated
Water Proof: with O-Ring
Transport Package: 50PCS/Bag or 100PCS/Bag
Origin: China

Product Description

High performance Black Nickel connector f compressed for Cable RG6

Universal so it works with all RG-6 Cable (60% thru Quad)
Compression Connector with Dual O-Rings
All Brass Construction
Bag of 100
Meets SCTE Specifications

Product Specifications

Bandwidth:0MHz to 3GHz

Impedance:75Ohms

Return Loss:Minimum -30 dB to 3GHz

Insertion Loss: LESS THAN 10db to 3GHz

Shielding Effectiveness:Ehanced by 25dB

Operating Temperature:-40° F to +140°F(-40°C to +60°C)

Cable Retention:45lbs minimum

Meets or exceeds all SCTE Specifications

Characteristic impedance	75Ω	Temperature range	-65~+165°C
Frequency range	DC~1GHz	Working Voltage	≤170V
Center conductor retention force	≥0.2 N	Vibration	100m/s2 (10~500Hz)
Conductor resistance	Center Conductor	≤ 10 mΩ
Conductor resistance	Outer Conductor	≤ 5 mΩ
Durability	Mating cycles	≥500
Durability	Withstanding voltage	≤500V rms
Voltage Standing Wave Ratio	Straight	≤1.20
Voltage Standing Wave Ratio	Right angle	≤1.30
	Parts Name	Material	Plating
Material And Plating	Body	Brass	Nickel plated
	Pin contact	Brass	Gold or silver plated
	Resilient contact	Tin bronze	Gold or silver plated
	Insulators	PTFE	-
	Gaskets	Silicon rubber	-
	Crimp ferrules	Copper alloy	Nickel or gold plated
Applicable standard	IEC 60169-24

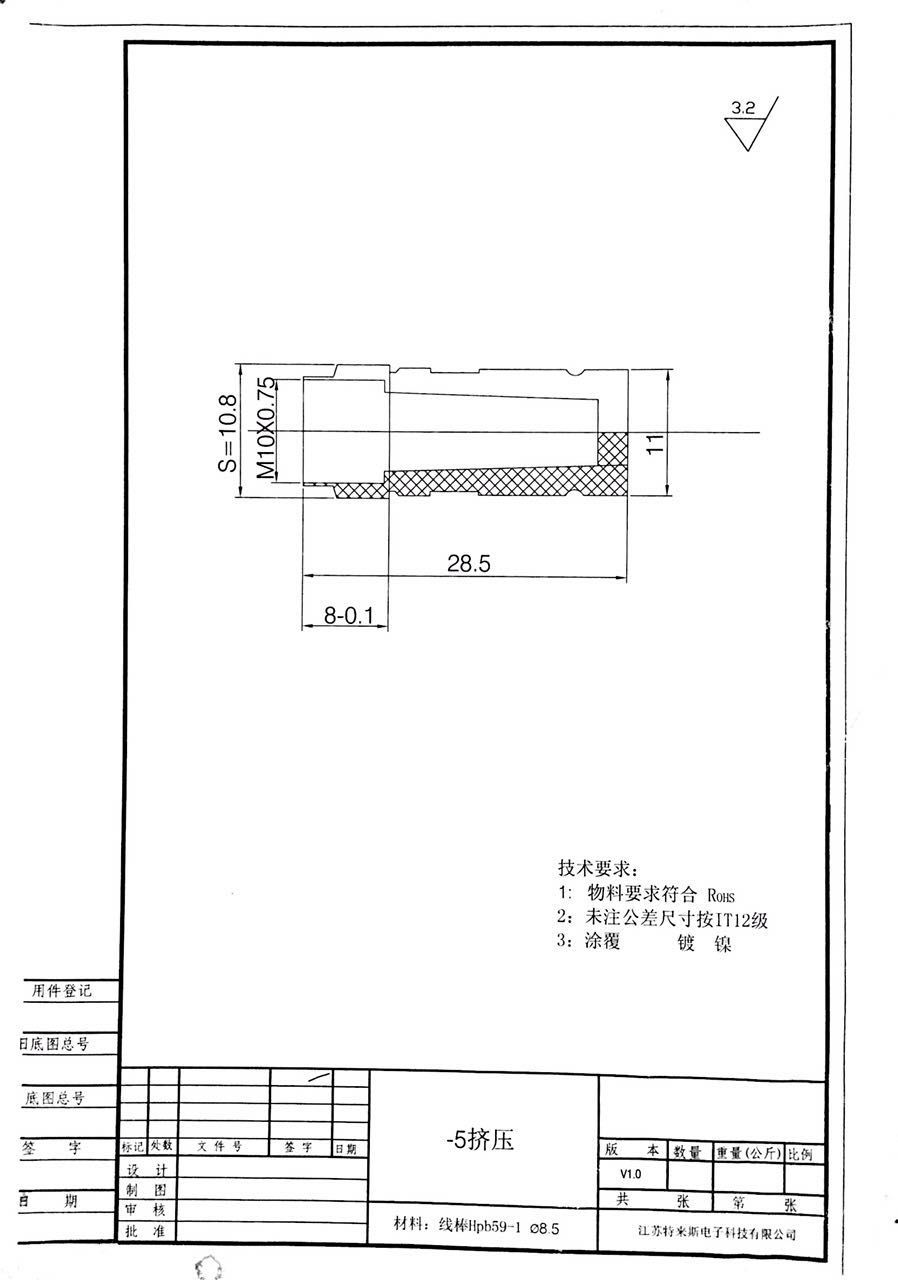

Drawing :
