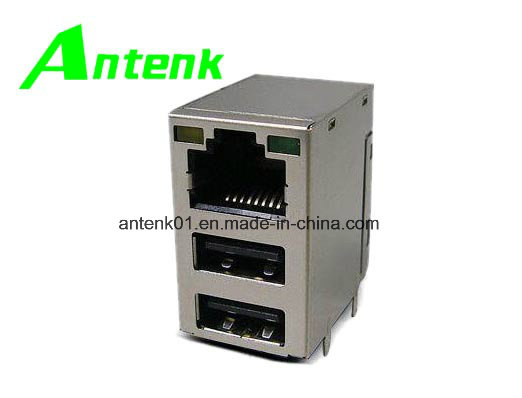

RJ45 Connectors with Magnetics and LED Light

Name: RJ45 Connectors with Magnetics and LED Light
Brand: all-electronics-online.com
SKU: 609257074
Availability: InStock
Rating: 5 (133 reviews)

Price:	US $ 0.5/Piece
Trade Terms:	FOB,FCA,EXW
Min Order:	500/Piece
Pay Type:	T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Modular Jack with Filter and -1.1dB Insertion Loss
Electrical specifications at 25º C
Turn ratio (+/-3%): TX and RX = 1CT: 1CT
OCL (100kHz/0.1V at 8mA): 350uh minimum
Ll (100kHz/0.1V): 0.3uh maximum
CWW (100kHz/0.1V): 30pf maximum
DCR (j1 to j2 and j3 to j6): 1.2 ohms maximum
Insertion loss: -1.1dB (0.3 to 100MHz)
Return loss: -18dB (1 to 30MHz), -12dB (30 to 80MHz) minimum

Cross talk: -35dB (1~100MHz)
CMR: -35dB (1~100MHz)
Hi-pot test: 1, 500V RMS/0.5mA/2sec
Operating temperature: 0 to +70º C
Ordering information:
MJKf4511-PA88GXS-l1
MJKF: Modular jack with filter
4511: Series number
PA: PCB type, right angle
88: Number of contact, 8P8C
GX: Contact plating option

GF: Gold flash
GFT: Gold flash on contact, tin plated on solder tail
G15T: 15u-inch gold on contact, tin plated on solder tail
G30T: 30u-inch gold on contact, tin plated on solder tail
G50T: 50u-inch gold on contact, tin plated on solder tail
S: Shielded without panel grounding tab
LED 1: Green
LED 2: Yellow

Prod Model:	RJ45 Connector series 005
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	FPC
Gender:	RJ45
