DESCRIPTION

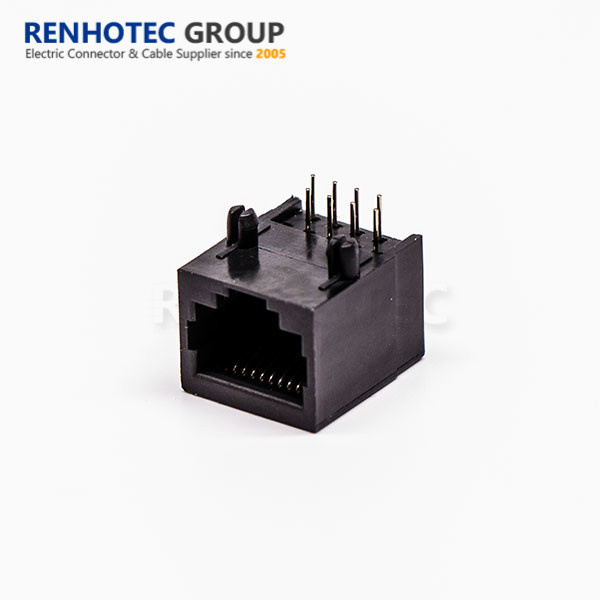

Magnetic jacks combine connectivity with signal conditioning, electromagnetic interference suppression and signal isolation. These parameters were previously performed by separate and discrete magnetic components mounted on the PCB board.
Available as single or stacked multiport options they are used in Data, Telecom, Networking and Home Entertainment markets for applications such as Servers, Hubs, Routers, Printers, Computers, Set Top Boxes and Digital TV's.
The demand for EDAC RJ45 Magnetic Jacks is increasing strongly as designers continue the quest for maximum optimisation of PCB real estate.
In addition to the benefit of removing certain components from the board itself, EDAC Mag Jacks will simplify and streamline the assembly process while continuing to provide minimal cross-talk and improved EMI Performance.
KEY FEATURES
The RJ45 range incorporates multiple options including single or multiple port configurations
- 10/100 or 1000 Base T options - full IEEE 802.3 compliance
- Tab up or Down options - complete design for board and unit compatibility
- Integrated Magnetics - provides signal integrity, DC isolation and PHY chip protection
- Integrated Design - reduces component inventory and process costs
- Spring fingers on shells - guaranteed advanced EMI/RFI suppression
- LED option available - visual indication of port status and activity information
- FCC Compliance: Part 68 Sub Part F
Specifications:
Materials
- Body - Thermoplastic, UL94VO Black
- Contacts - Phosphor Bronze
- Contacts plated - Gold plated over Nickel, Solder Tails Tin plated over Nickel
- Shield - Copper Alloy, Nickel Plated
Electrical
- Insertion Loss: -1.0 dB @ 100MHz (typical)
- Return Loss: -13.5 dB @ 100MHz (typical)
- Common mode reflection: @ 1-100MHz: -30dB (typical)
- Crosstalk: @ 1-100MHz: -35dB (typical)
- Inductance: @ 100KHz/0.1V, 8ma DC. Bias: 350uH Min.
