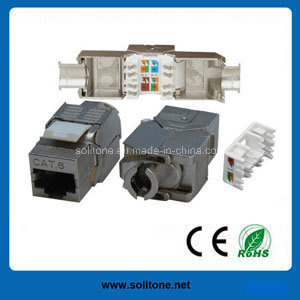

RJ45 FTP/STP Cat5e CAT6A Toolless Keystone Jack 180 Degree

Name: RJ45 FTP/STP Cat5e CAT6A Toolless Keystone Jack 180 Degree
Brand: all-electronics-online.com
SKU: 809426905
Availability: InStock
Rating: 4.9 (23 reviews)

Price:	US $ 0.1-2/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ST-CAT6-KJ18-S-1
Price:	Top Quality
Quality:	Use
Ce/RoHS:	Jack
180 Degree:	RJ45

Product Description

We are specialized in producing LAN cable, patch panel, keystone jack, patch cord, cable management, modular plug, faceplate, network cabinet,PDU and much more since 2000

Shielded/Unshielded Keystone Jack (CAT7/CAT6A/CAT6/CAT5E/CAT3)

1. All of products we offer are top quality and competitive price;

2. If there is no special explanation, all of our Brand are SOLITONE or OEM;
3. Payment: We accept T/T and L/C and Western Union ;
4. Packing:
1) Inner packing: 1pcs/plastic bag
2) Outer packing: Carton box, pull box.
3) Other packing available according to client's request.
5. Any question, Please contact us in first time. We'll reply as soon as possible.

Specifications:
1.Meet all requirement category 6 performance standards
2.Exceeds all ANSI/TIA/EIA 568B
3.2 to 10 category 6 and class EA component standard requirement at swept frequency up to 500MHz

Features:
1.Available in Cat6, T568A/B wiring schemes, meet or exceed TIA/EIA Cat6A requirement
2.Shielding protects against EMI/RFI interference
3.Compact jack design, 8 positions and 8 conductors
4.Contact: Phosphor bronze, phosphor bronze with 6 to 50μ Inches gold plate
5.Accept 22 to 26AWG solid with a insulation diameter of 0.4 to 0.6mm
6.Easy to be terminated, extremely low attenuation loss and high-return loss
7.High-reliability and superior performance
8.Compatible for both T568A and T568B wiring schemes
9.Fully automatic production of PCB assembly to ensure production consistency
10.Fully automatic quality inspection for highest quality assurance
11.Guided wire pre-sorting technology to help ensure proper installation
12.User-friendly IDC design to separate twisted-pair wires easily
13.Compatible for 24-port applications in 1 unit height
14.Designed to easily snap in and out of wall outlets, patch panels and surface boxes
15.Providing a faster and easier way to terminate all wires without punch down tool

Marketing Under "Solitone" Brand

Shenzhen Leo Network Technology has 14 years of experience in supplying network communication products for various applications such as copper network cabling, fiber-optic, network cabinet, security cables and mini LAN SOHO systems to clients in the Americas, the Middle East, Africa, Asia, Western Europe and Australasia. Our products are well marketed under the brand "Solitone".

Daily Output of 560, 000 Meters

By utilizing 10 production lines and supported by 250 to 300 workers in our 16, 000sqm factory, we can turn out 560, 000 meters daily. To guarantee quality, we have nine to 14 QC auditors with an average experience of 13 years. They perform piece-by-piece inspections at each production level before delivery. We have an R&D team composed of five to nine engineers with an average experience of 10 years. They can produce customized items. To keep your option fresh, we release three to five new models per month.

Get a Reply within 24 Hours

Over 20 customers have been cooperating with us for over 10 years. Because we are highly committed to providing high quality, 95% of our customers place repeat orders with us. We are willing to support all developing companies, small or medium.

E-mail us today to know more. We will reply within one working day.
