| Prod Model: |
MSSC |
| Color: |
Gray |
| Diameter: |
14-54mm |
| Length: |
200-4500mm |
| Max Working Temperature: |
1500c |
| Usage: |
Furnace,Air,Vacuum etc |
| Package: |
Wooden Box |
| Delivery Time: |
7-10days |
| Sample: |
Avaiable |
| Size: |
Cusdomized |
| Product Name: |
Silicon Carbide Heating Element |
Product Description

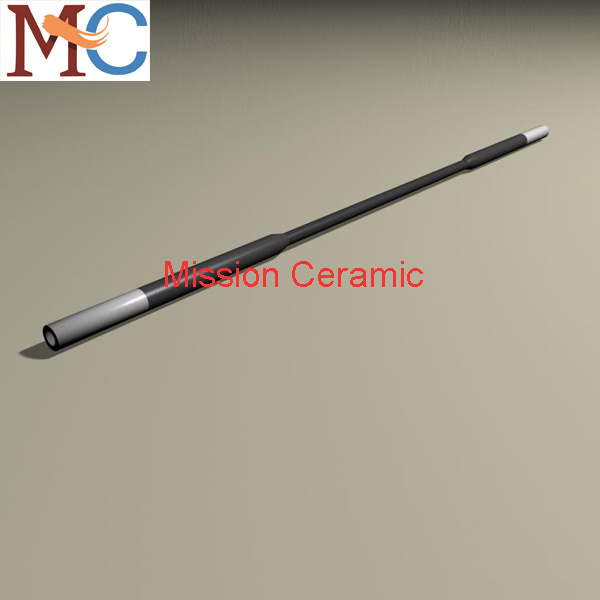

Rod Type SiC Supplier Silicon Carbide Heating ElementSilicon carbide Heating element sic heaters rod is our main product.Mission can supply high quality Silicon Carbide (SiC) heating elements.Silicon carbide SiC heating element Specifications
1. High working temperature: 1450C.
2. Long time last.
3. Varous type available. Rod, U, W.
Mission SiC Heating Elements Advantage . 1. High working temperature: 1500C (Surface Temperature)

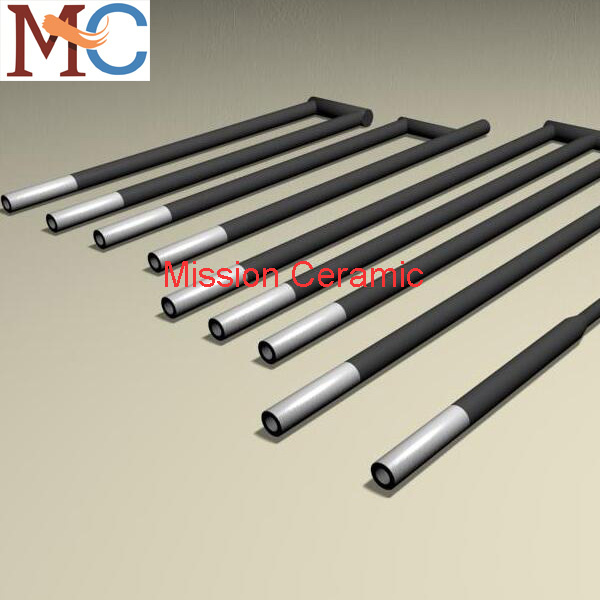

2. Various shapes: Rod, U, W ,UL,WLshapes are availible.
3. Large size range: Diameter 14-54mm, Length 200-4500mm.
4. Fast Delivery: Normal quantity can be ready in 10 days.
5. Very competitive prices.
Mission SiC heating elements Standard Sizes . | Diameter | Heating zone
Length | Cold zone
Length | Overall length | Range of resistance |
| 14mm | 100-500mm | 150-350mm | 400-1200mm | 0.7-5.6 ohms |
| 16mm | 200-600mm | 150-350mm | 500-1600mm | 0.7-4.4 ohms |
| 18mm | 200-800mm | 150-400mm | 500-1600mm | 0.7-5.8 ohms |
| 20mm | 200-800mm | 200-600mm | 600-2000mm | 0.6-6.0 ohms |
| 25mm | 200-1200mm | 250-700mm | 700-2600mm | 0.4-5.0 ohms |
| 30mm | 300-2000mm | 250-800mm | 800-3600mm | 0.4-4.0 ohms |
| 35mm | 400-2000mm | 250-800mm | 900-3600mm | 0.5-3.6 ohms |
| 40mm | 500-2700mm | 250-800mm | 1000-4300mm | 0.5-3.4 ohms |
| 45mm | 500-3000mm | 250-750mm | 1000-4500mm | 0.3-3.0 ohms |
| 50mm | 600-2500mm | 300-750mm | 1200-4000mm | 0.3-2.5 ohms |
| 54mm | 600-2500mm | 300-750mm | 1200-4000mm | 0.3-3.0 ohms |
Other sized SiC elements can be made according to your need!
How to Order Mission SiC heating element1. Choose the shape you need, like Rod, U, W, etc.
2. Out Diameter (OD)
3. Heating Zone Lengh (HZ)
4. Overall Length (OL)
5. Resistance you need.
Order Sample: Rod type, OD30mm, HZ300mm, OL800mm, Resistance 0.4ohms.
Mission SiC heating element is widely used in high temperatue furnaces, It can be used in air, vacuum and other protection gase enviroments.
I believe you will like our SIC heating elements.
Tips:
Customized production is available, for more information, please do not hesitate to tell me.
About Our CompanyZhengzhou Mission Ceramic Products Co.,Ltd is located in Zhengzhou City,Henan Provance. We have been focused on high quality ceramic products for years. We are providing the following materials.1.Alumina mainly 95% to 99.7% purity.2.Zirconia,including FSZ and PSZ, Y2O2-ZrO2,CaO-ZrO2,MgO-ZrO2 available.3.Silicon Carbide, including SiSIC,ReSiC,NSiC,SSiC.4.Boron Nitride(BN)5.Ceramic Fiber products,including board,blanket,and bulk fiber.6.Heaters,mainly Molybdenum Disilicide(MoSi2) and Silicon Carbide(SiC) heaters. For different ceramic part,we have different processing method,including Casting,Extruding,Tape Casting,Dry pressing and ISO pressing.If you are interest in any of our products,please let us know.I believe you will like our products and service.Zhengzhou Mission Ceramic Products Co., LtdNo.11 Zhengshang Road, Zhengzhou, Henan, ChinaTel: 86-371-56689683Mob:86-136-7369-5024Fax: 86-371-67103091Other Products
Zhengzhou Mission Ceramic Products Co., Ltd. Locates in Zhenzhou City, Henan Province, central part of China. We have been working in advanced ceramic and thermal industry since 2013.
Our products has been exported to more than 40 countries like USA, UK, Russia, France, Australia Korea etc. We win good reputation from customers because of good quality and service.
Our main products as bellow.
1. Alumina ceramic products, including tubes, rods, crucibles, plates, and other part made by your
Design.
2. Zirconia Ceramic products, including tubes, crucibles, plates and other parts as you need.
3. Silicon carbide ceramic products, includng beams, plates, tubes, crucibles etc.
4. Boron nitride ceramic products, including plates, crucible, and other parts as you need.
5. Alumina ceramic fiber products, including fiber, board, and other parts as you need.

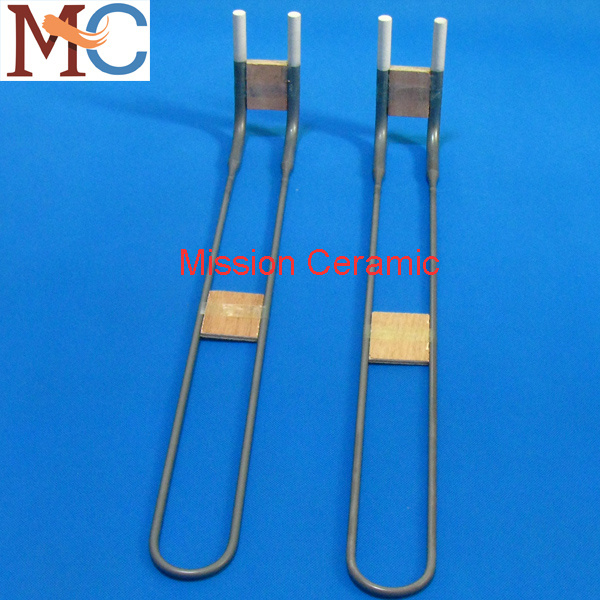

6. Heating elements, including MoSi2 heating element and MoSo2 heating element.
If you are intersted in any of our products, please contact with us. We will try our best to provide good products and sevice!
