RoHS Compliant Flexible Rogowski Coil Sensor/Current Transformer/ Current Probe
| Price: |
US $ 3.99-200.99/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T |

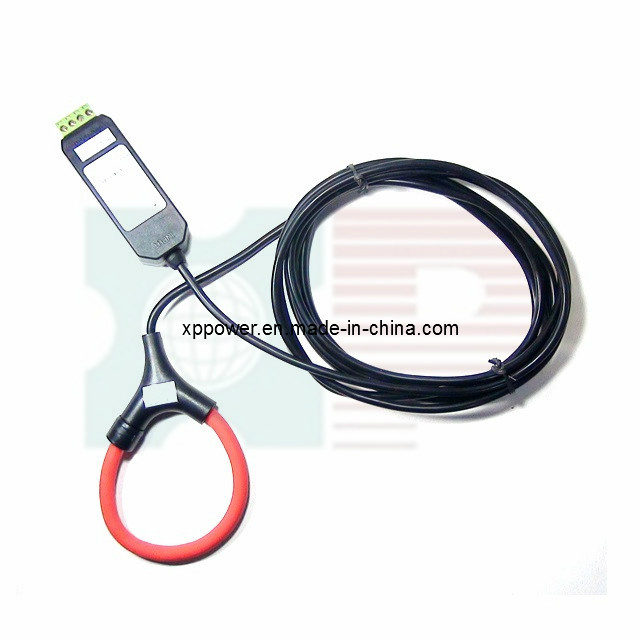

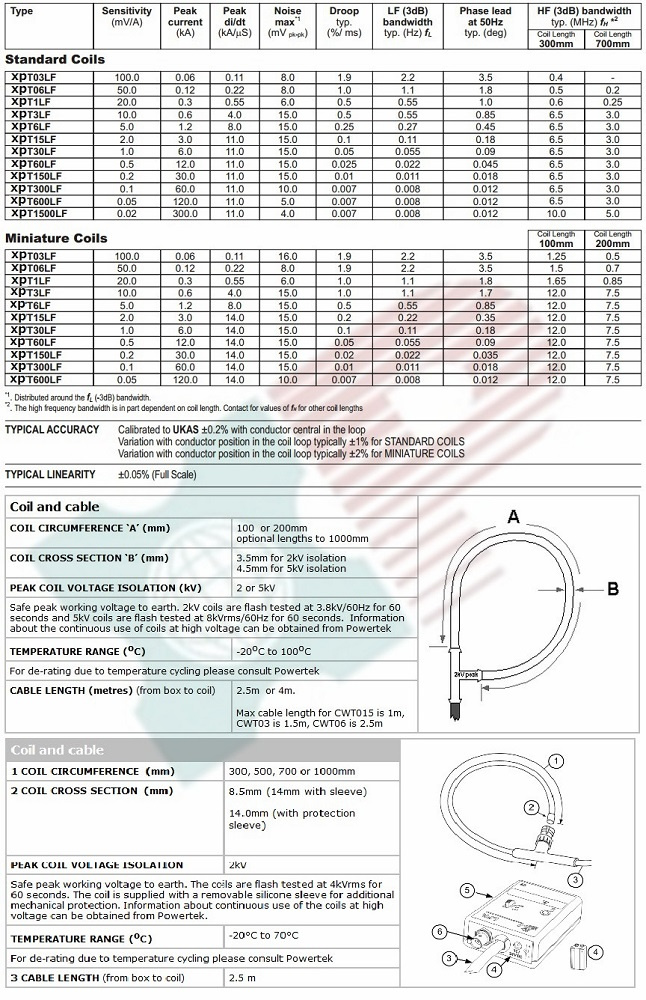

FCT is a flexible current probe which is suitable to conveniently measure single and three phase AC as well as pulsed DC currents. After appropriate signal conditioning, it can be used with digital multimeters, recorders and other suitable equipment to measure current from very low frequencies up to 1MHz.The probes comprise a flexible air cored sensor which can be opened, allowing them to be installed around a primary conductor without interrupting the circuit. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas with large conductors. Key Specifications/ Special Features:- Well qualified to the External Magnetic Field- Output: Digital Sensor- Usage: Consumption Sensor- Theory: Magnetic Sensor- Material: Metal- Diameter: 120/190/305 - Frequency range: 0 to 16MHz- Test current range: 1A to 100kA- Rated current: 500mA to 300,000A- Rated output (Full scale FS):1Vrms- Output limit: 300%FS- Operating temperature range:-25°C to +70°C- Bandwidth: 1Hz to 1MHz- Phase shift: 90±0.1 degrees- Accuracy: ±0.5% of reading- Temperature Sensitivity: 0.08% per °C- Insulation Temperature Level: Class E- Inherent Linearity Characteristics- More than 20KA for Linearity Excellence- Supreme rejection of AC external fields- Perfect Immunity to DC external magnets- Accurate linearity frequency response: up to 20kHz- Faster response times to fault- RoHS compliant- Insulation temperature level: Class E- Sample Price: Depending on the present product price- Delivery Time: 7-15 days after received your Purchase Order- Customized accepted Application:- Very high current monitoring- DC ripple measurement- Harmonics and transient monitoring- Power monitoring & control systems- Applicable in electronic Watt-hour meter- Ideal for precision protection and measurements- Suitable for ACB, VCB, GIS and welding machine- Monitoring current waveforms for semiconductor switches- Development and servicing of power electronic equipment- Monitoring high frequency sinusoidal currents- Measuring fault currents or circuit breaker interruption currents- Measuring pulses of current- Measuring AC currents superimposed on large DC currents- Measuring harmonic current components- Measuring signal or earth leakage currents in 3-phase supply systems
Reasons of our top-quality components help your business succeed:-22 years of experience customizing-Your professional and reliable partner for various electronics- Over 1000 buyers value our products-20000m2 factory with 21 production lines and 800 employees- 5 million units annual capacity-XP can provide a full range of system solutions for the global users Browse our online showroom, and contact us with your OEM/ODM specifications. Our operators are waiting your calls and E-mail.
| Prod Model: |
XPT Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Phase: |
1/2/3 |
| Type: |
Current Transformer |
| Application: |
Electronic, Instrument, Position Sensor, Audio, Lighti |
XP Power that was established in 1992 is a manufacturing, integrating research & development, trading company, supply as a whole. The company is one of the world's leading developers and manufacturers of power transformers, power inductors, choke coils, high frequency transformers and reactors solutions for the electronics industry with specialists who are versed in all the technical and legislation requirements. The products of XP Power are stable quality, full range of variety, prompt delivery, competitive price so that they are applicable in new energy, communication facilities, UPS power, household appliances, Medical instrument, monitor, automotive electronics and so many other fields. After over a dozen of years' development, the company has complete quality management system, scientific technology research and development system and good service team. And now XP Power has fixed assets to the value of USD 60 million and six hundred employees and three factories located in Foshan, Hefei and Xi' An. The company has an annual production capacity of 50 million PCS. Our main market is Europe, North & South America, Middle East and Asia.
The company is equipped with advanced manufacturing equipment and testing apparatus as well as a R&D center comprised by various technicians, which can offer different customers different new products according to customers' needs, developing and researching more new projects. Our company always adheres to the high quality and technological innovation. In the process of production the rigorous quality inspection standards and inspection technique are used in order to realize the total quality management from the incoming inspection, process inspection, to the outgoing inspection, which guarantee the high quality. The quality of our products recognizes by some authorities and gets all sorts of world-class certification, such as ISO9001 and ISO14001, etc. Our products are RoHS and REACH compliant.
XP Power supplies its products to 30 countries across the globe. Every year, over 30 million coils are wound, over 20 million high frequency transformers are manufactured, and thousands of modules are mounted.
