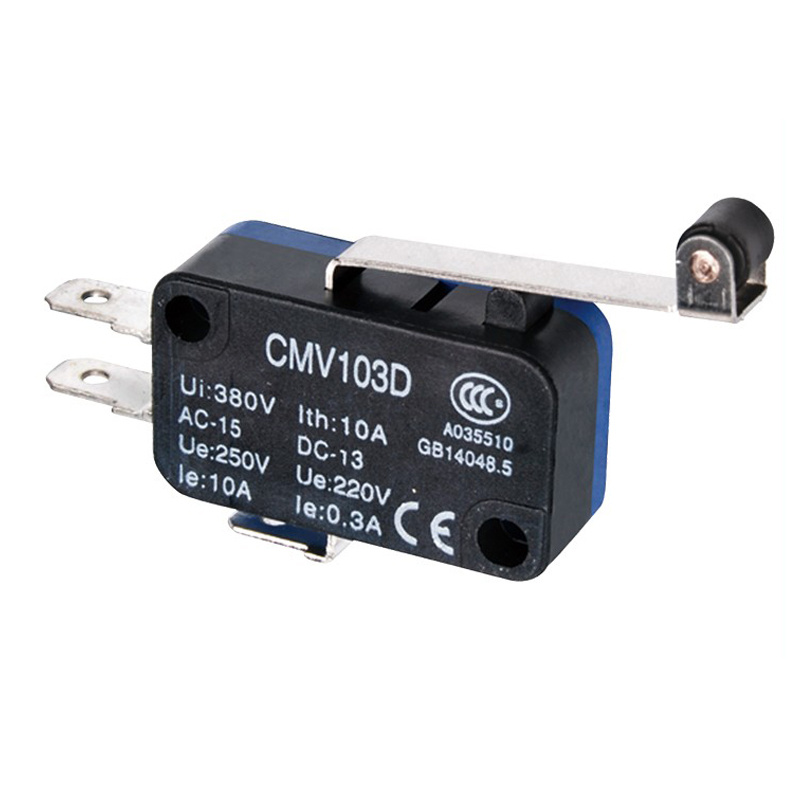

Roller Micro Switch Cmv103D

Name: Roller Micro Switch Cmv103D
Brand: all-electronics-online.com
SKU: 834830895
Availability: InStock
Rating: 4.6 (67 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Various actuators and terminal types are available for choice
Fast action,long life,reliable and stabilize
Various rating are available for choice
CE,CCC, TUV approval
Compact design

Item	Code	Description
Rated Current	10	10A
	16	16A
	21	21A
Actuator	0	Button type
	1	Long handle type
	2	Short shank type
	3	Long pulley type
	4	Short pulley type
	5	Longer handle type
	6	Crank type
Terminal specifications	C	#250 terminal
Terminal specifications	D	#187 terminal
For example: CMV100D, 10A, button type with #187 termnials

Prod Model:	CMV103D
High Switch Current:	10A
Contact Form:	No/Nc
Max Voltage:	AC/DC 250V
Life:	10,000,000
Pressing Type:	Push-Button
Protection:	Waterproof
Size:	Small-Sized
Breaking Capacity:	High-Current
Breaking Form:	Multi Joint Type
Environment:	Micro Switch
Brand:	Deson
