Rotary Potentiometer Factory Price B50k, B10k for Mixer Amplifier Audio Quipment

Name: Rotary Potentiometer Factory Price B50k, B10k for Mixer Amplifier Audio Quipment
Brand: all-electronics-online.com
SKU: 683886782
Availability: InStock
Rating: 5 (20 reviews)

Price:	US $ 0.1/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

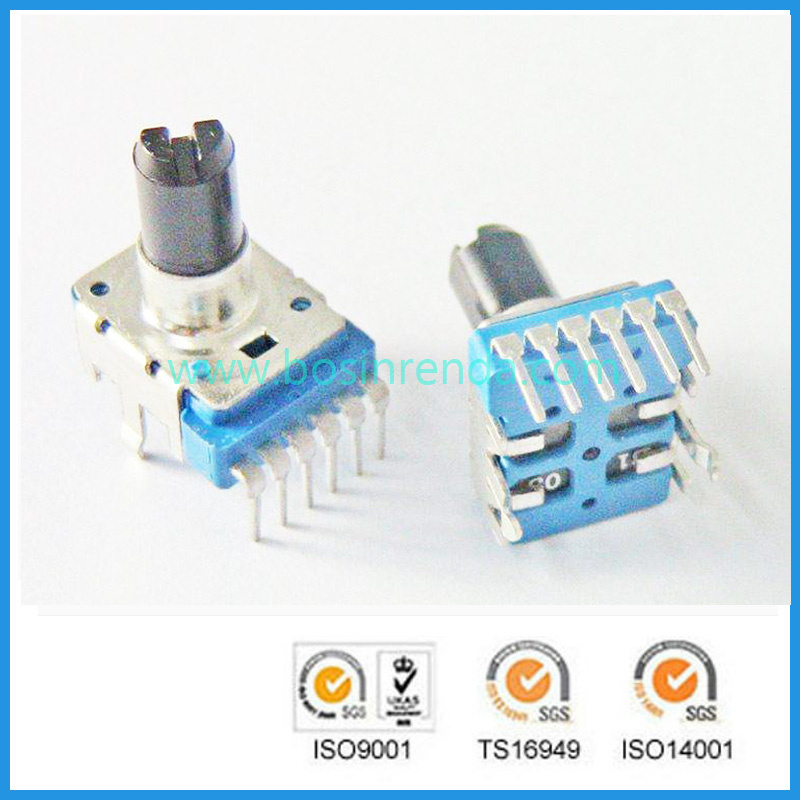

Potentiometer, rotary potentiometers, 11mm Rotary potentiometer, plastic shaft potentiometers, audio potentiometers

Bosin electronics is a manufacturer specializing in rotary encoders, potentiometers and switches. Our company passed ISO9001, ISO14001, ISO/TS16949.

Best price with stable quality for 11mm rotary potentiometer.

This type potentiometer mainly use on mixer, amplifer, audio equalizer, radio and interphone

Please check below specification.

1.Mechanical characteristics
1.1 Total Rotational Angle:	300°±10°
1.2 Rotational Torque:	20~100 gf.cm
1.3 Stopper Strength:	3.0Kgf.cm Min
1.4 Push-Pull Strength:	Pull: 8Kgf Max; Push: 8Kgf Max
1.5 Click Torque:	50gf.cm~180gf.cm
1.6 Detent:	1(Center) detent
2.Electrical characteristics
2.1 Total Resistance:	1KΩ~1MΩ
2.2 Resistance Tolerance:	±30%
2.3 Resistance Taper:	A,B,C
2.4 Max. operating Voltage:	AC 50V, DC 20V
2.5 Rated Power:	0.05W /0.025W
2.6 Rotational Noise:	100 MV Max
2.7 Insulation Resistance:	More Than 100MΩ at DC 250V
2.8 Withstand Voltage:	1 minute at AC 300V/500V
2.9 Residual Resistance:	20Ω Max
3.0 Gang error:	40db~0db±3db
3.Durability
3.1 Rotational Life:	10,000 Cycles Min.
3.2 Working Temperature:	-10°C~70°C
3.3 Storage Temperature:	-30°C~70°C

Prod Model:	RP11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
RoHS:	100%
Certificate:	ISO9001, ISO14001, Ts16949
Shipping:	Via Express, by Air, by Sea
Produce Capacity:	50kpcs Per Day
Resistance:	Variable Resistor
Function For Resistance:	Load Resistor
Installation:	DIP Resistor
Material:	Carbon Film Resistor
Type:	Rotary Potentiometer
Package Type:	Plastic Box, Carton
Brand:	BS

Bosin Electronics Ltd is invested by Bosin holdings which established in 2006.

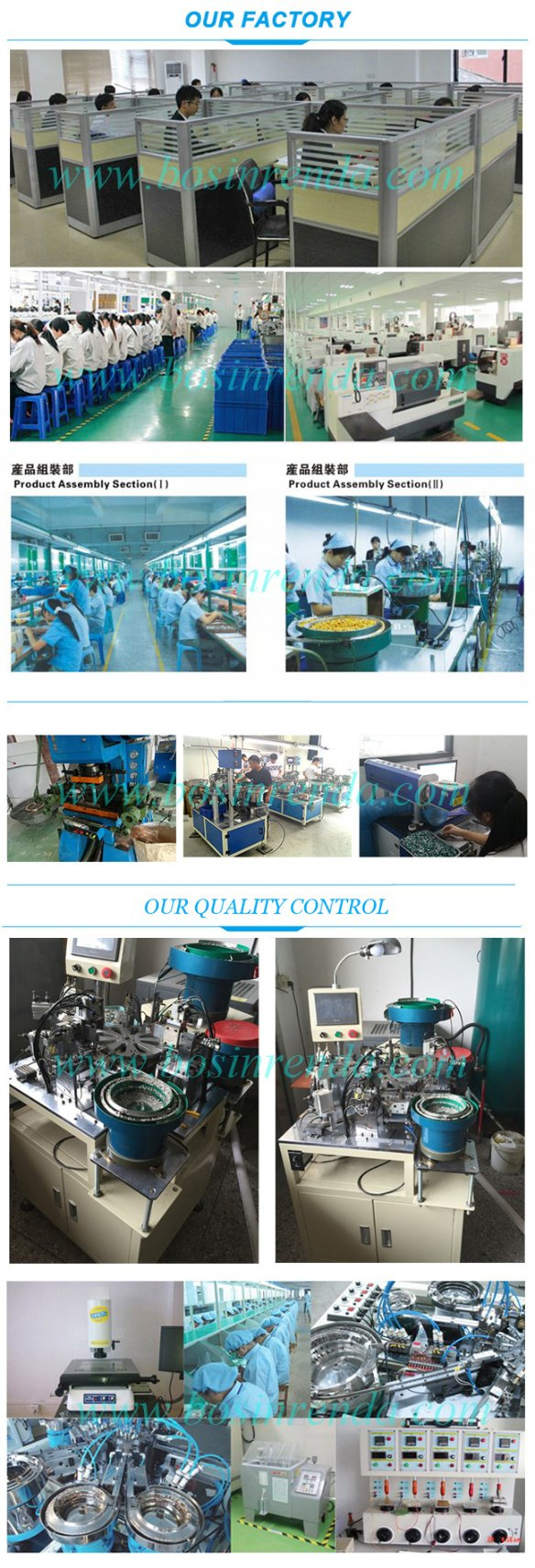

The copmany specializing in designing and manufacturing potentiometer, encoder, switch and DC motors. Now our company factory area is about 10000 m2, employees more than 600 persons and technicians more than 60 persons. And we all staffs have strived for five years to build up a set of completely production flow including of developing new product, mould manufacture, spare parts or components manufacture, finished product assembly. We build up a good image of " Bosin" in our field and the products already accepted by LG, PHILIPS, SANYO, BBK, Malata, etc. For a long time.

After decade of efforts, the Bosin products have been sent to over 100 countries, including rotary potentiometers, slide potentiometers, trimmer potentiometers, super-thin potentiometers, encoders and rotary switches, widely applied to computer/multimedia peripherals and various industrial fields. All products are RoHS compliant. For further improving the compatibility and making effort to our quality policy of "Keep Improving, Quality Assurance", the Bosin takes most advanced management mechanism and technologies that including computerized jigs and dies design, automatic assembly facilities and so forth. Now, the Bosin has the capability of producing over 1200 different kinds of hardware, 16 series with about 240 models of potentiometer to meet most of the requirement of the potentiometer market.

The Bosin has passed the certificate of ISO 9001-2000, ISO 14001-2004, TS16949, this assures to satisfy our clients with best quality of products and services. Now, the Bosin is devoting all its efforts to become the top of the potentiometer manufacturer in China.
