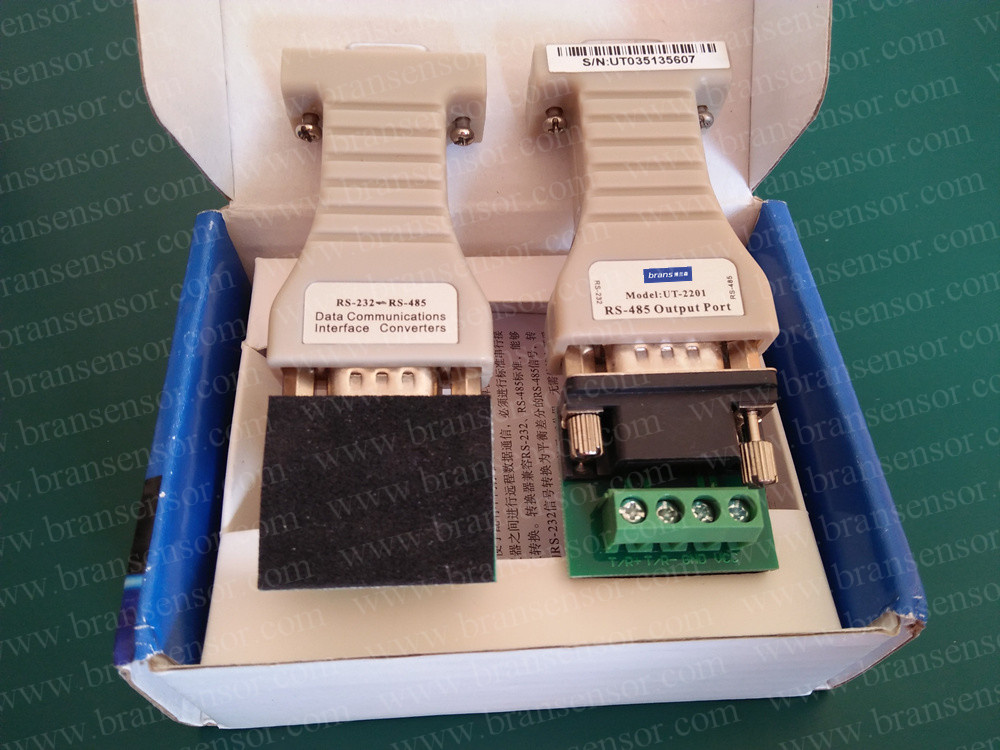

RS232-RS485/422 Optoelectric Converter
| Price: |
US $ 60/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
1. Name: RS232-RS485/422 Optoelectric Converter(BX001)
2. Functions:interface converters
opto isolation products
line drivers
repeaters & boosters
lighting & surge Protectors3. Data sheet| nterface feature: |
Port compatible with EIA / TIA RS-232C, RS-485/RS-422 standard |
Electrical Interface: |
RS-232C interface DB9 hole connector, RS-422/RS-485 interface four terminals,power interface two terminals |
Transmission media: |
Twisted pair or shielded wire |
Working mode: |
Asynchronous half-duplex or full-duplex asynchronous |
Signal indication: |
Three signal lights indicate TXD, RXD, and POWER |
Isolation: |
Isolation voltage 1500VRMS, 2000VDC continuous |
Transfer rate: |
115.2K BPS to 300M; 38.4K BPS to 2.4KM; 9600 BPS to 5KM |
Degree of protection: |
RS-232 interface +15 KV ESD protection, RS-422/RS-485 interface each 600W lightning surge protection |
Transmission distance: |
0-5 km (115200-300BPS) |
Operating environment: |
-25 ° C to 70 ° C, relative humidity: 5% to 95% |
Size: |
115mmx72mmx25mm |
Supply voltage: |
DC9-36V |
Mounting: | fixing holes |
Ingress Protection: |
Ip60 |
4. KEY FEATURESA, the input range is wide, 0.4 ~ 6mV / V can be connected with most of the strain bridge sensor
B, the load capacity can be connected with four 350Ω sensor
C, the use of imported electronic components, high response frequency, long-term stability
Integrated accuracy of ± 0.05% FS
D, input power reverse polarity protection and output short circuit protection
E, power supply 16 ~ 30VDC (recommended 24VDC) or 12 ~ 24VAC
F, suitable for pressure tensile pressure torque tension and other strain bridge sensorsThe analog sensor signal is amplified, filtered, converted by the analog-to-digital converter to digital. Digital measurement signal and then processed by the microprocessor, through the RS232 serial port transmission. The parameters are stored in the CPU, power loss is not lost.
If you need special data accqusition system, please let me know freely. We will do our best for this.
www.bransensor.com
| Prod Model: |
BX001 |
| Combined Accuracy: |
0.05% |
| A / D Conversion Speed: |
5000 Times/Sec(18bit) |
| Measured Value Output Speed: |
400Hz(Times / Sec) |
| Output: |
0-5V, 0-10V, 4-20mA |
| Display Type: |
Screen |
| Accuracy Grade: |
0.00001g |
| Certification: |
SGS |
