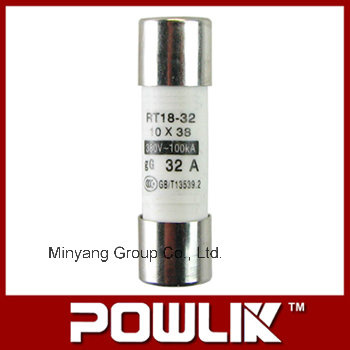

RT18 Thermal Cylindrical High Speed Fuse Link (RT19)

1.Application

1) High Speed Fuse Link make of pure copper strip ,pure quartz sand and high strength china

2) High Speed Fuse Link protection of circuits against overload current and short-circuit current

3) High Speed Fuse Link has advantages of flexibility, excellent property, convenient installation, long-term running without fault and long service life.

4) High Speed Fuse Link has advantages of flexibility, excellent property, convenient installation, long-term running without fault and long service life.

5) High Speed Fuse Link easy installation and maintenance. The terminal of fusant contacting with the end-plate (or the connecting plate) use the technology of spot welding

6) High Speed Fuse Link can offer overcurrent protection to the equipment which is easy to damage caused by system over-voltage or fault condition.

7) OEM service are available

2.Technical

Type	Rated voltage	Rated current (A)		Rated breaking capacity		Rated power dissipation of fuse-link(W)	Weight of holder(g)	Weight of fuse-link(g)
Type	Rated voltage	Holder	Fuse-link	11kA	cos φ
RT18-32	400	32	2,4,6,8,10,12,16,20,25,32	100	0.1-0.2	≤3	82	8
RT18-63		63	2,4,6,8,10,12,16,20,25,32,40,50,63			≤5	206	20
RT18-32		32	2,4,6,8,10,12,26,32			≤3	82	8
the outline size of the fuse kink see the following map and table
Type	Size	L	C	H
Rt18-32	10×38	38±0.6	10.3±0.1	10.5
RT18-63	14×51	51-0.6+0.1	14.3±0.1	13.8
RT18-32	10×38	38±0.6	10.3±0.1	10.5
the outline installation size of the holder of the fuse
Type	A	B	C	D	E	F	G
Rt18-32	63	60	79	35	80	18	54
RT18-63	78	76	103	35	110	25	75
RT18-32	70	67	78	35	88	18	54

Prod Model:	RT18-32
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current:	2A-63A
Rated Voltage:	300V
Size:	10*38
Breaking Capacity:	High
Type:	Resettable Fuse
Usaga:	Low Voltage
Standard:	IEC
