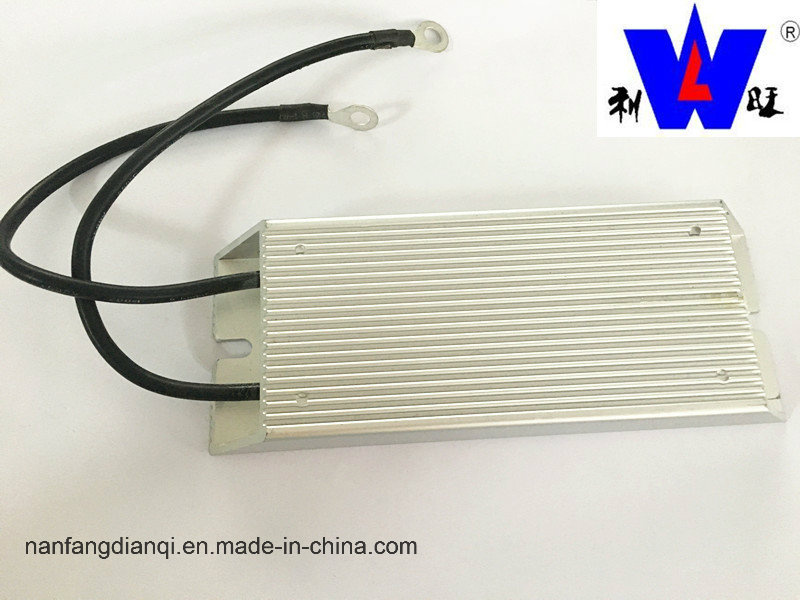

Rx18 Type Aluminum Shell Wire Wound Resistor with High Power

Name: Rx18 Type Aluminum Shell Wire Wound Resistor with High Power
Brand: all-electronics-online.com
SKU: 825432185
Availability: InStock
Rating: 4.8 (149 reviews)

Price:	US $ 0.5-15/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RX18
Environmental Certification:	ISO14001
Quality Certification:	ISO9001: 2008
Tolerance:	5%,10%
Color:	White
Resistance:	Fixed Resistor
Function For Resistance:	Protective Resistor
Installation:	DIP Resistor
Material:	Metal Film Resistor
Package Type:	Surface Mount
Type:	Humidity Sensitive Resistor
Brand:	Liwang

Product Description

Product description of Rx18 Type Aluminum Shell Wire Wound Resistor with ISO9001
High voltage resistor
1.RoHS compliant&ISO9001(2008);
2.Specilized resistor manufacturer

Features:
Heat and flame resistant
Completely insulated character suitable for printed circuit board
Winding core replaced by metal oxide film cutting core (RS type) for high resistance value
Non-inductive type available on request

Resistance tolerance

F	±1%
G	±2%
H	±3%
J	±5%
K	±10%

Characteristics :
Temperature coefficient: +/-300ppm/oC
Insulation resistance: >100M ohms
Load life (1000 hours): +/-2%, +0.05 ohm
Short-time overload: +/-2%, +0.05 ohm
Dielectric withstanding vollage: +/-1%, +0.05 ohm
Moisture resistance: +/-3%, +0.05 ohm
Shock and vibration: +/-1%, +0.05 ohm
Soldering heat: +/-1%, +0.05 ohm
Incombustibility: EX 16 times V, 5 minutes

Advantage of our company:
1. Competitive price
2. High stability and high quality
3. Prompt shipment
4.quick response to the needs of our customers
5.professional & experienced management team

Selling point of our company:
1)prompt delivery
2)variety of packing: Bulk and carton
3)stable performance, extensive resistance
4)factory direct price
5)none forbidden
6)all materials&machines importer from holand

We aren't just selling good products, but also offering integrated service! Please contact us for more information. Thanks!

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment"
